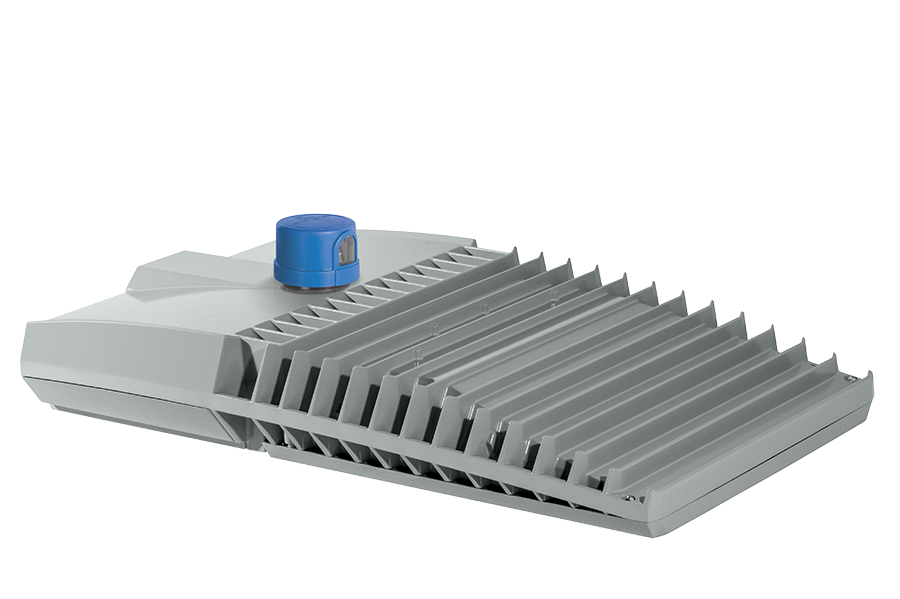

TBLED2T240RG/480/D10/7PR
TBLED2T240RG/480/D10/7PR
- IP66 Rated
- Industry-leading 5G vibration rating per ANSI C136.31
- 100,000-Hour LED lifespan
- 10-Year, limited warranty
Performance
| Watts | 240W |
| Color Temp | 5000K (Cool) |
| Lumens | 27,447 lm |
| Efficacy | 119.1 lm/W |
| Color Accuracy | 70 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 230.5W |

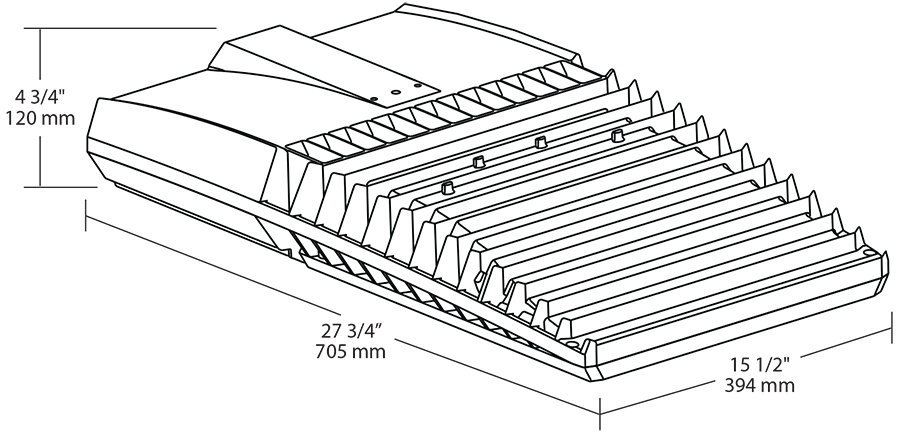

Dimensions
Weight: 39.8 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60 Hz, 480V: 0.5A
THD
7.9% at 480V
Power Factor
96% at 480V
7-Pin Receptacle
ANSI C136.41 7-pin receptacle
Surge Protection
10 kV
