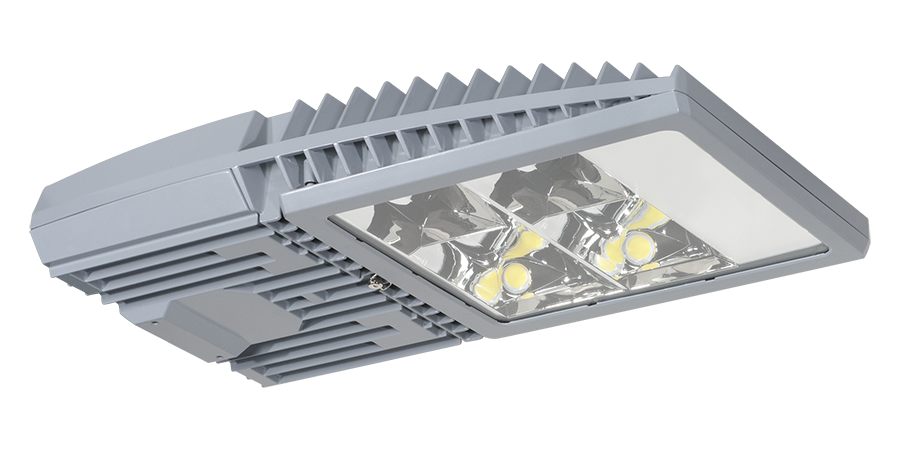

TBLED4T150NRG/D10/7PR
TBLED4T150NRG/D10/7PR
- IP66 Rated
- Industry-leading 5G vibration rating per ANSI C136.31
- 100,000-Hour LED lifespan
- 10-Year, limited warranty
Performance
| Watts | 150W |
| Color Temp | 4000K (Neutral) |
| Lumens | 19,368 lm |
| Efficacy | 125.6 lm/W |
| Color Accuracy | 71 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 1.2A |
| 208V | 0.88A |
| 240V | 0.76A |
| 277V | 0.66A |
| Input Watts | 154.2W |
Dimensions
Weight: 39.2 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60 Hz, 120V: 1.2A, 208V: 0.88A, 240V: 0.76A, 277V: 0.66A
THD
7.8% at 120V, 14.1% at 277V
Power Factor
99.4% at 120V, 95.4% at 277V
7-Pin Receptacle
ANSI C136.41 7-pin receptacle
Surge Protection
10 kV
