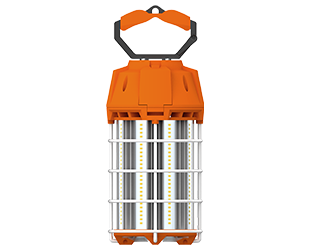

TEMP-150-850/35CP

Spec Sheet IES File LM79 Instructions FCC Caution Spec Sheet EZ Layout

TEMP-150-850/35CP

Impact resistant, can handle demanding construction site environments

Omni-directional light distribution

Lightweight design with high output

US Cord and Plug

IP64 Water and Dust resistant

6kV surge protection built in

50,000 hour Lifespan

5 Year No Compromise Warranty

View Technical Specs

View Price & Availability

Performance

Watts	150W
Color Temp	5000K
Lumens	18,000 lm
Efficacy	120
Color Accuracy	80 CRI
L70 Lifespan	50,000 Hours

Input Voltage	120V
Power Factor	>0.9
Flicker	<30%
THDi	<20%

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 6.8 lbs

Technical Specifications

Performance

Product Type

LED temporary High Bay

Input Wattage

150W

Lumens

18,000lm

Efficacy

120lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Compliance

UL Listed

Suitable for damp locations

Enclosed Fixtures

Suitable for use in enclosed fixtures

LED Characteristics

Color Temperature

5000K

Color Accuracy (CRI)

>80 CRI

Beam Angle

360°

Electrical

THD

<20%

Power Factor

>0.9

Dimmable

Yes

Flicker

<30%

Operating Temperature

-30°C to 60°C

Input Voltage

120V

Operating Frequency

60 Hz

Construction

Shape

Work light

Endcap Material

Metal

Enclosure Material

Constructed from frosted, shatter-resistant polycarbonate

Installation

Cord & Plug

US Plug, 6 ft cord

Installation Orientation

Vertical

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
