TICYY
TICYY
- Continuous band of flawless light output with no pixelated hot spots - even without a lens
- Field-cuttable every 1.97" for shorter runs with a max run of 32ft. Can be linked with connectors (sold separately)
- Easy installation to most surfaces by using pre-attached 3M® double-sided tape
- Available in Static White 2700K, 3000K, 4000K, or Dim-to-Warm (3000-1800K)
- 60W & 96W Indoor or outdoor rated drivers available (sold separately)
- 50,000-hr rated life, Title 24 Compliant, and 5-year limited warranty
Performance
| Watts | 2.5 W/FTW |
| Color Temp | |
| Lumens | 203lm/ft lm |
| Efficacy | 81 |
| Color Accuracy | 2700K CRI |
| L70 Lifespan |
| Type | Constant Voltage |
| 120V | 6 mA/chip |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 2.5 W/ftW |

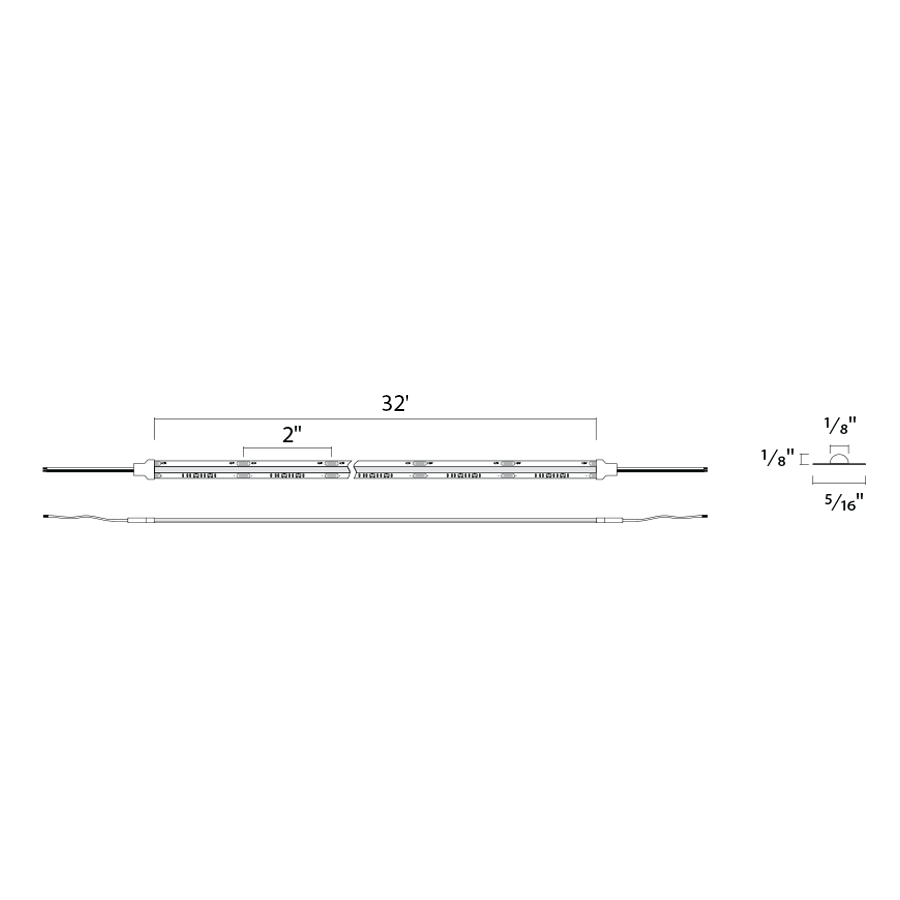

Dimensions
Weight: 0.5 lbs
Technical Specifications
Performance
Product Type
No-Pixel COB Tape Static White Damp Rated
Description
ARCTAPE is a flexible COB tape with a continuous band of flawless light output with no pixelated hot spots - even without a lens.
Input Wattage
2.5 W/ft
Lumens
208lm/ft±10%
Efficacy
81lm/W±10%
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Dimmable
PWM Dimming Signal, dimmable down to .1% with LED Driver (sold separately)
Input Voltage
DC24V
Operating Temperature
-4°F to 113°F (-20°C to 45°C)
LED Characteristics
Beam Angle
150°
Color Temperature
2700K
Color Accuracy (CRI)
90 CRI
Color Changing
No
R9 Value
High color performance with R9 greater than 50
Certification Model Number
<5-step (2700K & 5000K);<7-step (3000/3500/4000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Installation
Field Cuttable Increment
Cuttable every 1.97"
Mounting
Easy installation to most surfaces by using pre-attached 3M® double-sided tape
Construction
Length
32.8 ft
Light Source
COB LED White
Material Construction
Super-flexible bending, ultra-thin appearance, premium wall structure, & thick copper to ensure consistancy in voltage and brightness.
Light Effect
Continuous band light output with no pixelated hot spots
Compliance
Listings
UL2108
IP Rating
IP20
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Field Wiring Accessories
TJ2
2-Pin indoor connector kits
2-Pin indoor connector kits
Mounting Accessories
TAP12
12mm wide aluminum channel kits
12mm wide aluminum channel kits
Compatible Drivers
TID-60
Indoor 60W driver
TID-96
Indoor 96W driver
TOD-96
Outdoor 96W driver
Indoor 60W driver
TID-96
Indoor 96W driver
TOD-96
Outdoor 96W driver
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
