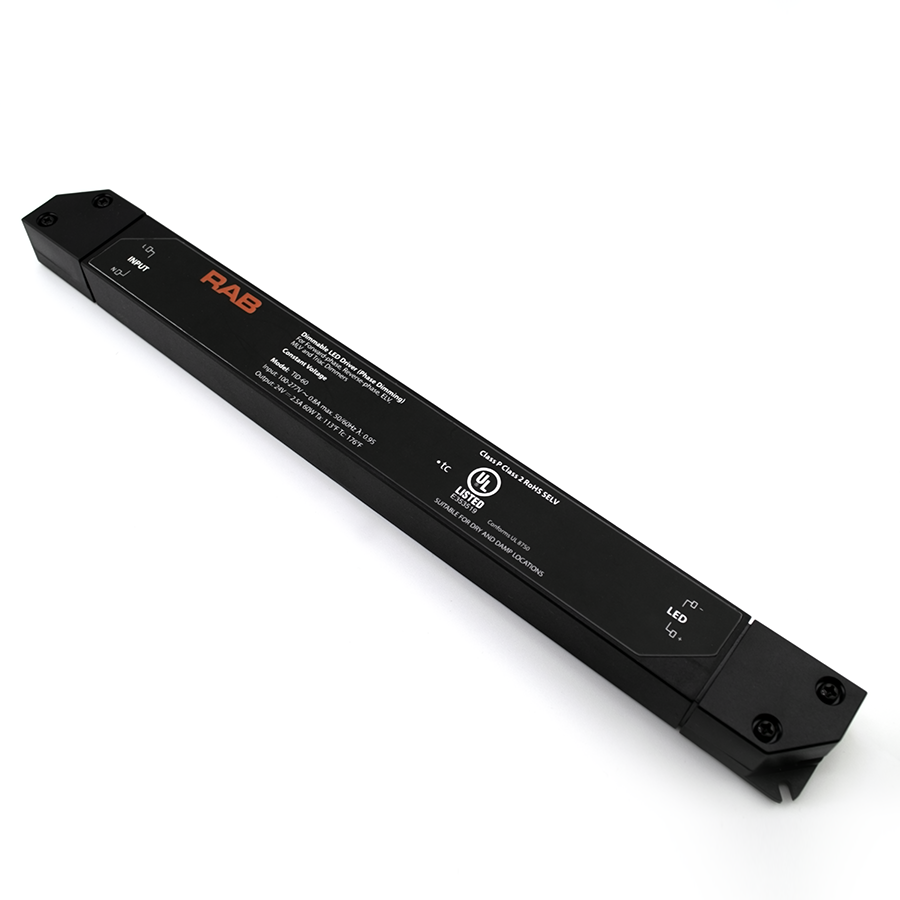

TID-60

Spec Sheet Instructions Sell Sheet Folleto (Español) Family Spec Sheet Spec Sheet

TID-60

120-277V Universal input voltage

Phase dimmable, TRIAC/ELV

0.1% Performance dimming, dim-to-dark>Indoor Rated

UL Listed and Title 24 JA8 Compliant

5-year limited warranty

View Technical Specs

View Price & Availability

Performance

Watts
Color Temp
Lumens
Efficacy
Color Accuracy
L70 Lifespan	50,000 Hours

Type	Constant Voltage
120V	0.8A
208V
240V
277V
Input Watts

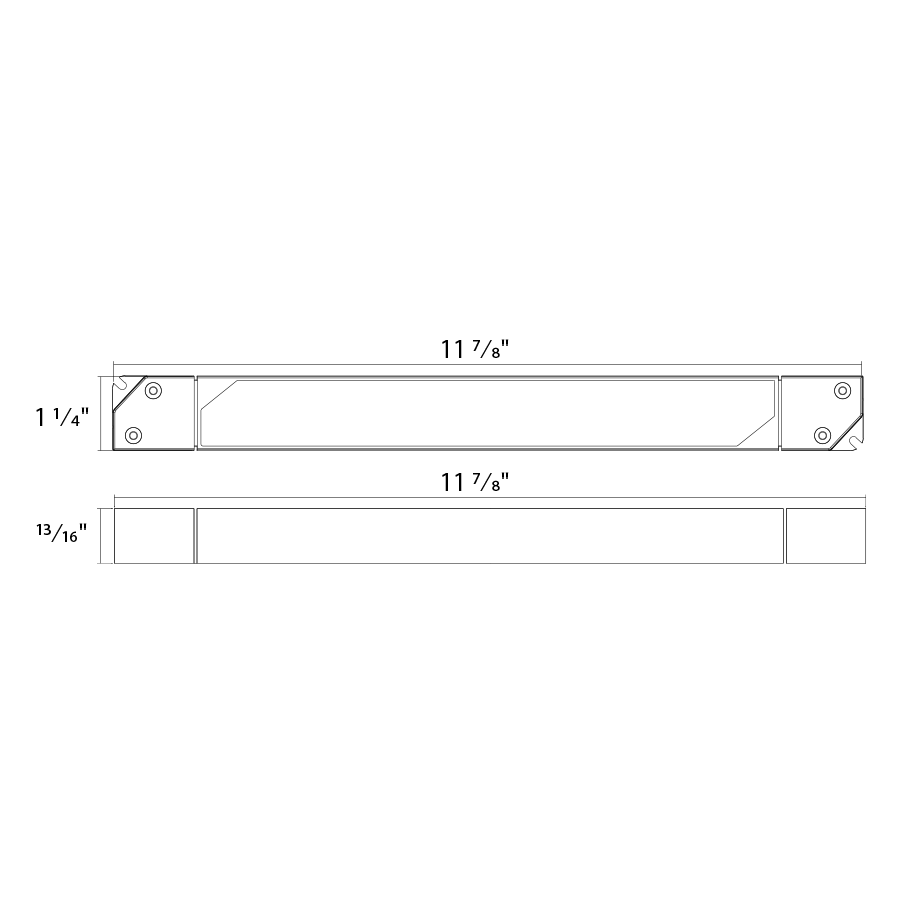

Dimensions

Weight: 0.6 lbs

Technical Specifications

Performance

Product Type

LED Tape Light Linear Driver Damp Rated

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Power Factor

0.95

Dimmable

Yes, dimmable down to 0.1% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Input Voltage

DC24V

Output Power

60W Max

Output Voltage

24VDC

Output Current

2.5A

Operating Frequency

47-63Hz

Operating Temperature

-4°F to 113°F (-20°C to 45°C)

Construction

Material Construction

Dedicated line voltage and low-voltage wiring compartments. Multiple 7/8" knock-outs for easy wire configuration.

Compliance

Listings

UL Listed

Environment

Suitable for use indoors in dry and damp environments.

IP Rating

IP20

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6.

California Energy Commission (CEC) Status

Lawful for Sales in California

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Other

Compatible Products

Compatible with the following ARCTAPE products: TICYY, TICY, TICYN, TICN, TICCW, TICLYY, TICLY, TICLYN, TICLN, TICLCW, TICHYY, TICHY, TICHYN, TICHN, TICHCW, TIC/DW Compatible with the following FLEXTAPE products: TOSYY, TOSY, TOSYN, TOSN, TOSCW, TOSLYY, TOSLY, TOSLYN, TOSLN, TOSLCW, TOSHYY, TOSHY, TOSHYN, TOSHN, TOSHCW Compatible with the following NEOFLEX products: TNFYY, TNFY, TNFYN, TNFN, TNFLGY

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
