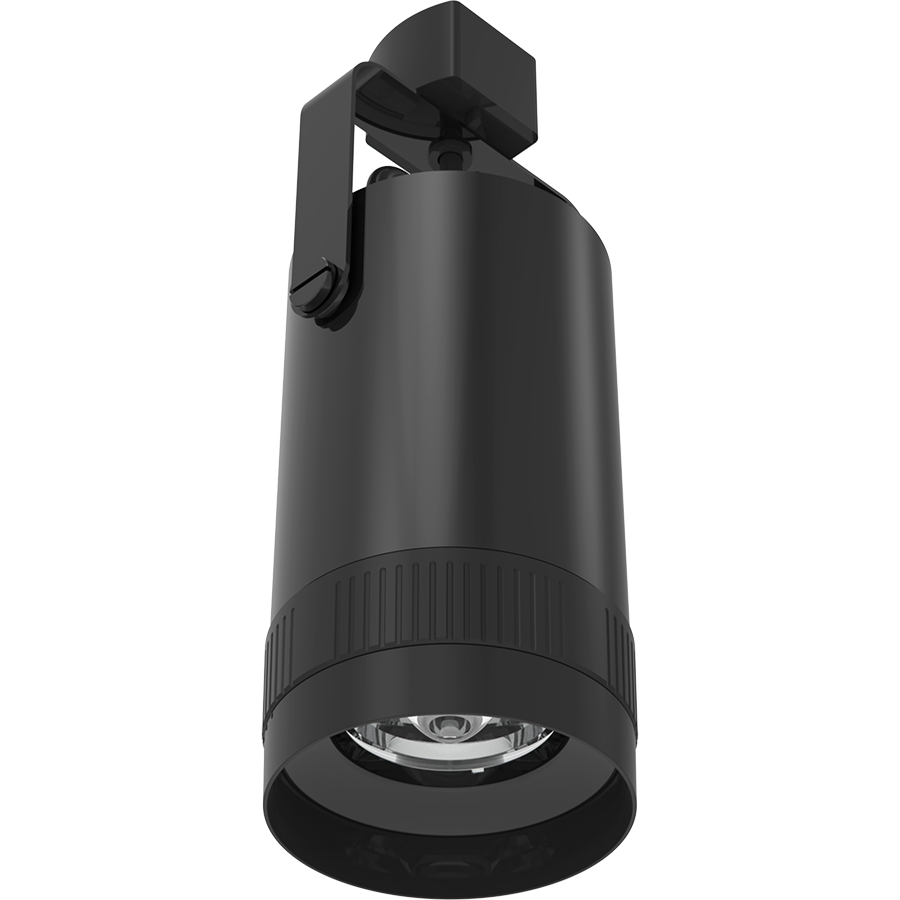

TK22LB

30W 2700/3000/3500/4000/5000K

100,000-Hour LED lifespan

DLC Listed

TRIAC dimming

120V

Dry location only

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	30/25/20W
Color Temp	2700/3000/3500/4000/5000K
Lumens	1840-3124 lm
Efficacy	86.7-116.5 lm/W
Color Accuracy	94-98 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.33A
208V
240V
277V
Input Watts	19.4-32.3W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 2.5 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
30/25/20W (factory default 30W)
Color temperature selectable 2700K, 3000K, 3500K, 4000K and 5000K (factory default 4000K)
Beam angle selectable by 15°, 20°, 30°, 40°, and 55° (factory default 55°)

Compliance

UL Listed

Suitable for dry locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP20 for protection against solid objects larger than 12.5mm

DLC Listed

This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC Product Code: S-3SW5F0

Performance

Lamp Type

Track Light

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Construction

IK Rating

IK06 Protected against 1 joules of impact. Equivalent to the impact of a 0.55 lbs. (.25kg) mass dropped from 15.8" (400mm) above the impacted surface.

Cold Weather Starting

The minimum starting temperature is -4°F (-20°C)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Housing

Aluminum

Lens

Polymethyl Methacrylate (PMMA)

Number of Heads

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Electrical

Driver

Constant Current, Class 1, 120V, 60 Hz, 120V: 0.33A

Dimming Driver

120V TRIAC Dimmers

Surge Protection

L-N:2.5 kV,LN-PE 2.5 kV

Aux Power Supply

Dim to Off

Installation

Mounting

Track mount. Compatible with RAB Track System and accessories.

LED Characteristics

LEDs

Long-life, high-efficacy, COB (Chip on Board) LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
