WPLED10Y has been discontinued. You have been redirected to its new replacement, WPLEDS
Return to WPLED10Y
TNFY
TNFY
- 24V DC - 205lm/ft - 4.3W/ft

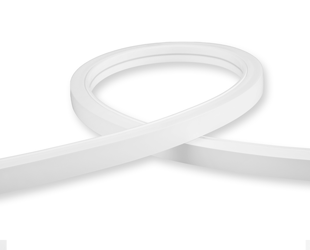

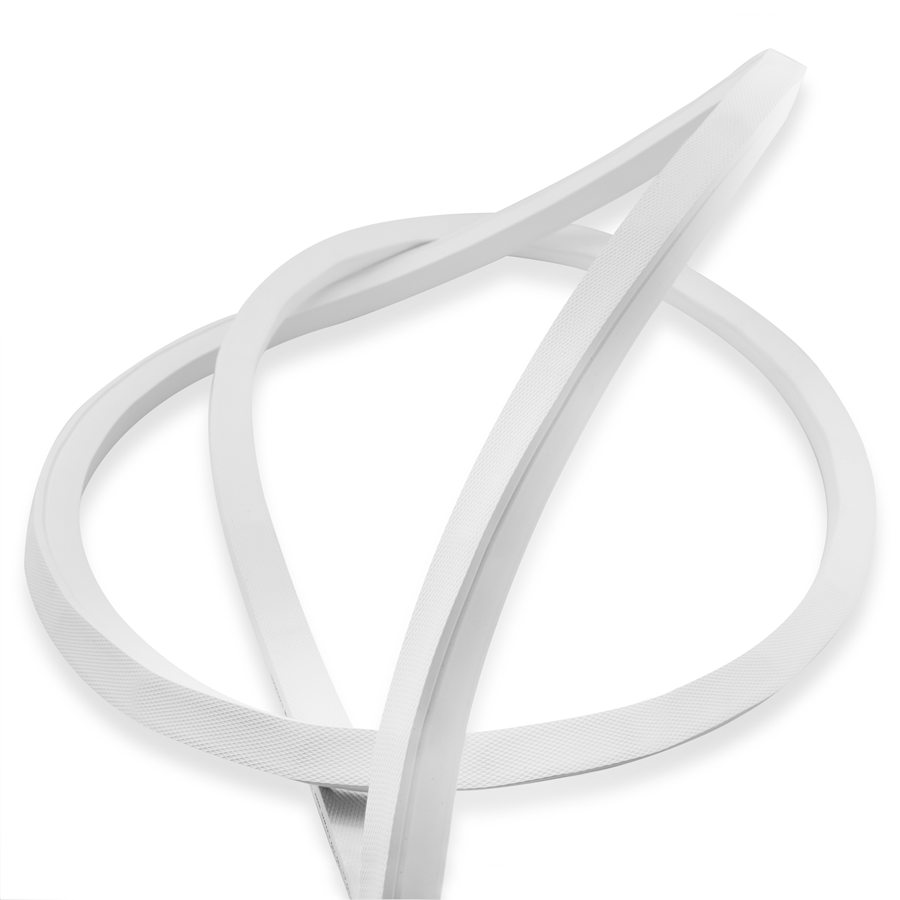

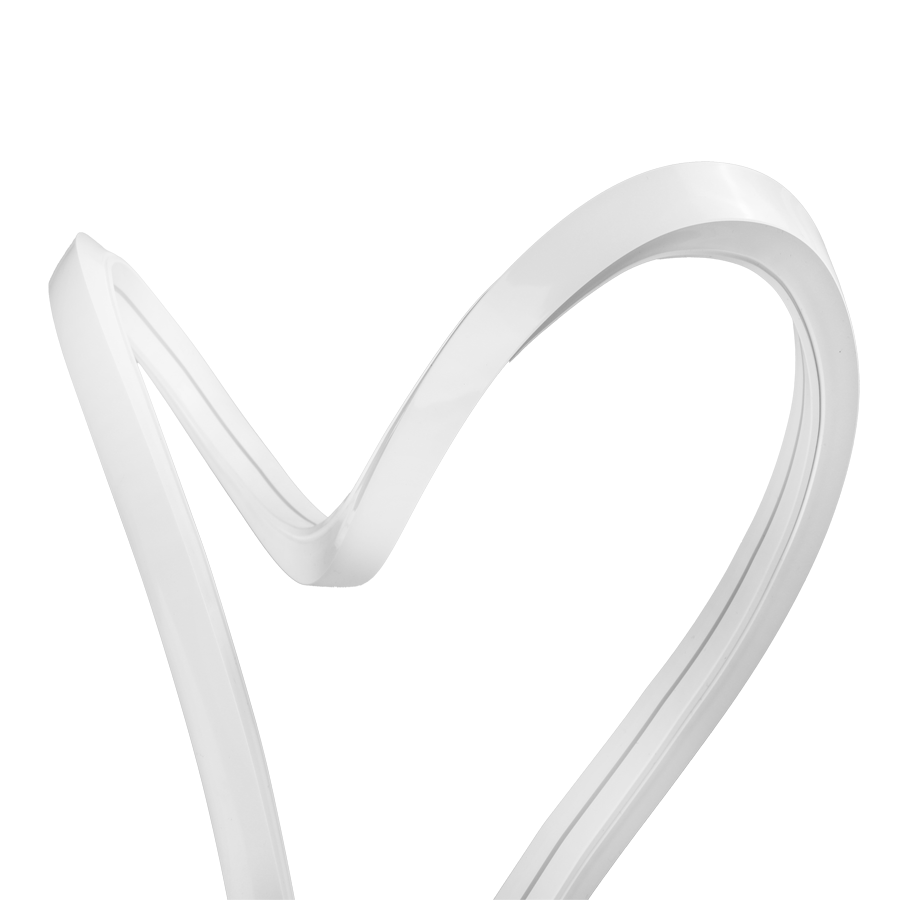

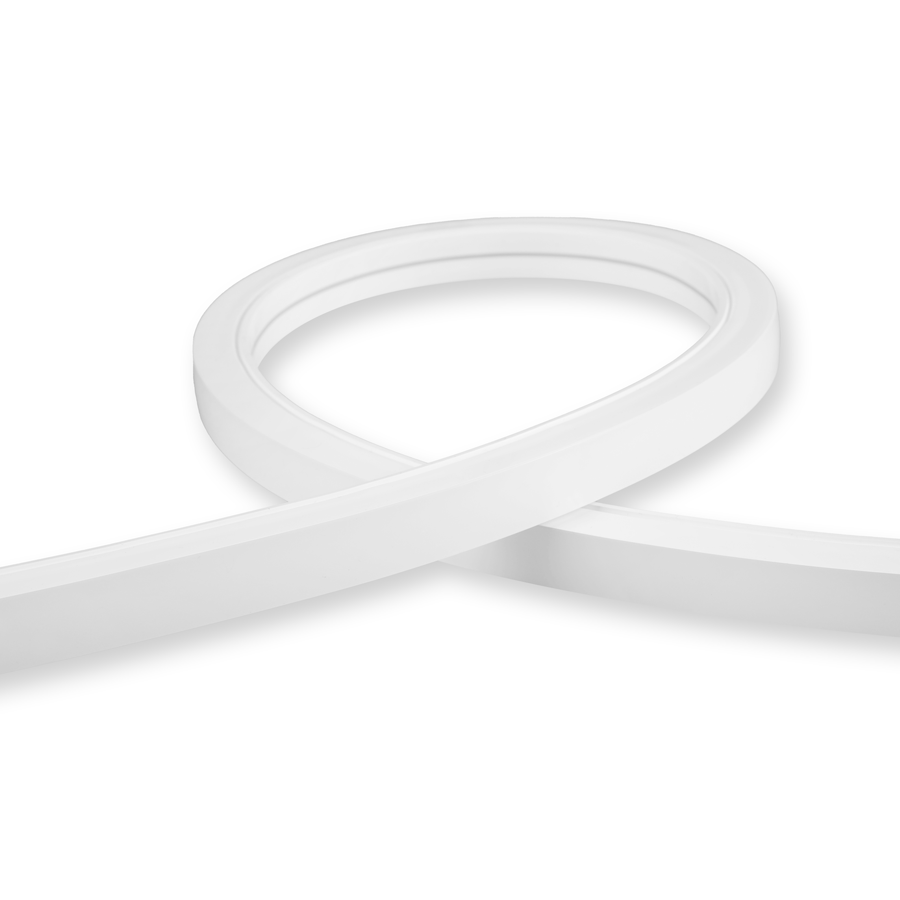

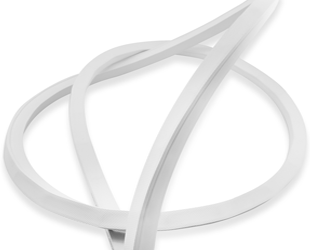

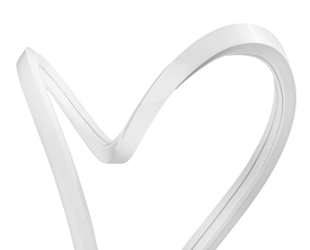

- Non-pixelated light diffusion enables the product to be freely bent in any direction, vertically or horizontally
- Field-cuttable for shorter runs with a max run of 32ft. Can be linked with connectors (sold separately)
- Easy installation with clips, fixed channel, and bendable channel (sold separately)
- Slim silicone construction with 6" minimum bending radius
- 60W & 96W Indoor or outdoor rated drivers available (sold separately)
- 50,000-hr rated life, Title 24 Compliant, and 5-year limited warranty
Performance
| Watts | 4.27W/FTW |
| Color Temp | |
| Lumens | 205 lm/ft lm |
| Efficacy | 48 |
| Color Accuracy | 3000K CRI |
| L70 Lifespan |
| Type | Constant Voltage |
| 120V | 5 mA/LED |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 4.27W/ftW |
Dimensions
Weight: 2.6 lbs
Technical Specifications
Performance
Product Type

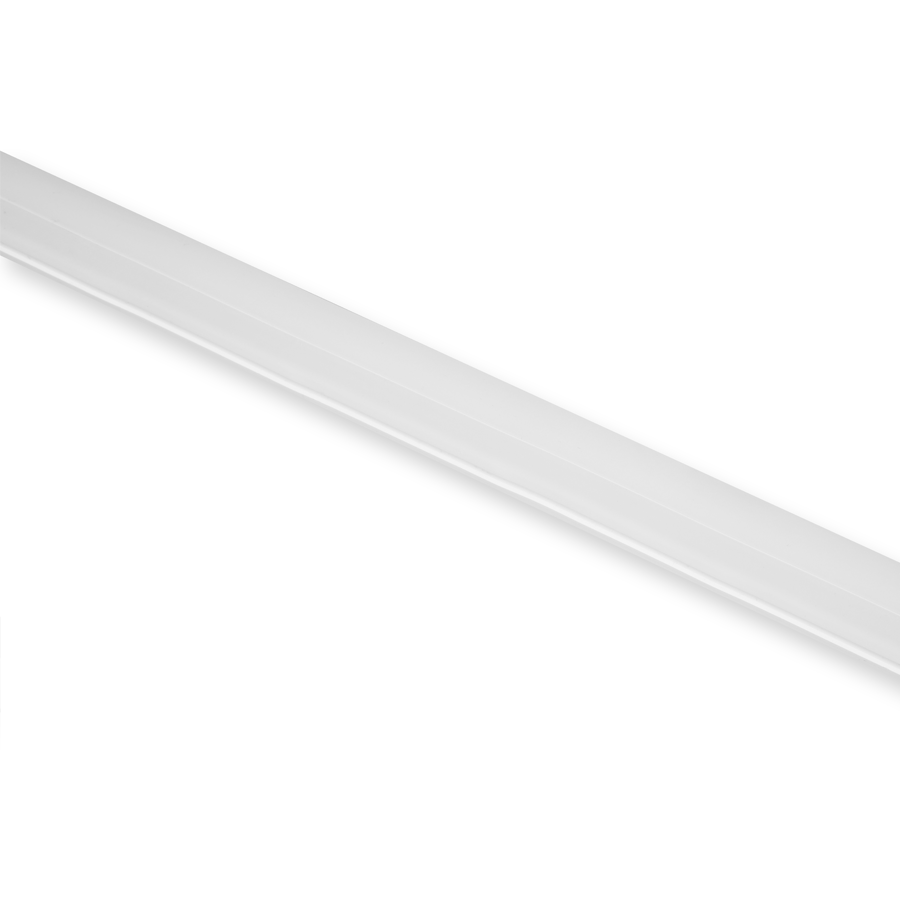

Dual Flex Silicone Wet Rated Neon Tape Light Static White
Lumens
205lm/ft±10%
Efficacy
48lm/W±10%
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Dimmable
PWM Dimming Signal, dimmable down to .1% with LED Driver (sold separately)
Input Voltage
DC24V
Operating Temperature
-4°F to 113°F (-20°C to 45°C)
LED Characteristics
Beam Angle
120°
Color Temperature
3000K
Color Accuracy (CRI)
90 CRI
R9 Value
High color performance with R9 greater than 50
Certification Model Number
<5-step (2700K & 5000K);<7-step (3000/3500/4000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Installation
Field Cuttable Increment
Can be cut at any length
Mounting
Easy installation with clips, fixed channel, and bendable channel (sold separately)
Construction
Length
16.4 ft
Max Linkable Run
32.8 ft
PCB Width
Width: 16mm
Height: 16mm
Height: 16mm
Light Source
COB LED White
Material Construction
Dual-Flex design which can be used to create curved and complex irregular designs
Light Effect
Soft linear lighting performance
Compliance
Listings
UL2108
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IP Rating
IP67
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
Mounting Accessories
TAP16
16mm wide aluminum straight channel
TB16
16mm wide mounting brackets
TBB16

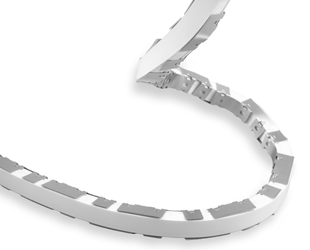

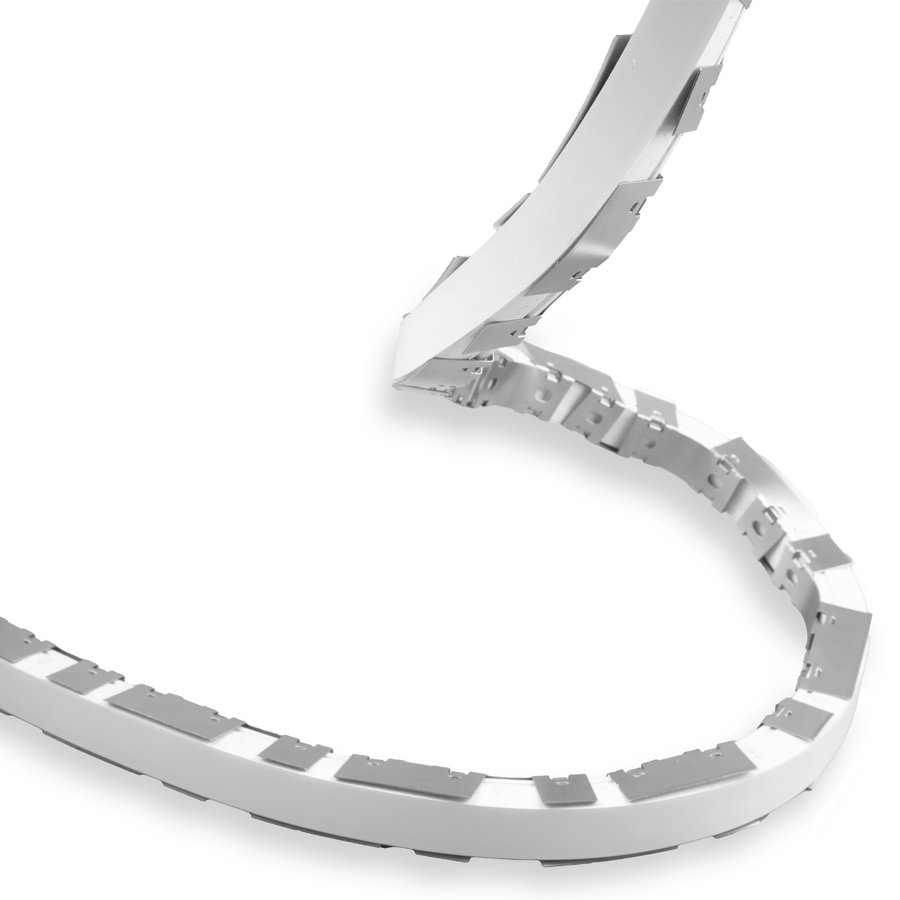

16mm wide bendable aluminum channel
16mm wide aluminum straight channel
TB16
16mm wide mounting brackets
TBB16
16mm wide bendable aluminum channel
Compatible Drivers
TID-60
Indoor 60W driver
TID-96
Indoor 96W driver
TOD-96
Outdoor 96W driver
Indoor 60W driver
TID-96
Indoor 96W driver
TOD-96
Outdoor 96W driver
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Recently Viewed Products
HALV10L935-MA-S/LC
Architectural 166 Lumens Halv Forward Light 14W 90Cri 3500K Mirage Bronze Lens Silver Finish Lightcloud Controller

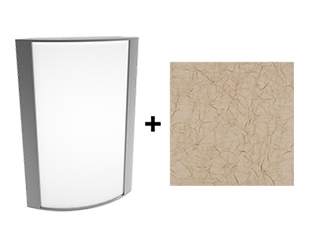

HALVS18L940-CS-S
Architectural 508 Lumens Halvs Forward & Up/Down Light 25W 90Cri 4000K Crushed Sedona Lens Silver Finish
LOT5T160W/D10/7PR
Area Lights 22315 Lumens Lotblaster 160W Type V 0-10V Dimming 120V-277V 7-Pin Receptacle White
GN1LED13YSSTBWN
Decorative 514 Lumens Gooseneck 13W 3000K 24 Inches Arm Straight Shade Spot Reflector 15 Inches Brown
WP2XFU60
Wall Packs Wp2 Field Adjustable 35/45/60W Field Adjustable 3000/4000/5000K 120V-277V Bronze
RWLED3T125SFN/BL
Roadway Lights 14373 Lumens Type Iii 125W 4000K 120V-277V Slipfitter Mount Bi-Level Bronze
HALV10L935-MA-S/LC
Architectural 166 Lumens Halv Forward Light 14W 90Cri 3500K Mirage Bronze Lens Silver Finish Lightcloud Controller
HALVS18L940-CS-S
Architectural 508 Lumens Halvs Forward & Up/Down Light 25W 90Cri 4000K Crushed Sedona Lens Silver Finish
LOT5T160W/D10/7PR
Area Lights 22315 Lumens Lotblaster 160W Type V 0-10V Dimming 120V-277V 7-Pin Receptacle White

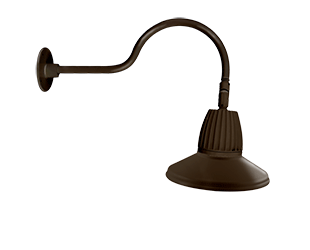

GN1LED13YSSTBWN
