TRLED2X4-37N/D10/E
TRLED2X4-37N/D10/E
- High efficiency, low maintenance alternative to fluorescent
- Prismatic lens with diffusion for enhanced optical performance
- 0-10V dimming, standard on all models
- Emergency battery backup to provide emergency lighting when power is lost
- Optional recessed mounting kit available
- 100,000-hour LED lifespan
- 5-Year, No-Compromise Warranty
Performance
| Watts | 37W |
| Color Temp | 4000K (Neutral) |
| Lumens | 3,451 lm |
| Efficacy | 90.8 lm/W |
| Color Accuracy | 83 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.31A |
| 208V | 0.19A |
| 240V | 0.16A |
| 277V | 0.14A |
| Input Watts | 38W |

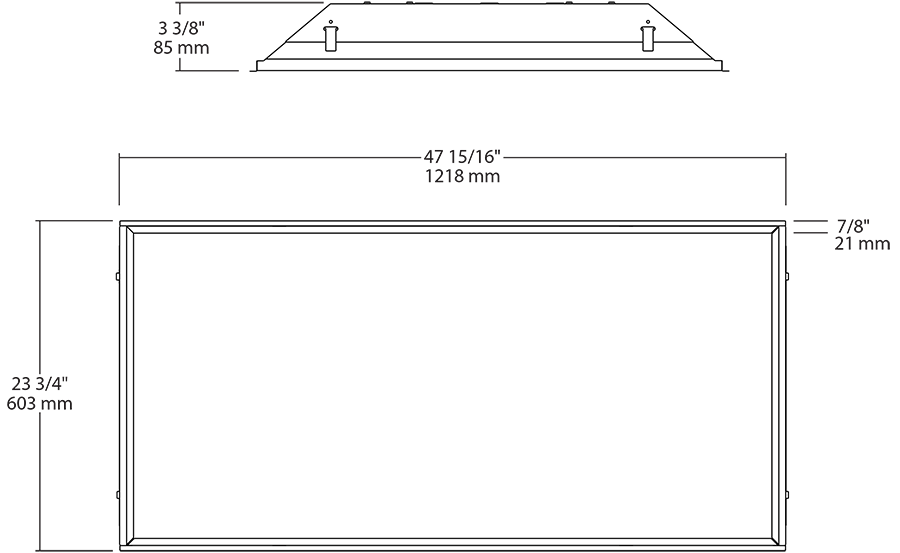

Dimensions
Weight: 15.5 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations
IC Rated
Suitable for insulated ceilings
Construction
Lens
Nominal .125" thick prismatic acrylic lens with diffusion for enhanced optical performance
LED Characteristics
LEDs
Long-life, high-efficiency, micro-power, surface-mountLEDs; binned and mixed for uniform light output and color
Electrical
Driver
Constant Current, Class 2, 4-channel driver with 0-10V dimming, 350mA, 120-277VAC 0.46A, Power Factor >94%
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 5%.
THD
10.4% at 120V, 12.5% at 277V
TRLED2X4-37 with Battery Backup
Battery backup will operate the LED lamp for 90 minutes if power fails. Wired for 120-277V.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
