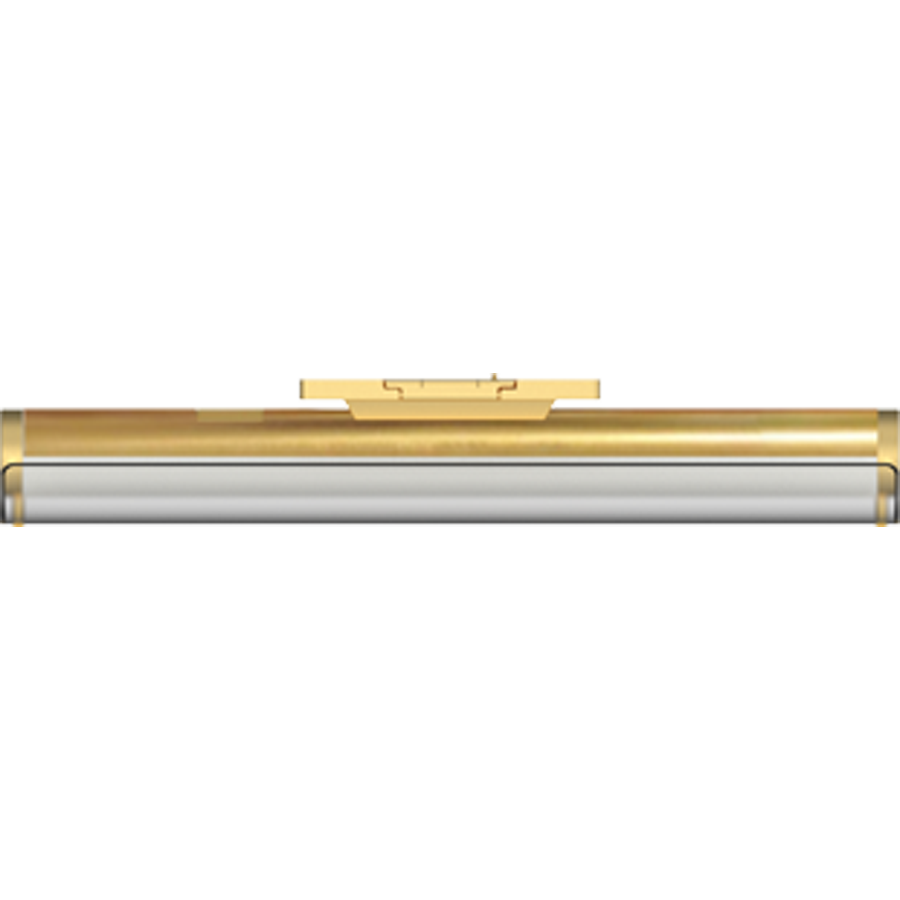

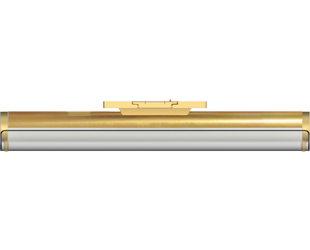

V1-24BR

20W

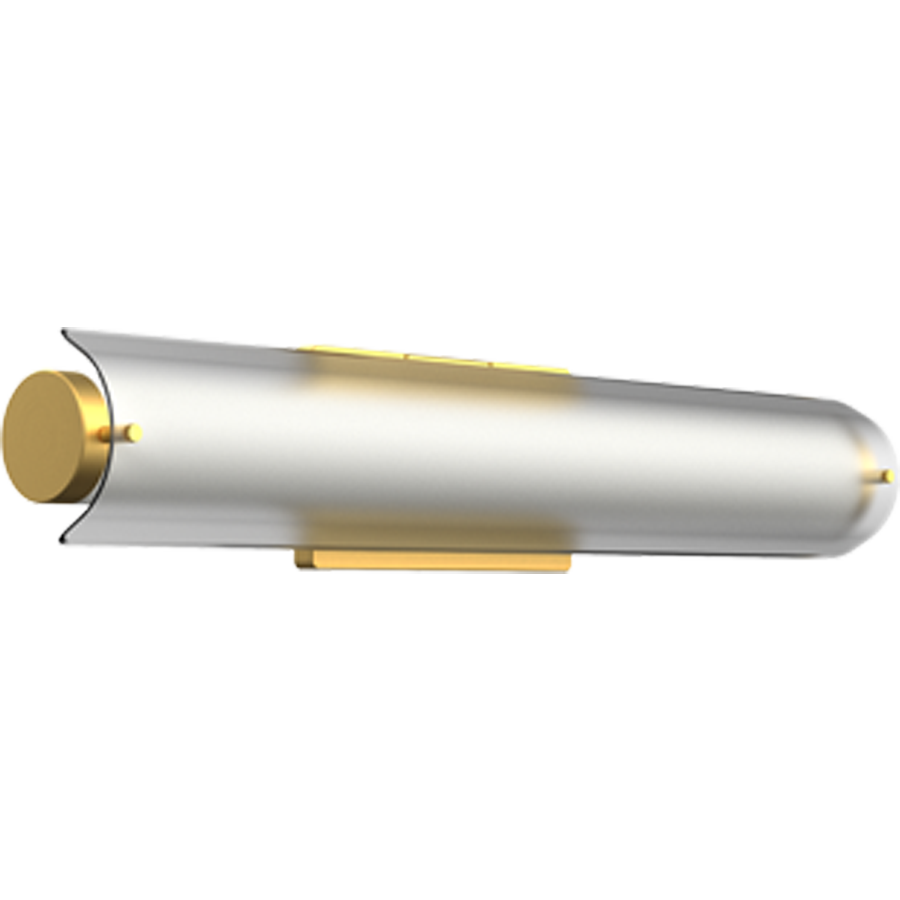

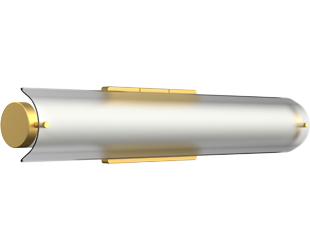

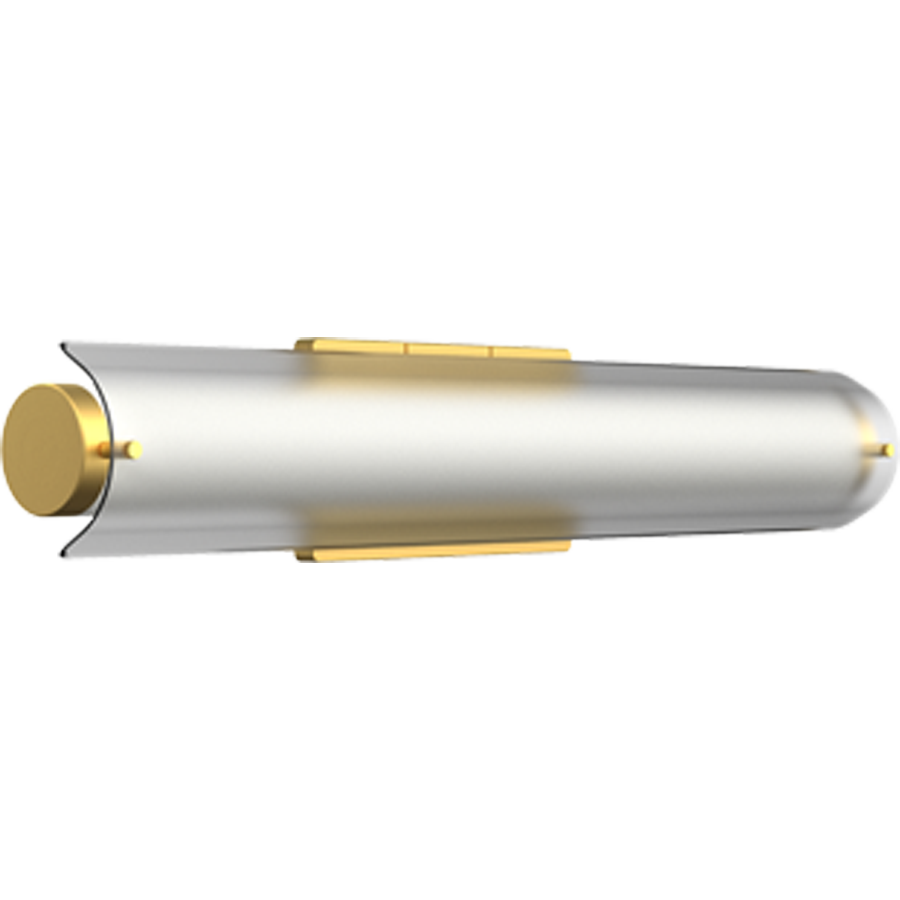

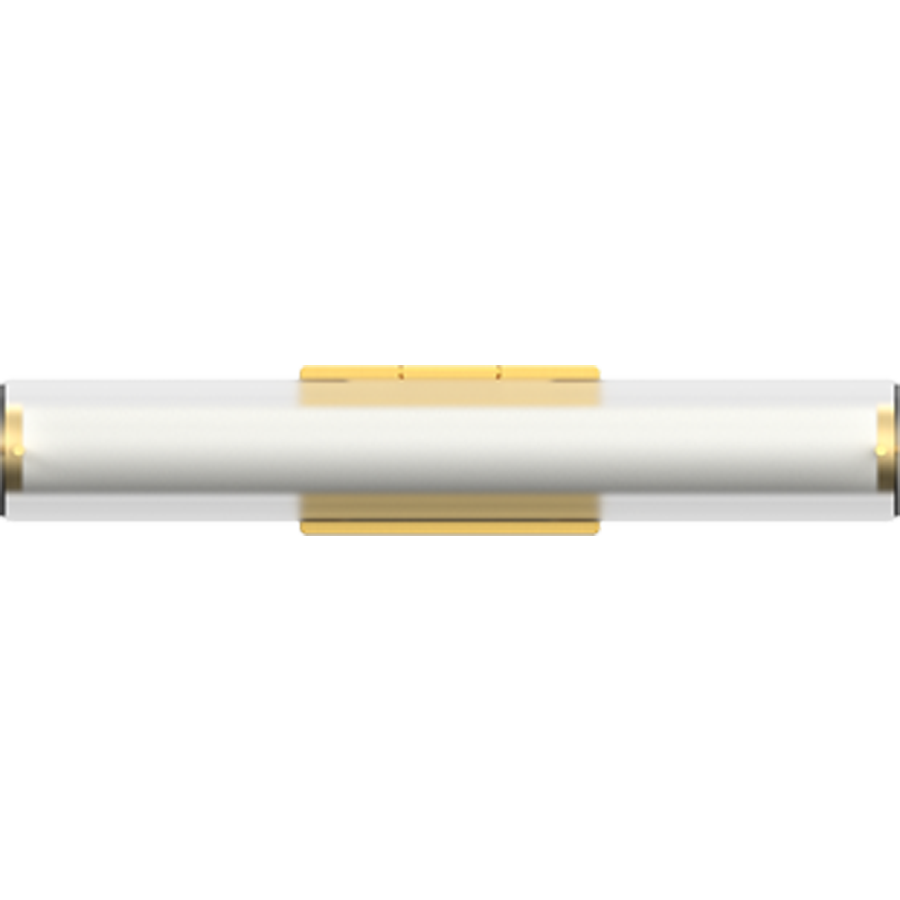

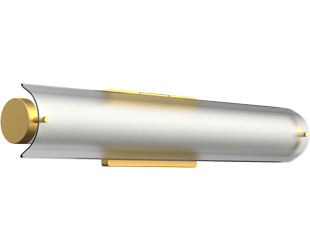

Beautiful brushed aluminum housing with decorative end caps

Frosted polycarbonate curved outer lens diffuses light evenly

Architectural-grade, matte paint finish available in Brushed Nickel, Black, and Brass

3 Selectable wattages & 5 CCTs: 2700/3000/3500/4000/5000K

Damp rated, ADA Compliant, Title 24 Compliant, 50,000 hrs, 5-year no compromise warranty

View Technical Specs

View Price & Availability

Performance

Watts	20/15/10W
Color Temp
Lumens	1157-2411 lm
Efficacy	103.8-124.3 lm/W
Color Accuracy	2700/3000/3500/4000/5000K CRI
L70 Lifespan

Type	Constant Current
120V	0.09A/0.12A/0.17A
208V	0.06A/0.08A/0.10A
240V	0.05A/0.07A/0.08A
277V	0.04A/0.06A/0.07A
Input Watts	10.6-20W

EZ-Layout

Create Custom Lighting Layout

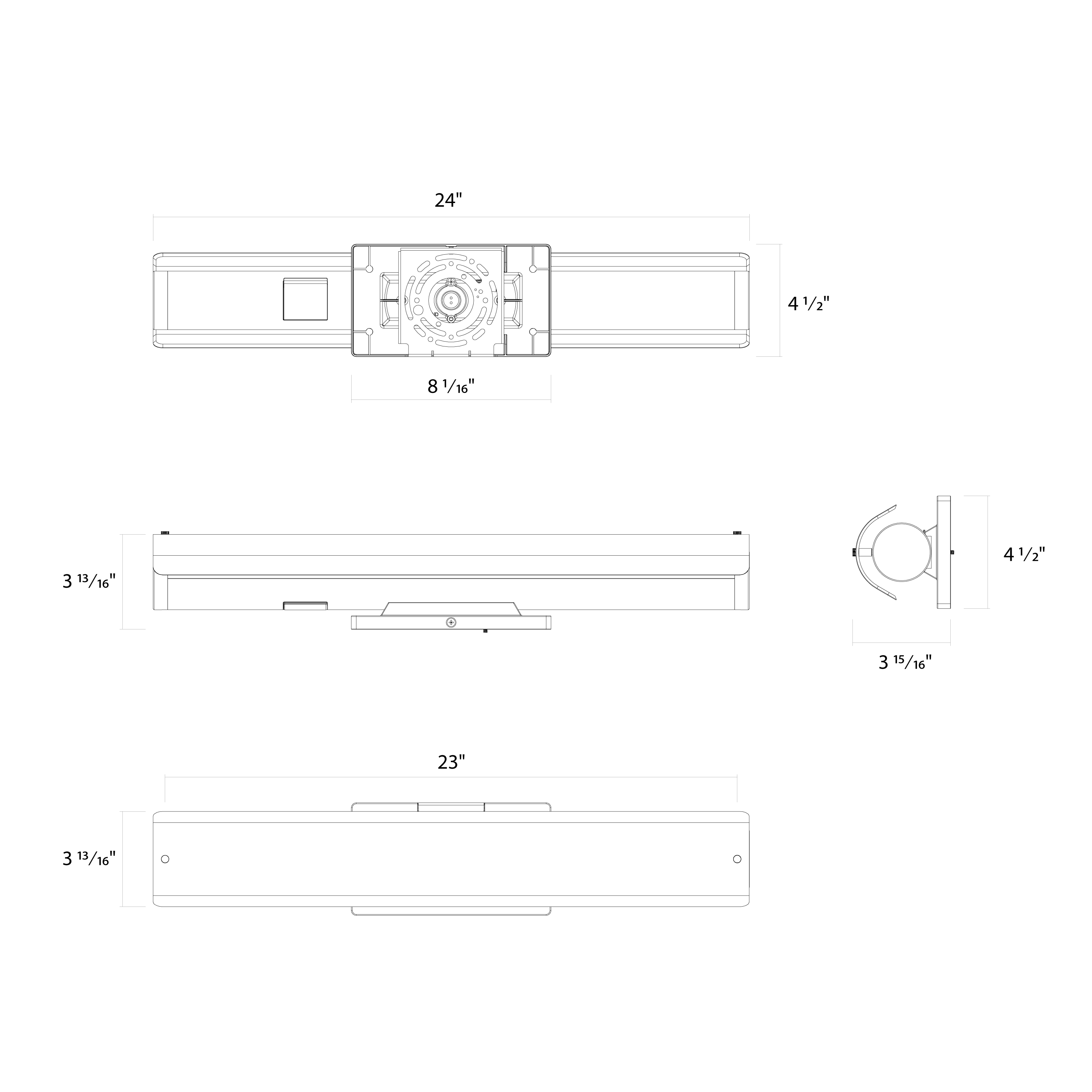

Dimensions

Weight: 3.1 lbs

Technical Specifications

Performance

Product Type

Vanity Bath Bar

Description

A sleek & modern vanity featuring field-adjustable wattage and CCT, and a sleek curved lens that's perfect for elegant applications.

Wattage Equivalency

200W Incandescent

Input Wattage

20W

Lumens (Nominal)

2,000/1,500/1,000lm

Lumens (Measured)

2,000lm

Efficacy

100lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Driver

Linear

Electrical

THD

<50%

Power Factor

>0.9

Dimmable

Yes, dimmable down to 5% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Input Voltage

120-277V

Operating Frequency

60 Hz

Input Current @ 120V (mA)

185mA

Flicker

<30%

Construction

Operating Temperature Range

-4°F - 104°F (-20°C - 40°C)

Length

24"

Shape

Cylindrical housing and lens with a curved decorative diffuser

Finish

Brass

Enclosure Material

Brushed aluminum housing

Lens Finish

Frosted White

Lens

Curved decorative diffuser

LED Characteristics

Beam Angle

120°

Color Temperature

Field adjustable via dip switch 2700/3000/3500/4000/5000K

Color Accuracy (CRI)

>90 CRI

R9 Value

High color performance with R9 greater than 50

Color Consistency

<7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Color Stability

LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Installation

Installation Method

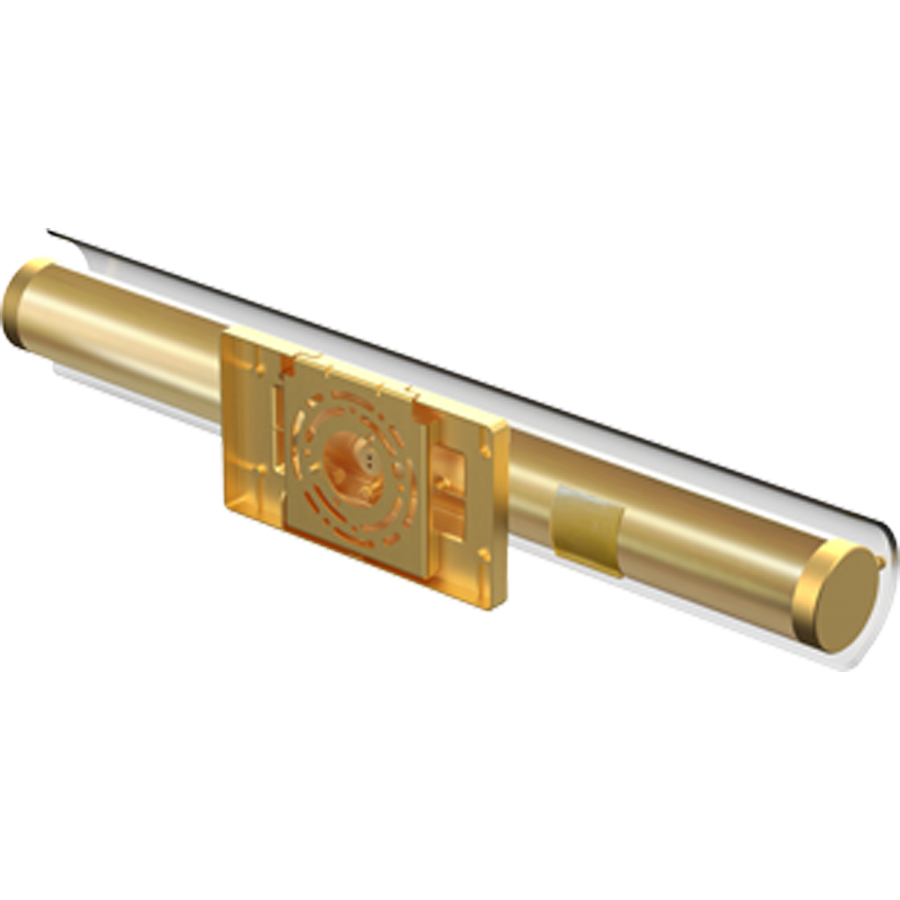

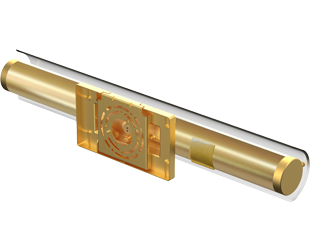

Wall bracket & Wire Nuts included to attach to standard junction box and connect to mains voltage.

Installation Orientation

Horizontal or vertical

Mounting

Wall mount

Compliance

UL Listed

This product has been tested by Intertek and found in compliance with accepted national standards.

Certification Model Number

V1-24BR

California Title 20 Compliant

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6.

California Energy Commission (CEC) Status

Lawful for Sales in California

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Other

Compatible Accessories

None

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
