VXBRLED13NDG/PCS
VXBRLED13NDG/PCS

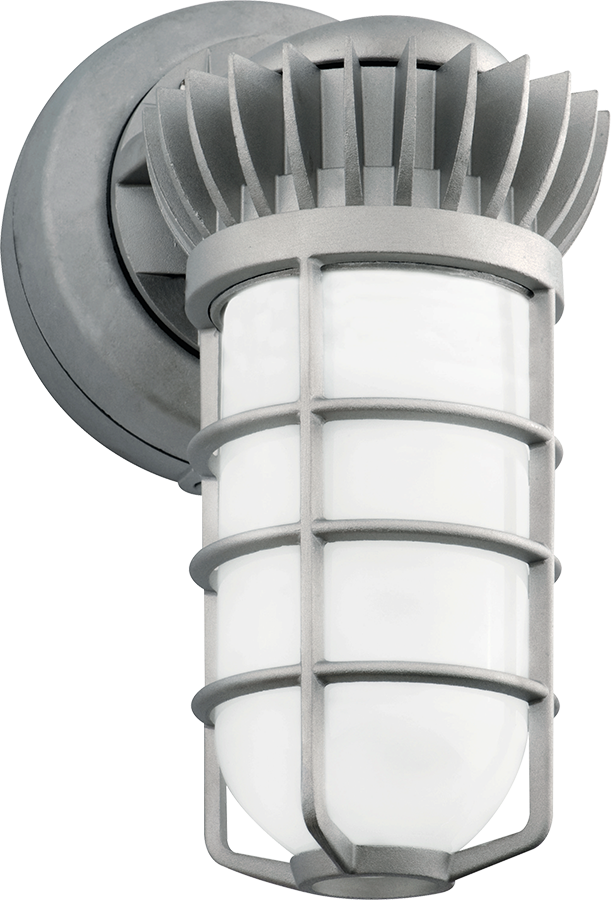

- Vaporproof LED Wall Mount
- Superior Thermal Management (Patent Pending)
- All Die-Cast Aluminum Construction
- 100,000-hour life based on LM-80 results and TM-21 calculations
- Thermal Shock-Resistant Frosted Glass Globe
- Traditional Look, Cutting-Edge Technology
- 5-Year, No-Compromise Warranty
Performance
| Watts | 13W |
| Color Temp | 4000K (Neutral) |
| Lumens | 595 lm |
| Efficacy | 39.1 lm/W |
| Color Accuracy | 88 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.13A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 15.2W |

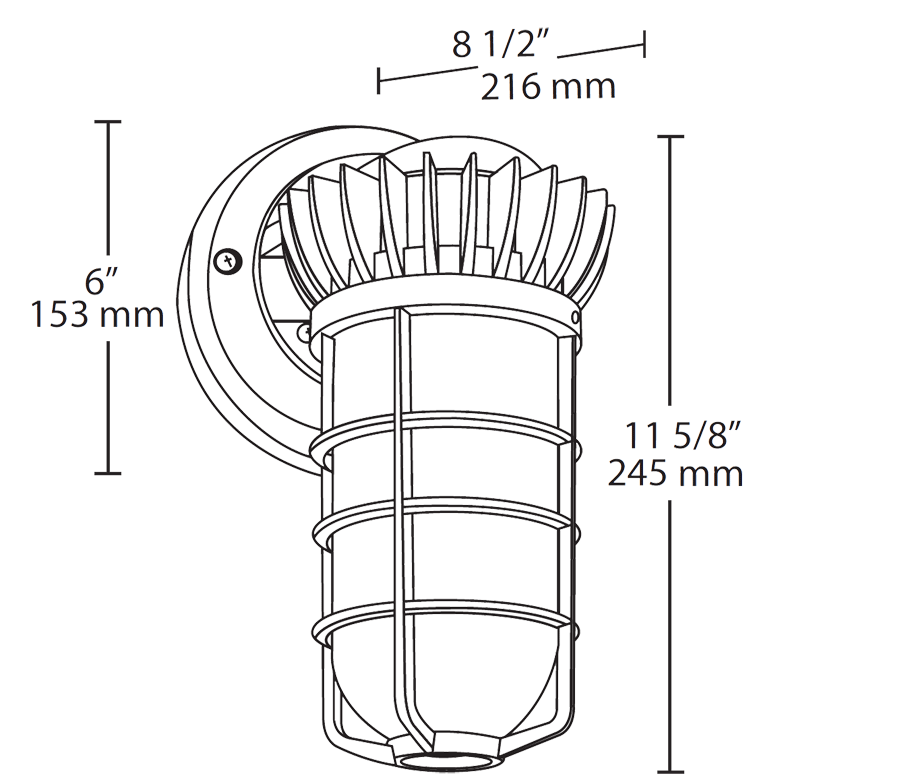

Dimensions
Weight: 5.8 lbs
Technical Specifications
Compliance
UL Listed
UL Listed Suitable for Wet locations only with outer globe and as a Downlight
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Electrical
Driver
Multi-chip single 13W high output long life LED Driver. Constant Current,100V-277V, 50/60 Hz., 100-240VAC.3-.15 Amps 277VAC.15 Amps. Will deliver 70% of its initial lumens at 100,000 hours based onlm-80 Tests.
Photocell
120V Swivel photocell included. Photocell is only compatible with 120V.
Surge Protection
4 kV
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 26W CFL
Construction
Specification
These specifications are for fixture with Frosted Glass Globe and Die Cast Guard combination. Consult warehouse for different fixture combinations.
Globes and Guards
Vaporproof LEDs are compatible with RAB Globes and Guards
Construction
Die cast aluminum housing and door. Tether connects back housing halves for safety.
Thermal Management (Patent Pending)
Die cast aluminum LED housing designed for maximum heat dissipation
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Ambient Temperature
Suitable for use in up to95°F(35°C)
Housing
Die-cast aluminum housing and driver housing
Guard and Globe
Shot blasted guard with frosted globe
Reflector
High quality hydroformed semi-specular aluminum
Gaskets
High-temperature Silicone
Finish
Natural shot blasted aluminum
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Three 1/2" NPS conduit entry points
LED Characteristics
Color Consistency
3-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Patents
The VXBRLED design is protected by Taiwan Patent 01510951 and patents pending in the U.S., Canada, China, and Mexico.
Optical
BUG Rating
B0 U3 G1
