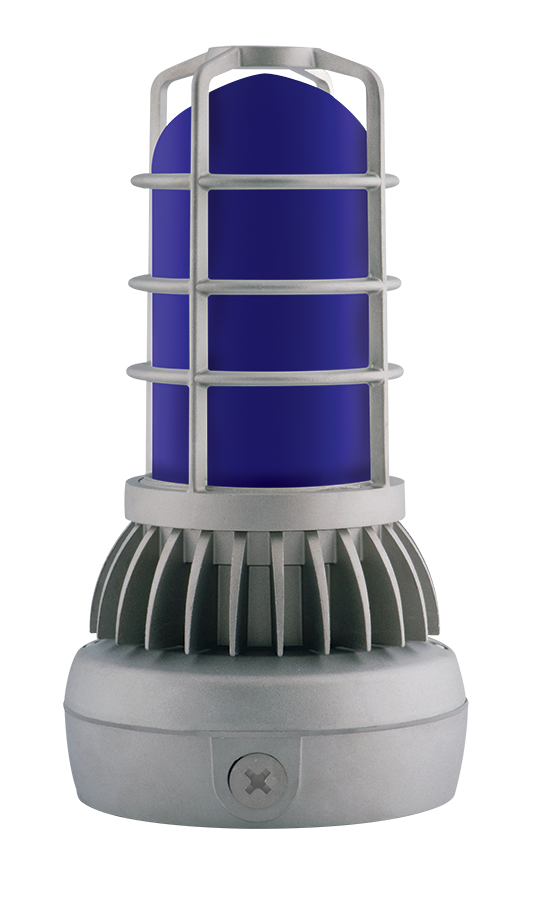

VXLED13DG/UP BLU
VXLED13DG/UP BLU
- Ideal for call boxes on campuses, parking areas and walkways
- Can be mounted as an uplight
- 100,000-hour LED lifespan
- True blue design with blue globe and blue LED
- Mounts to wall or existing pole
- 5-Year, No-Compromise Warranty
Performance
| Watts | 13W |
| Color Temp | |
| Lumens | |
| Efficacy | |
| Color Accuracy | |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.13A |
| 208V | 0.08A |
| 240V | 0.07A |
| 277V | 0.06A |
| Input Watts | 15.1W |
Dimensions
Weight: 5.1 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground.
IESNA LM-80 Testing
RAB LED luminaires have been tested by an independent laboratory in accordance with IESNAlm-80
LED Characteristics
LED
Multi-chip, 13W high-output, long-life blue LED
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Housing
Precision die-cast aluminum housing, lens frame
Gaskets
High-temperature silicone
Finish
Natural shot blasted aluminum
Guard and globe
Shot blasted guard with internally frosted blue globe
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
(3) 1/2" NPS conduit entry points
Other
Patents
The design of the LBEACON™ is protected by patents pending in US, Canada, China, Taiwan and Mexico
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Electrical
Driver
Constant Current, 100V-277V, 50/60 Hz, 100-240VAC = 0.3-0.15 Amp, 277VAC = 15Amps. THD is less than equal to 20%, Power Factor = 97.5%.
THD
6.1% at 120V, 10.1% at 277V
