WFR17-6
WFR17-6

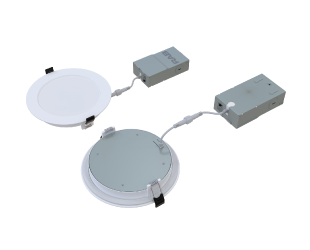

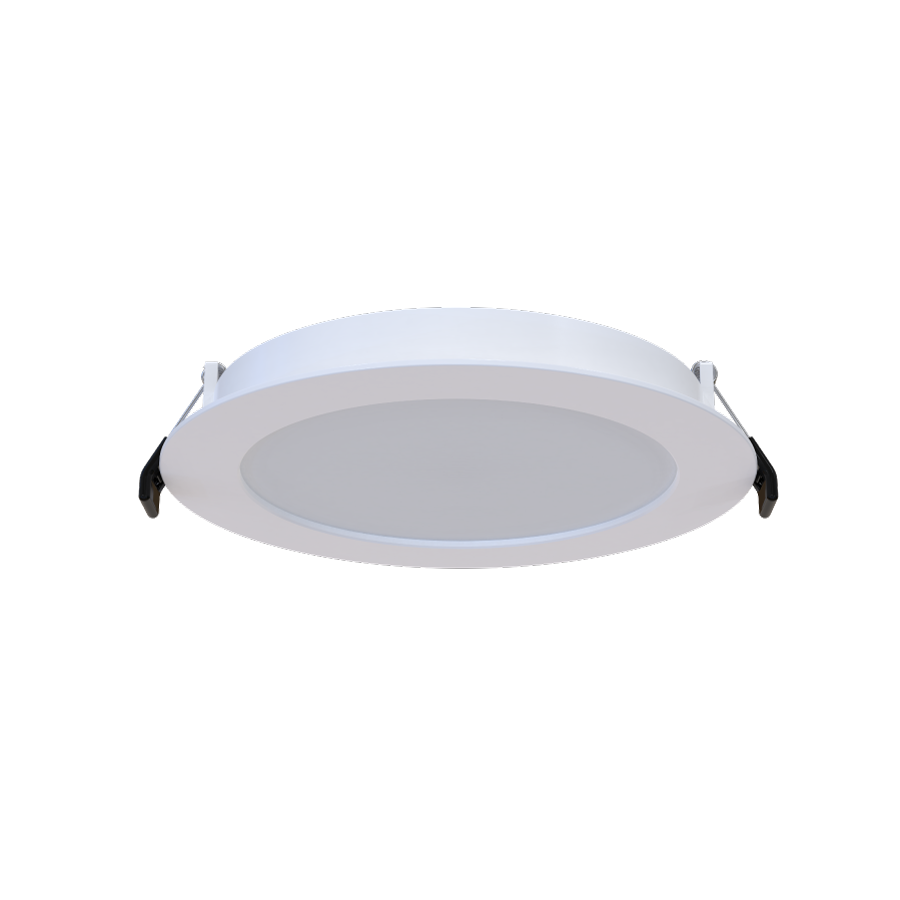

- Slim Back-Lit Wafer downlight for new construction & remodel applications
- 5 selectable color temperatures (2700K,3000K,3500K,4000K,5000K)
- Easy, fast, housing-free installation with it's slim design and remote driver box
- Dimmable 90CRI LED with smooth trim
- 3-year limited warranty
Performance
| Watts | 13W |
| Color Temp | |
| Lumens | 1,000 lm |
| Efficacy | 69 |
| Color Accuracy | 2700/3000/3500/4000/5000K CRI |
| L70 Lifespan |
| Type | Constant Current, Class 2 |
| 120V | 0.13A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 13W |
Dimensions
Weight: 0.8 lbs
Technical Specifications
Performance
Product Type
Back-lit Slm Wafer recessed Downlight with Remote Driver
Description
The first of it's kind back-lit wafer downlight, the WFR17 gives the same benefits of a wafer wownlight while being super economical.
Wattage Equivalency
75W Incandescent
Input Wattage
13W
Lumens
971lm @ 2700K;
1015lm @ 3000K;
1069lm @ 3500K;
1090lm @ 4000K;
1084lm @ 5000K
1015lm @ 3000K;
1069lm @ 3500K;
1090lm @ 4000K;
1084lm @ 5000K
Efficacy
80lm/W @ 2700K;
85lm/W @ 3000K;
91lm/W @ 3500K;
92lm/W @ 4000K;
90lm/W @ 5000K
85lm/W @ 3000K;
91lm/W @ 3500K;
92lm/W @ 4000K;
90lm/W @ 5000K
L70 Lifespan
30,000-hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current, Class 2, 60 Hz, 120V
THD
≤20%
Power Factor
≥0.9
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120V
Operating Frequency
60 Hz
Input Current @ 120V (mA)
130mA
Operating Temperature
-4°F to 104°F (-20°C to 40°C)
Flicker
30%
LED Characteristics
Beam Angle
110°±10°
Color Temperature
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Default setting: 3000K
Default setting: 3000K
Color Accuracy (CRI)
90 CRI
R9 Value
High color performance with R9 greater than 50
Color Consistency
<7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Installation

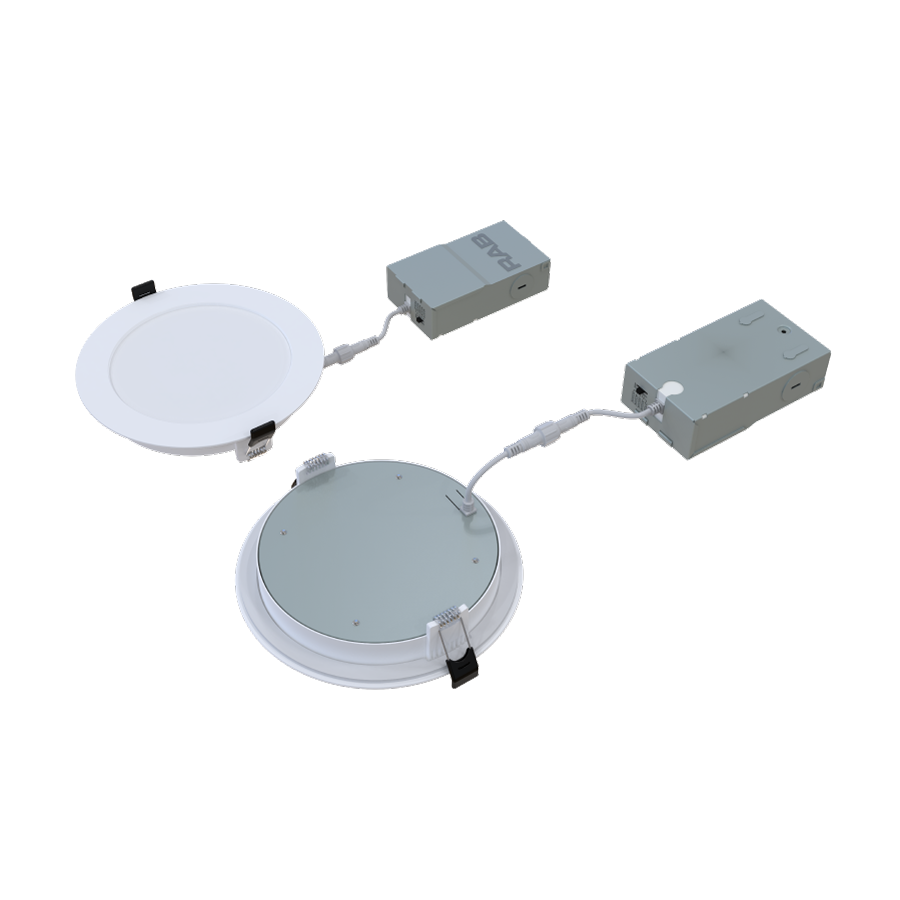

Remote Driver/Junction Box
Die formed metal driver / junction box with captive hinged junction box cover. Listed for Maximum of (4) 12AWG through branch circuit conductor suitable for 90°C permitted in box. Easy to wire in 2in/2out (plus ground) applications. (4) conduit pry-outs. (3) twist wire nuts provided in packaging. Integral mounting facilitates direct mounting to building structure or mounting frame.
Mounting
No housing is required. Two steel tension spring clips secure Luminaire to ceiling. New construction frames available (details below).
Construction
Size
6"
Shape
Round
Finish
Matte White
Enclosure Material
Aluminum housing with PC enclosure and trim flange
Trim Style
Smooth
Lens Finish
Frosted Milky white
Lens
Frosted acrylic light guide which provides smooth diffuse lighting without hot spots
Air Tight
Housing certified Air Tight as per ASTM-E283
Compliance
Listings
UL Listed
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IC Rated
Suitable for direct contact with insulation.
Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
Energy Star Approved
No
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Certification Model Number
DLW0118(WFR17-6)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Other
Compatible Accessories
Goof Rings
WFRL-GOOF-6R-8R-W
Color Trims
WFRL-TRIM-6R-BS
WFRL-TRIM-6R-BRS
WFRL-TRIM-6R-BNS
Mounting Plates
DLPLATE/WFR6/NB/CL
DLPLATE/WFR6
Extension Cables
EXTCBL-FA-6L
EXTCBL-FA-12
EXTCBL-FA-20
Emergency Drivers
DRI-25-EMGR-DC
DRI-21-EMGR-DC-D10
DRI-EMB-15S-LV
2-n-1 Driver + Battery Backup
WFRL-GOOF-6R-8R-W
Color Trims
WFRL-TRIM-6R-BS
WFRL-TRIM-6R-BRS
WFRL-TRIM-6R-BNS
Mounting Plates
DLPLATE/WFR6/NB/CL
DLPLATE/WFR6
Extension Cables
EXTCBL-FA-6L
EXTCBL-FA-12
EXTCBL-FA-20
Emergency Drivers
DRI-25-EMGR-DC
DRI-21-EMGR-DC-D10
DRI-EMB-15S-LV
2-n-1 Driver + Battery Backup
3-Year Limited Warranty
The RAB 3-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty
