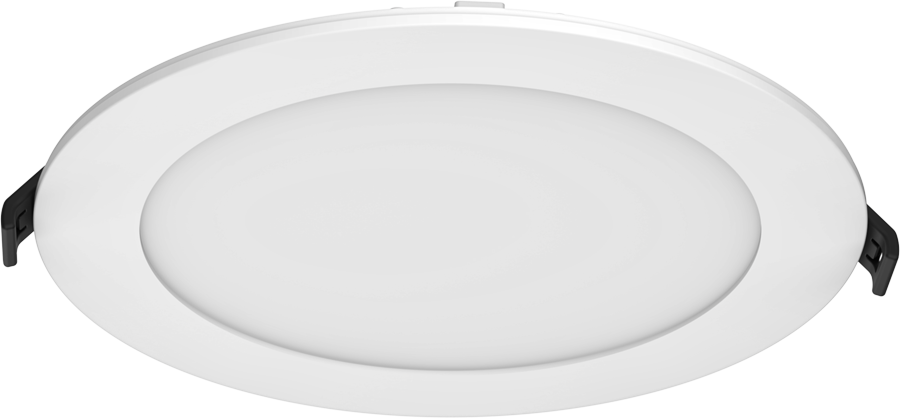

WFR6R12927120WS
WFR6R12927120WS
- Super slim Edge-lit fixture for thin fixture depth
- No recessed housing or J-box required
- New construction or retrofit applications
- UL wet location rated
- Smooth diffused uniform light distribution
- Dimmable down to 5% on compatible dimmers
- Spring loaded retention clips
- Robust, die cast aluminum construction
- IC and airtight rated
- 5-Year, No-Compromise Warranty
Performance
| Watts | 12W |
| Color Temp | 2700K (Residential Warm) |
| Lumens | 1,031 lm |
| Efficacy | 62.5 |
| Color Accuracy | 90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.127A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 12W |

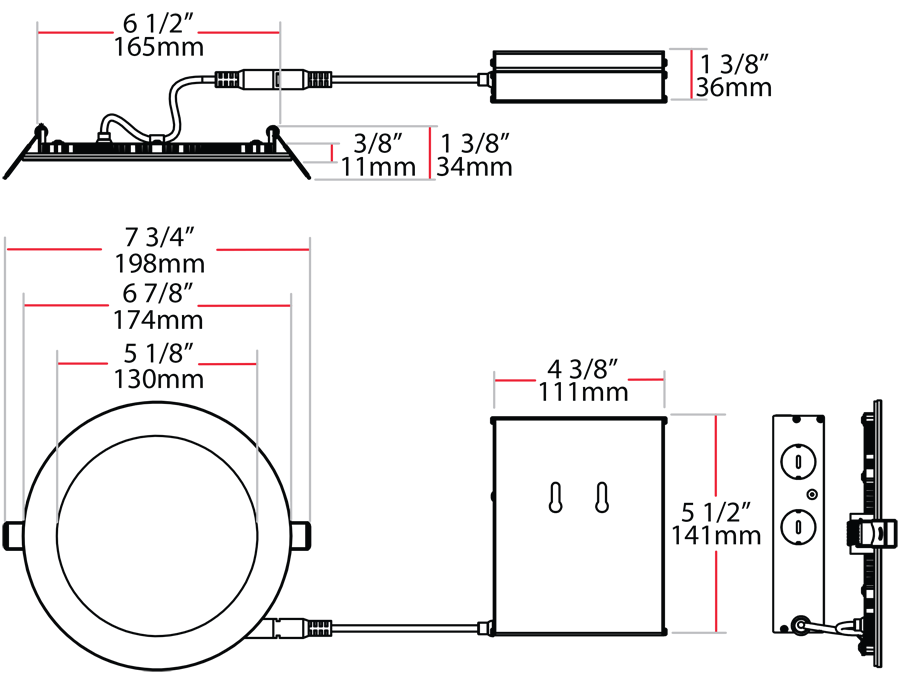

Dimensions
Weight: 1.0 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
Energy Star Approved
ENERGY STAR® Version 2.2 Certified
Certification Model Number
DLW0025
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C5).
IC Rated
Suitable for direct contact with insulation.
Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations.
Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations.
Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
California Title 24
Can be used to conform with the requirements of California Title 24 Part 6.
Electrical
Dimming Driver
TRIAC compatible dimmer with dimming as low as 5%. See dimmer compatibility guide here.
Power Factor
≥0.9
Remote Driver
Die-cast metal driver / junction box with a hinged cover.
Listed for 12AWG and 14AWG conduit.
Includes two metal knockouts for wiring.
Quick connectors included.
Plenum rated cable connector to connect from module to remote driver box.
Listed for 12AWG and 14AWG conduit.
Includes two metal knockouts for wiring.
Quick connectors included.
Plenum rated cable connector to connect from module to remote driver box.
PF
≥0.9
Input Voltage
120V
Flicker
Silent and flicker free operations of less than 30%
Operating Frequency (Hz)
60Hz
Performance
Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
65W Incandescent
Construction
Air Tight
Housing certified Air Tight as per ASTM-E283
Edgelit Design
Allows for extremely thin fixture depth for any ceiling application
Trim Style
Smooth Trim
Housing
Made from precision die-cast aluminum construction, dissipates heat from electrical components
Cold Weather Starting
The minimum starting temperature is -22°F (-30°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Lens
Frosted polycarbonate diffusion lens
Green Technology
Mercury and UV free. RoHS-compliant components.
Finish
Matte White
LED Characteristics
Beam Angle
120°
LEDs
Long-life, high-efficacy, surface-mount LEDs
R9 Value
High color performance with R9 greater than or equal to 50
Installation
Mounting
Robust retention clips spring loaded tabs ensure the fixture is securely installed. Can be installed in 1/4" to 1 1/2" thick ceilings.
Other
Template
Template included for easy ceiling cut out
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
