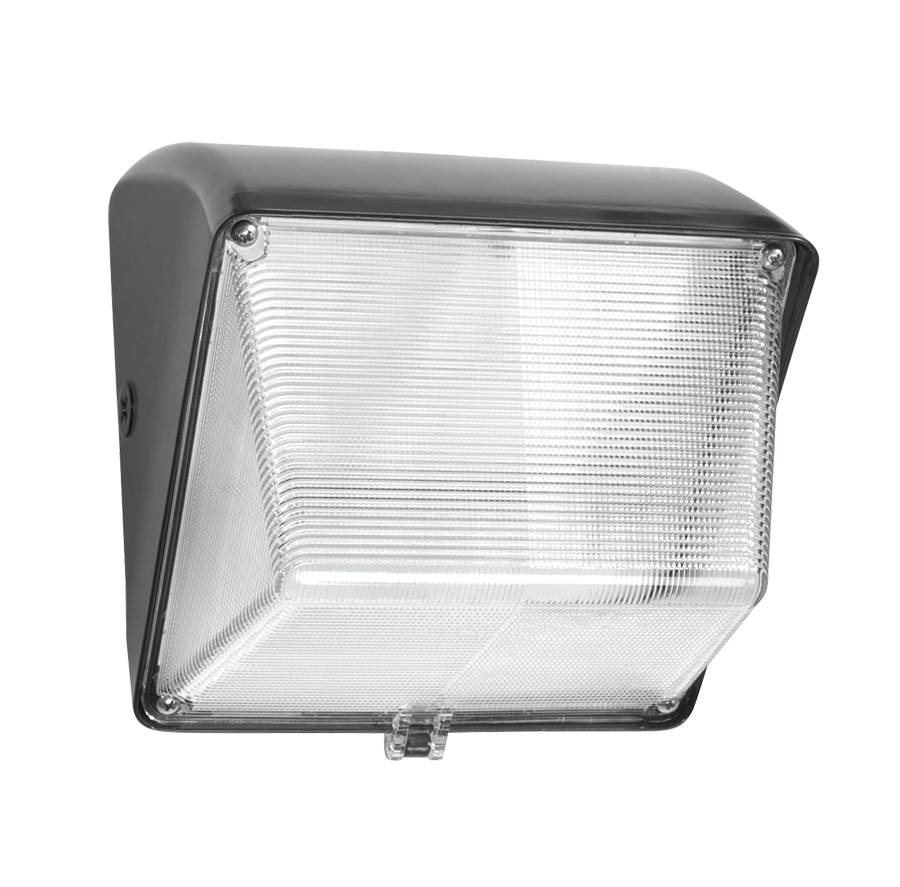

WP1LED30/PCS
WP1LED30/PCS
- Covers footprint of traditional HID wall packs
- WP1LED replaces up to 100W MH
- 100,000-Hour LED lifespan
Performance
| Watts | 30W |
| Color Temp | 5000K (Cool) |
| Lumens | 3,332 lm |
| Efficacy | 107.1 lm/W |
| Color Accuracy | 86 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.25A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 31.1W |
Dimensions
Weight: 5.3 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Wall mount only.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Optical
BUG Rating
B1 U3 G3
Construction
Thermal Management
Superior thermal management with die-cast aluminum heatsink
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Electrical
Driver
Constant Current, Class 2, 700mA, 50/60 Hz. 100 - 277V, 4kV surge protection
