WP1LED30W/PC2
WP1LED30W/PC2 large main
  • Covers footprint of traditional HID wall packs
  • WP1LED replaces up to 100W MH
  • 100,000-Hour LED lifespan
 View Technical Specs
View Price & Availability
Performance
Watts 30W
Color Temp 5000K (Cool)
Lumens 3,332 lm
Efficacy 107.1 lm/W
Color Accuracy 86 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V
208V 0.16A
240V 0.14A
277V 0.12A
Input Watts 31.1W
Dimensions
Link to Dimension Drawing

Weight: 5.3 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Wall mount only.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Optical
BUG Rating
B1 U3 G3
Construction
Thermal Management
Superior thermal management with die-cast aluminum heatsink
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Electrical
Driver
Constant Current, Class 2, 700mA, 50/60 Hz. 100 - 277V, 4kV surge protection

Recently Viewed Products

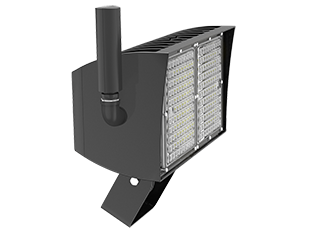

This is a link to the product PIPXL70T/D10/LC PIPXL70T/D10/LC
