WP2LED24Y/PC2
WP2LED24Y/PC2 large main
  • Covers footprint of traditional HID wall packs
  • WP2LED replaces up to 175W MH
  • 100,000-Hour LED lifespan
 View Technical Specs
View Price & Availability
Performance
Watts 24W
Color Temp 3000K (Warm)
Lumens 2,874 lm
Efficacy 115 lm/W
Color Accuracy 83 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V
208V 0.13A
240V 0.11A
277V 0.09A
Input Watts 25W
Dimensions
Link to Dimension Drawing

Weight: 9.6 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Wall mount only.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Optical
BUG Rating
B1 U3 G3
Construction
Thermal Management
Superior thermal management with die-cast aluminum heatsink
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Electrical
Driver
Constant Current, Class 2, 450mA, 50/60 Hz. 100 - 277V, 4kV surge protection

Recently Viewed Products

This is a link to the product MDLED4X12D10-20Y-W MDLED4X12D10-20Y-W
Multi 4X12W Led 3000K 20 Degrees White Gear Tray White Head 0-10V Dim

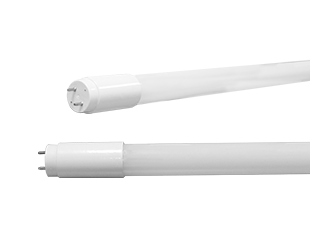

This is a link to the product T8-9.5-48G-850-SD-BYP T8-9.5-48G-850-SD-BYP
