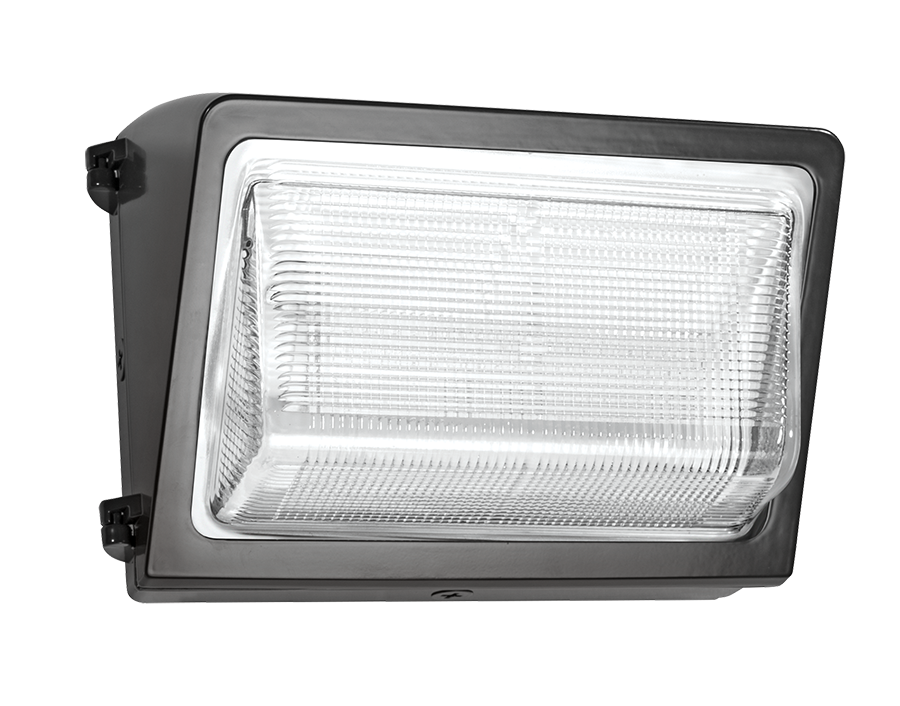

WP2LED37Y/480/PCS4
WP2LED37Y/480/PCS4
- Covers footprint of traditional HID wall packs
- WP2LED replaces up to 175W MH
- 100,000-Hour LED lifespan
Performance
| Watts | 37W |
| Color Temp | 3000K (Warm) |
| Lumens | 4,105 lm |
| Efficacy | 106.1 lm/W |
| Color Accuracy | 84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.3A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 38.7W |
Dimensions
Weight: 9.6 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Wall mount only.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Optical
BUG Rating
B1 U4 G3
Construction
Thermal Management
Superior thermal management with die-cast aluminum heatsink
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Electrical
Driver
Constant Current, Class 2, 450mA, 50/60 Hz. 480V, 4kV surge protection
