WP2LED49L-730WH/PCS4

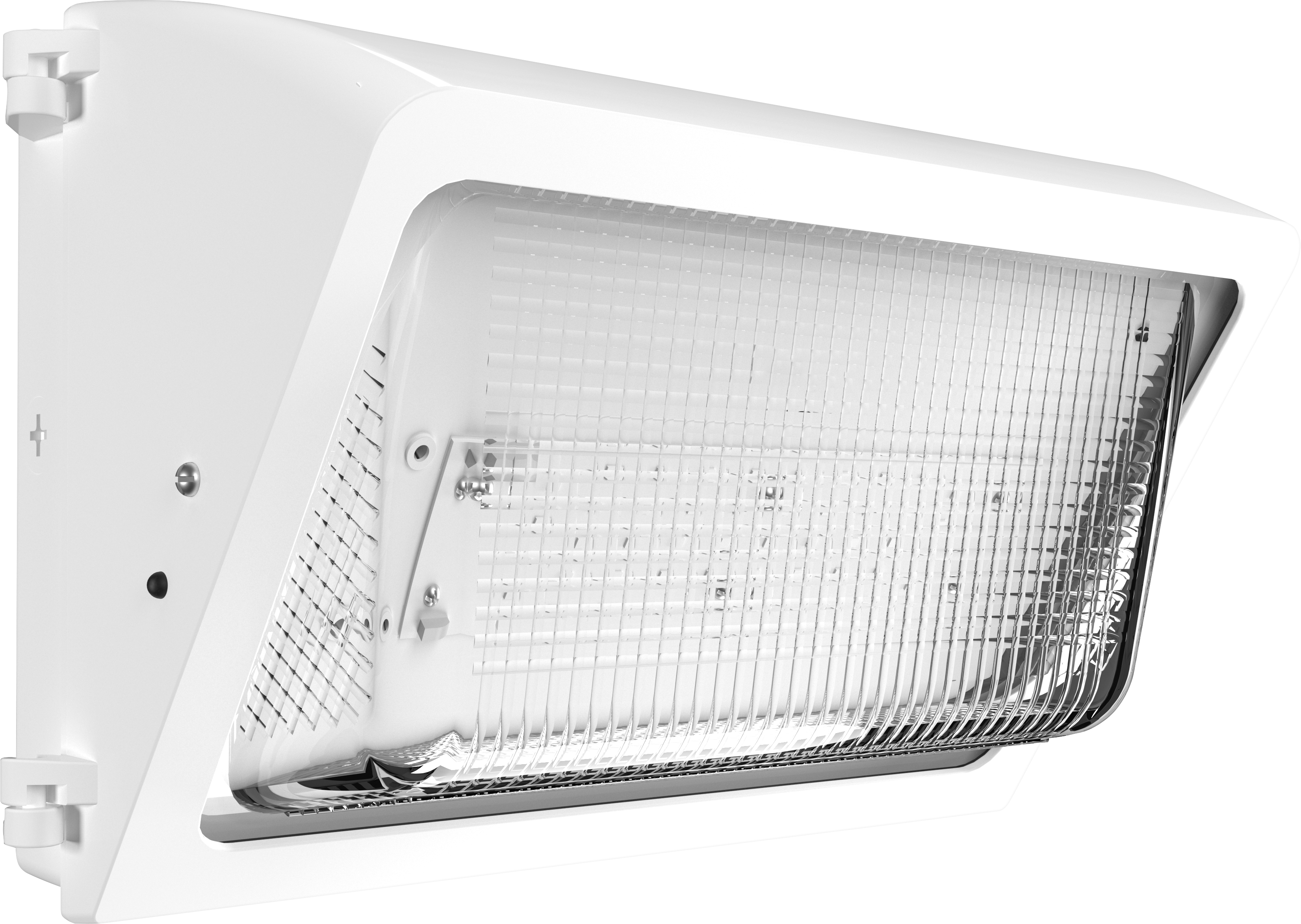

WP2LED49L-730WH/PCS4 large main
  • Affordable wall pack with traditional look
  • Ultra-high efficacy
  • Covers footprint of mid-size HID wall packs
  • 100,000-Hour LED lifespan
 View Technical Specs
View Price & Availability
Performance
Watts 34W
Color Temp 3000K (Warm)
Lumens 4,929 lm
Efficacy 156 lm/W
Color Accuracy 72 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V
208V
240V
277V
Input Watts 31.6W
Dimensions
Link to Dimension Drawing

Weight: 9.4 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PDDT7YBO
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
LEDs
Multip-chip, high-output, long-life LEDs
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Electrical
Drivers
Constant Current, 480V, 50/60 Hz, 480V: 0.07A
THD
4.28% at 480V
Power Factor
95.2% at 480V
