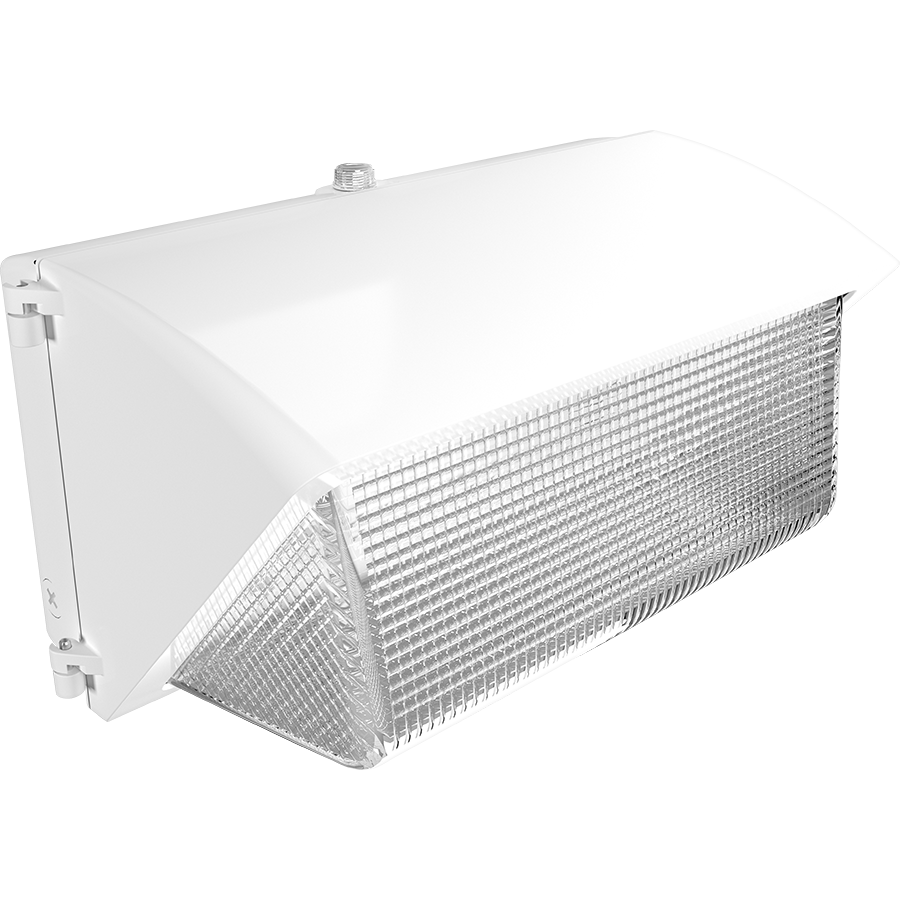

WP3LED75L-740WU/PCS2
WP3LED75L-740WU/PCS2
- Affordable wall pack with traditional look
- Ultra-high efficacy
- Covers footprint of large HID wall packs
- 100,000-Hour LED lifespan
Performance
| Watts | 51W |
| Color Temp | 4000K (Neutral) |
| Lumens | 7,702 lm |
| Efficacy | 158.1 |
| Color Accuracy | 72 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.43A |
| 208V | 0.25A |
| 240V | 0.21A |
| 277V | 0.18A |
| Input Watts | 48.7W |
Dimensions
Weight: 24.7 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PP3D32JG
DLC Product Code: PP3D32JG
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 200W Metal Halide
LED Characteristics
LEDs
Multip-chip, high-output, long-life LEDs
Construction
Cold Weather Starting
The minimum starting temperature is -22°F (-30°C)
Electrical
Driver
Constant Current, 120-277V, 50/60 Hz, 120V: 0.43A, 208V: 0.25A, 240V: 0.21A, 277V: 0.18A
THD
10.21% at 120V, 6.22% at 277V
Power Factor
99% at 120V, 98.7% at 277V
