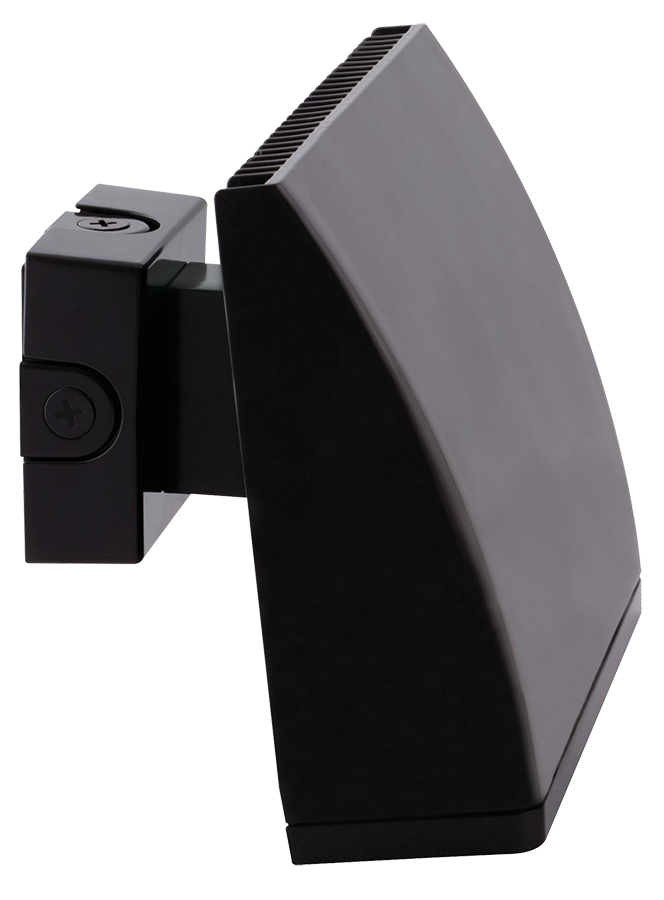

WPLEDC80Y/PCS2
WPLEDC80Y/PCS2
- High performance LED light engine
- Maintains 70% of initial lumens at 100,000-hours
- Weatherproof high temperature silicone gaskets
- Superior heat sinking with die cast aluminum housing and external fins
- Traditional wall pack look from the front
- 3 cutoff options
- 5-Year, No-Compromise Warranty
Performance
| Watts | 80W |
| Color Temp | 3000K (Warm) |
| Lumens | 9,649 lm |
| Efficacy | 116.8 |
| Color Accuracy | 72 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | 0.41A |
| 240V | 0.36A |
| 277V | 0.31A |
| Input Watts | 82.6W |

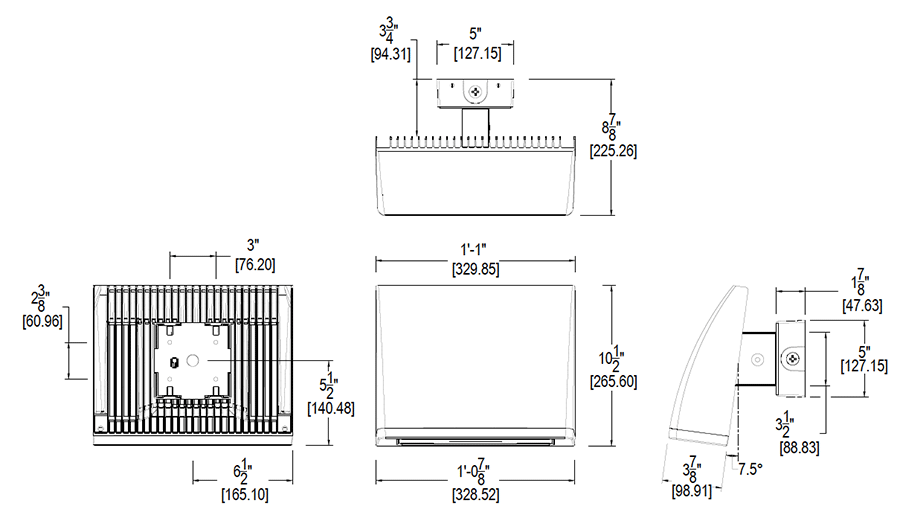

Dimensions
Weight: 17.6 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PSB85PRB
DLC Product Code: PSB85PRB
LED Characteristics
LEDs
Two (2) multi-chip, high-output, long-life LEDs
Electrical
Driver
Constant Current, Class 2, 120-277V, 50-60Hz, 120V: 0.71A, 208V: 0.41A, 240V: 0.36A, 277V: 0.31A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
6.04% at 120V, 10.38% at 277V
Power Factor
99.6% at 120V, 93.4% at 277V
Surge Protection
4 kV
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
