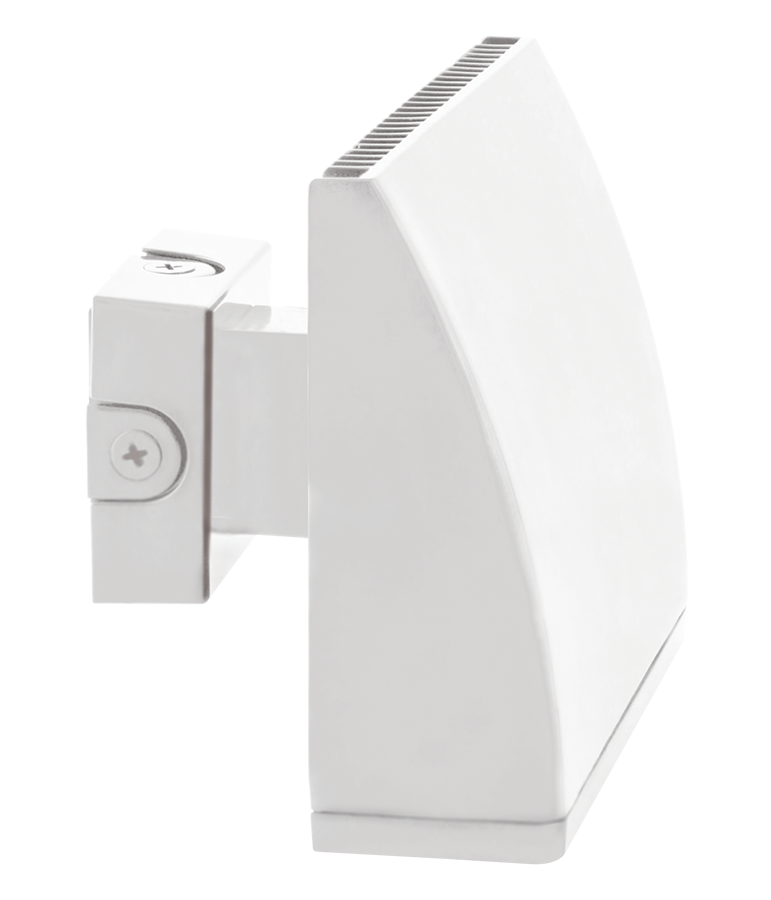

WPLEDFC52NW/D10
WPLEDFC52NW/D10
- High performance LED light engine
- Maintains 70% of initial lumens at 100,000-hours
- Weatherproof high temperature silicone gaskets
- Superior heat sinking with die cast aluminum housing and external fins
- Replaces 250W MH
- Traditional wall pack look from the front
- 3 cutoff options
- 5-Year, No-Compromise Warranty
Performance
| Watts | 52W |
| Color Temp | 4000K (Neutral) |
| Lumens | 7,253 lm |
| Efficacy | 129.5 lm/W |
| Color Accuracy | 76 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.52A |
| 208V | 0.37A |
| 240V | 0.32A |
| 277V | 0.28A |
| Input Watts | 56W |

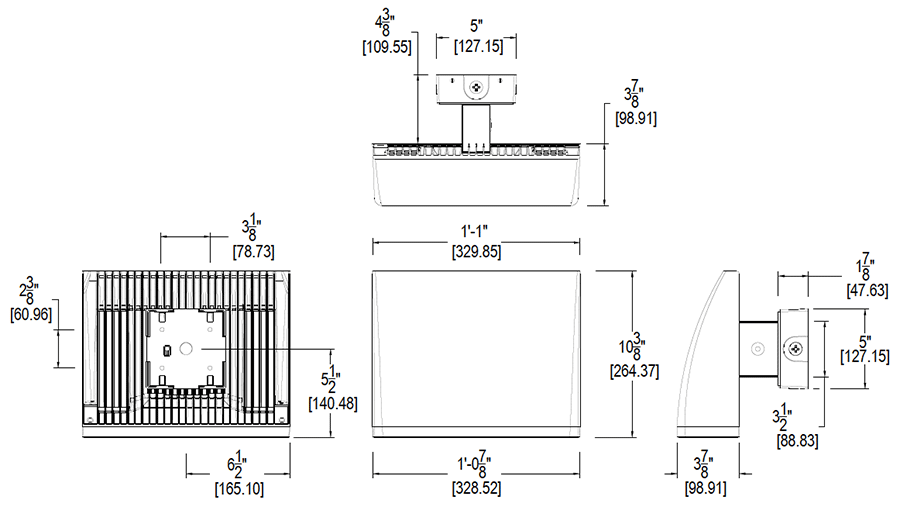

Dimensions
Weight: 17.7 lbs
Technical Specifications
Electrical
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
6.24% at 120V, 7.1% at 277V
Power Factor
99.3% at 120V, 97.2% at 277V
Compliance
UL Listed
Suitable for wet locations
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: P0000173D
DLC Product Code: P0000173D
LED Characteristics
LEDs
Two (2) multi-chip, high-output, long-life LEDs
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-52 results and TM-21 calculations
