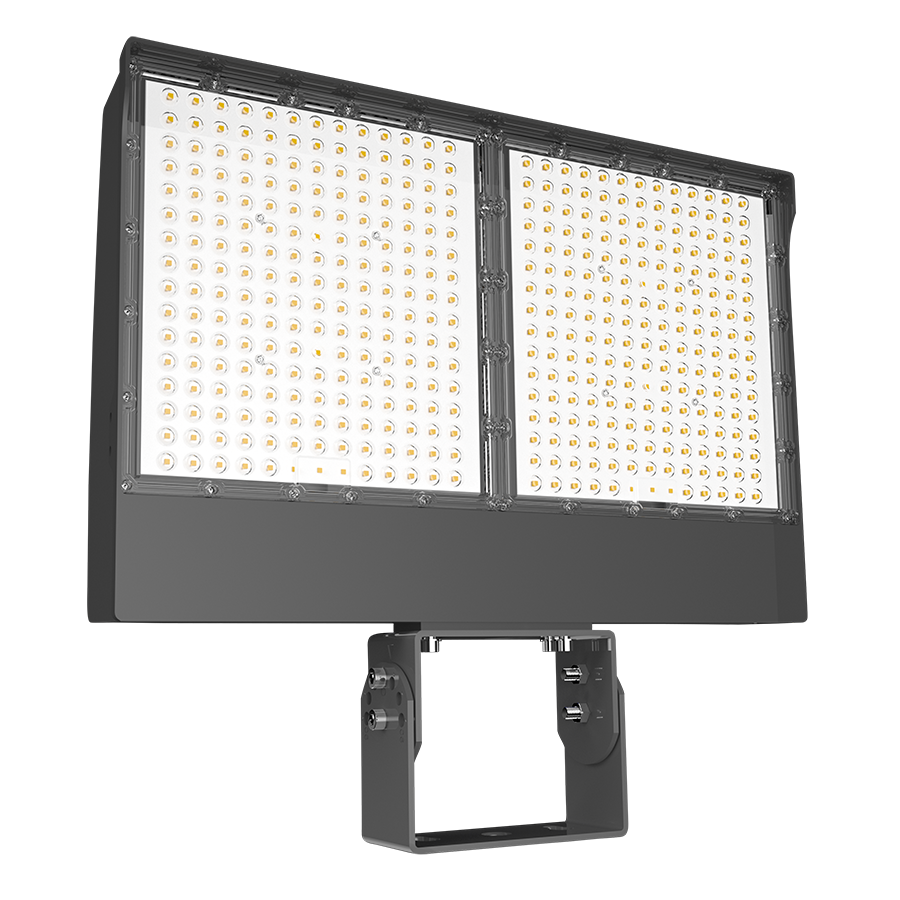

X17XFU330T/PCT

330W 3000/4000/5000K

3-Way field adjustability

0-10V Dimming, standard

100,000-hour LED lifespan

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	330W
Color Temp	3000/4000/5000K
Lumens	28,950-49,131 lm
Efficacy	136.5-175.6 lm/W
Color Accuracy	81-83 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	2.63A/2.06A/1.45A
208V	1.52A/1.19A/0.83A
240V	1.32A/1.03A/0.72A
277V	1.14A/0.89A/0.63A
Input Watts	173.61-328.73W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 20.6 lbs

Technical Specifications

Field Adjustability

3-Way Field Adjustable

Field Adjustable Light Output:
330/250/175W (factory default 330W)
Color temperature (selectable by 3000K, 4000K and 5000K)

Compliance

UL Listed

Suitable for wet locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

IP Rating

Ingress protection rating of IP65 for dust and water

DLC Listed

This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities.
DLC Product Code: S-7W7P18

Electrical

Driver

330W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 2.63A, 208V: 1.52A, 240V: 1.32A, 277V: 1.14A
250W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 2.06A, 208V: 1.19A, 240V: 1.03A, 277V: 0.89A
175W: Constant Current, Class 1, 120-277V, 50/60Hz, 120V: 1.45A, 208V: 0.83A, 240V: 0.72A, 277V: 0.63A

Dimming Driver

Driver includes wiring for 0-10V dimming systems. Dim as low as 10%.

THD

7.62% at 120V, 8.96% at 277V

Power Factor

99.9% at 120V, 95.5% at 277V

Photocell

120-277V Twistlock photocell included. Photocell is compatible with 120-277V.

Surge Protection

CM: 10 kV
DM: 6 kV

Shorting Cap

Shorting Cap included for Twistlock Receptacle

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Construction

Cold Weather Starting

The minimum starting temperature is -40°F (-40°C)

Ambient Temperature

Max Power Temp Rating: 104°F (40°C )
Middle Power Temp Rating: 47°C (116°F)
Low Power Temp Rating: 53°C (128°F)

Housing

Precision die-cast aluminum

Lens

Tempered glass

Reflector

Polycarbonate

Tilt Increment

Rotates in 30 degree increments

Effective Projected Area

EPA = 1.7

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Optical

NEMA Type

NEMA Beam Spread 7H x 6V

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Performance

Wattage Equivalency

Equivalent to 1,000W Metal Halide
