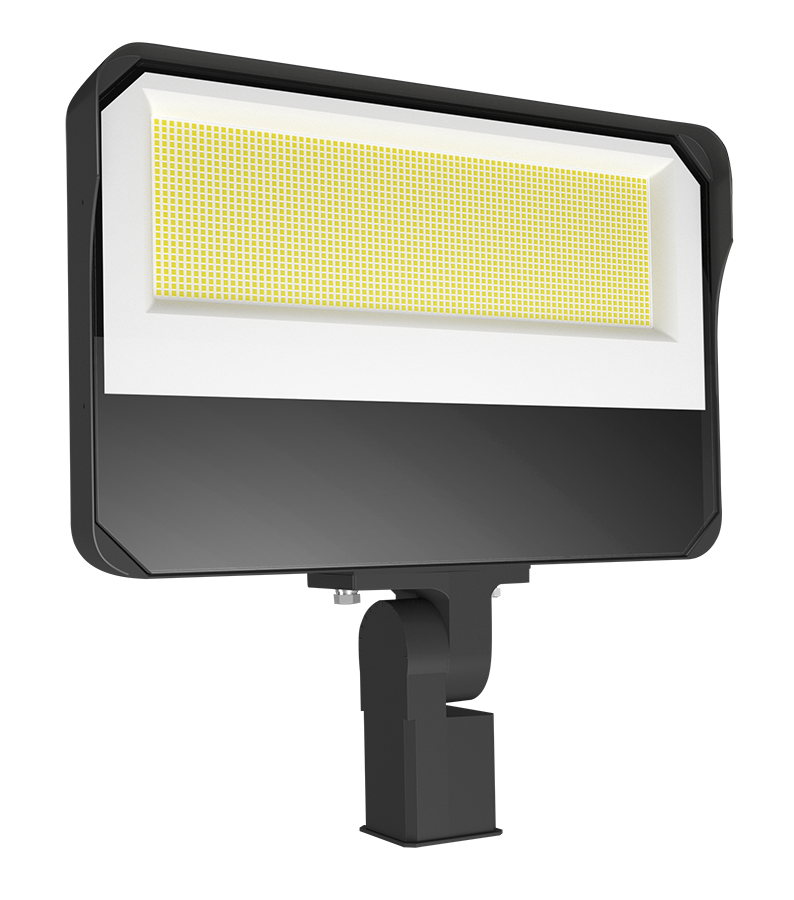

X34-450SF/480
X34-450SF/480
- 50,000-Hour LED lifespan
- DLC Premium Listed
- 0-10V dimming, standard
- 5-Year, limited warranty
Performance
| Watts | 450W |
| Color Temp | Field Adjustable 3000/4000/5000K |
| Lumens | 33,225-67,888 lm |
| Efficacy | 147.4-172.6 lm/W |
| Color Accuracy | 82-85 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 202.5-421.2W |
Dimensions
Weight: 26.0 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
450W at 50%/75%/100% Power Selectable (factory default 450W at 100% )
Color temperature (selectable by 3000K, 4000K and 5000K)
450W at 50%/75%/100% Power Selectable (factory default 450W at 100% )
Color temperature (selectable by 3000K, 4000K and 5000K)
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP66 for dust and water
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities.
DLC Product Code: S-S4T9FI
DLC Product Code: S-S4T9FI
Electrical
Driver
Constant Current, Class 1, 480V, 50/60Hz, 480V: 0.92A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
6.48% at 480V
Power Factor
95.3% at 480V
Surge Protection
4 kV
Photocell
Integrated photocell included with on/off switch
Optical
NEMA Type
NEMA Beam Spread 7H x 7V
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Performance
Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 2,000W Metal Halide
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Ambient Temperature
Max Power Temp Rating: 104°F (40°C )
Middle Power Temp Rating: 51°C (123°F)
Low Power Temp Rating: 60°C (139°F)
Middle Power Temp Rating: 51°C (123°F)
Low Power Temp Rating: 60°C (139°F)
Housing
Die-cast aluminum
Tilt Increment
-90° to +90°
Lens
Tempered glass
Reflector
Polyethylene Terephthalate (PET)
Effective Projected Area
EPA = 2.0
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Slipfitter with tilt angle in 10° increments
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
