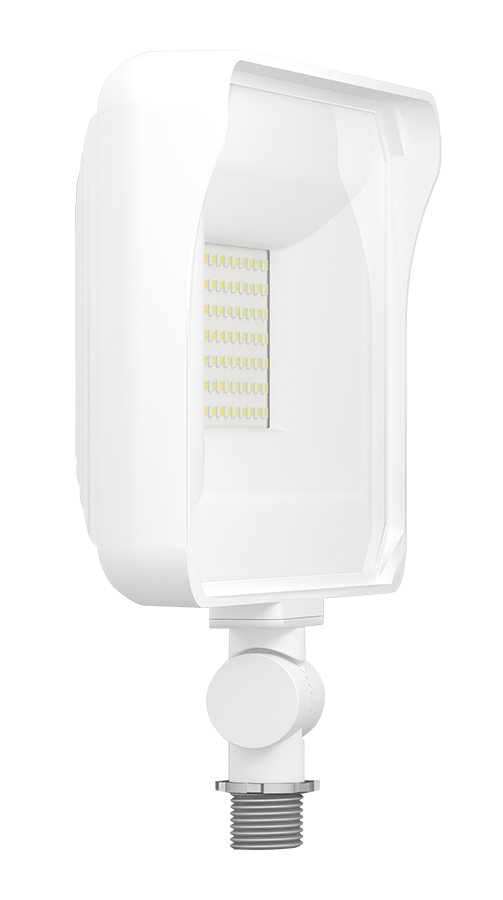

X34-65LW/120
X34-65LW/120
- General purpose floodlight
- Very wide 7H x 7V NEMA distribution
- Low profile and lightweight
- IP65 rating protects against dust and water
Performance
| Watts | 64W |
| Color Temp | 5000K (Cool) |
| Lumens | 7,601 lm |
| Efficacy | 120.5 lm/W |
| Color Accuracy | 81 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.57A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 63.1W |
Dimensions
Weight: 3.4 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations. Suitable for ground mounting.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
DLC Listed
This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: P3RDHMAS
DLC Product Code: P3RDHMAS
Electrical
Driver
Constant Current, 120V, 60 Hz, 120V: 0.57A
THD
14.45% at 120V
Power Factor
99% at 120V
Stepped Dimming
Integrated/embedded reverse Phase-Cut stepped luminance-level dimming control. Ten discrete dimming steps plus off and full on are accomplished by modification of the voltage, current, and wave form to produce varying light output. Controller is remote located from fixture or junction box, or can be located by the electrical panel.
Surge Protection
2 kV
Optical
NEMA Type
NEMA Beam Spread 7H x 7V
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
