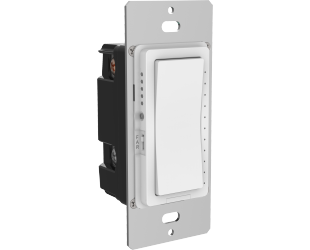

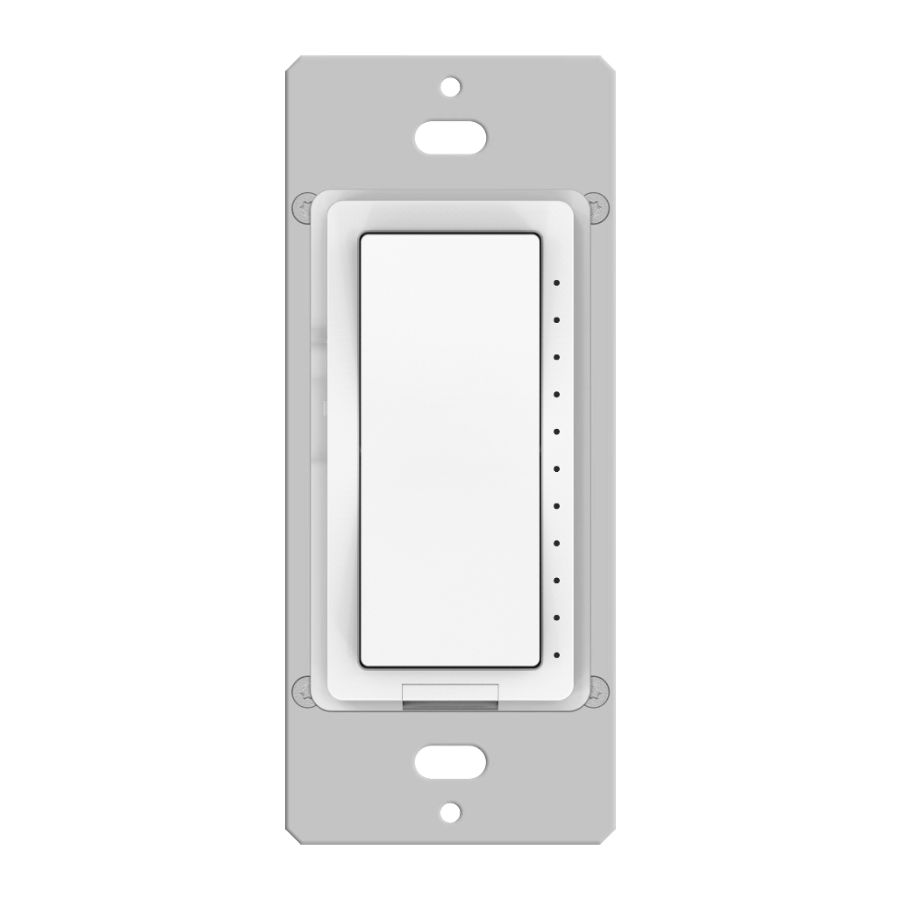

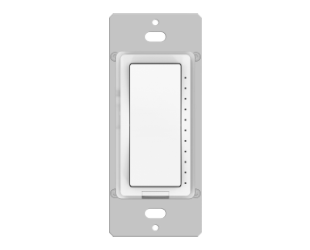

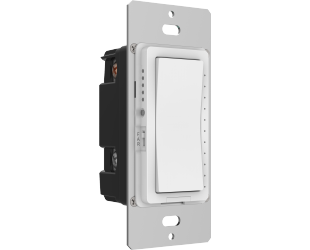

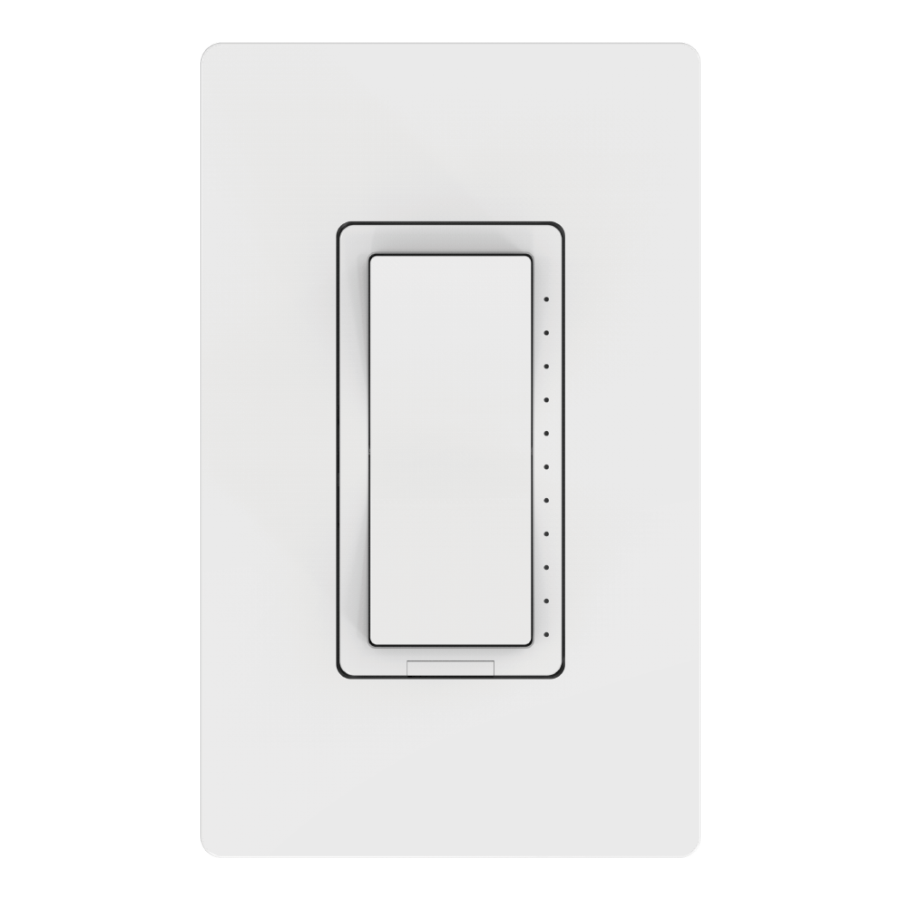

XDIM/BRIDGE/LCB
XDIM/BRIDGE/LCB
- Wirelessly enhance a Lightcloud Blue system with the premium features of Lightcloud Enterprise
- In-wall device for switching and dimming local load and any Lightcloud Blue-enabled device
- Dimming features both fade on/off and rapid full-on
- Set the max trim level for a zone or fixture to save energy
- Includes mounting hardware to replace single-gang wall switch
Dimensions
Weight: 0.4 lbs
Technical Specifications
Lightcloud
Lightcloud Blue
Lightcloud Blue is a Bluetooth Mesh wireless lighting control system that allows you to control RAB's various compatible devices. With RAB's patented Rapid Provisioning technology, devices can be quickly and easily commissioned for residential and large commercial applications using the Lightcloud Blue mobile app. Each device in a system can communicate with any other device, eliminating the need for a Gateway or Hub and maximizing the control system's reach.
DLC system - Interior: N1XMLOEATBA; Exterior: NHCZ2BIA17L
Learn more at www.lightcloud.com.
DLC system - Interior: N1XMLOEATBA; Exterior: NHCZ2BIA17L
Learn more at www.lightcloud.com.
Gateway Required
No
Communication Protocol
Bluetooth Mesh
Range
Indoor: Up to 60 feet between standard building materials. Building materials such as brick, concrete, and steel construction may require additional Lightcloud Blue devices to extend around an obstruction; Up to 200 feet clear line of sight.
Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners
Outdoor: Up to 60 feet clear line of sight; Up to 18 feet around corners
Spacing Criteria
Lightcloud Blue devices should be placed within the specified range to communicate within the Bluetooth Mesh network.
Max # of Devices to Control
Up to 200 devices
Factory Reset
Method 1: Delete from App
Open the app and access the device settings for the paired device. Be sure that the device is online and select 'Delete'.
Method 2: Manual
Press and hold the reset switch until the status indicator blinks red.
Open the app and access the device settings for the paired device. Be sure that the device is online and select 'Delete'.
Method 2: Manual
Press and hold the reset switch until the status indicator blinks red.
Status Indicator Light
Flashing red (1s on/1s off): Device is not provisioned
Solid green: Device is provisioned
Solid green: Device is provisioned
Performance
Product Type
Smart Dimmer Bridge
Description
Wirelessly enhance a Lightcloud Blue system with the premium features of Lightcloud Enterprise.
Application Type
Single-pole or 3-way
Electrical
Dimming Control Type
Selectable Phase: Forward/Reverse
Power Rating
500W
Load Switching Capacity
LED/CFL: 300W
INC/HAL/ELV: 500W
MLV: 400VA
INC/HAL/ELV: 500W
MLV: 400VA
Multi-gang Derating
When combining controls in the same wallbox, derating is required.
LED/CFL
Not Ganged: 300W max load
End of Gang: 250W max load
Middle of Gang: 200W max load
INC/HAL/ELV/MLV
Not Ganged: 500W max load
End of Gang: 400W max load
Middle of Gang: 300W max load
LED/CFL
Not Ganged: 300W max load
End of Gang: 250W max load
Middle of Gang: 200W max load
INC/HAL/ELV/MLV
Not Ganged: 500W max load
End of Gang: 400W max load
Middle of Gang: 300W max load
Self Calibration
Via dip switch choose a self calibration option based on the fixtures being controlled:

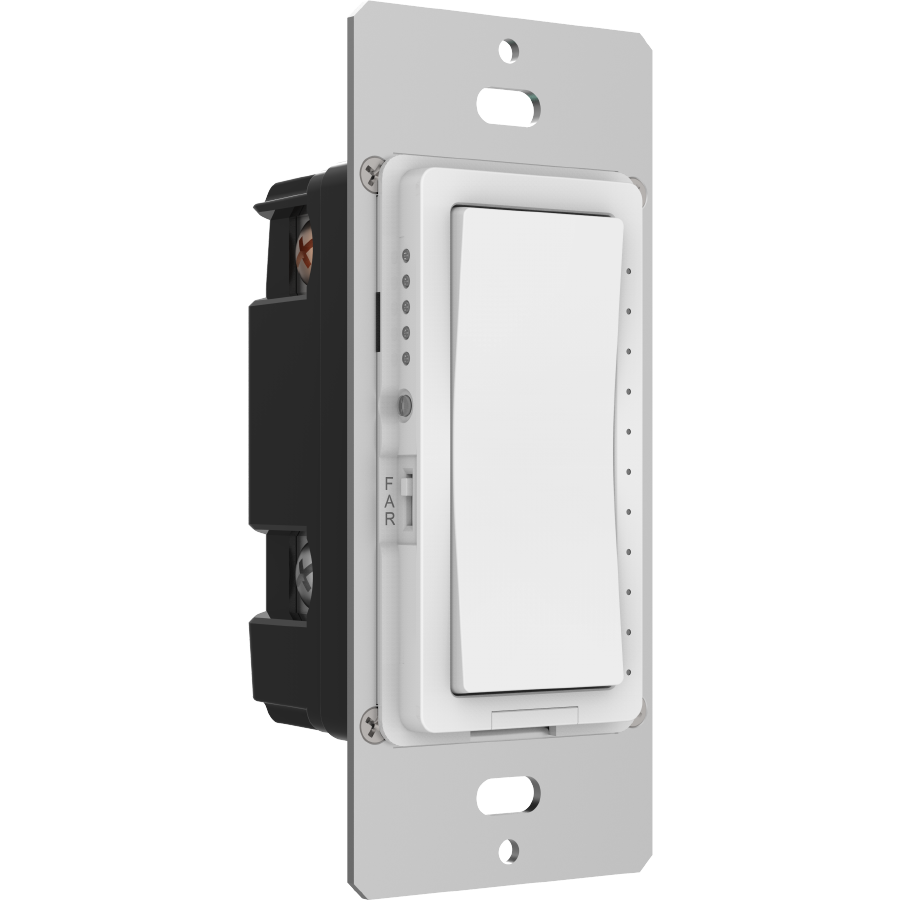

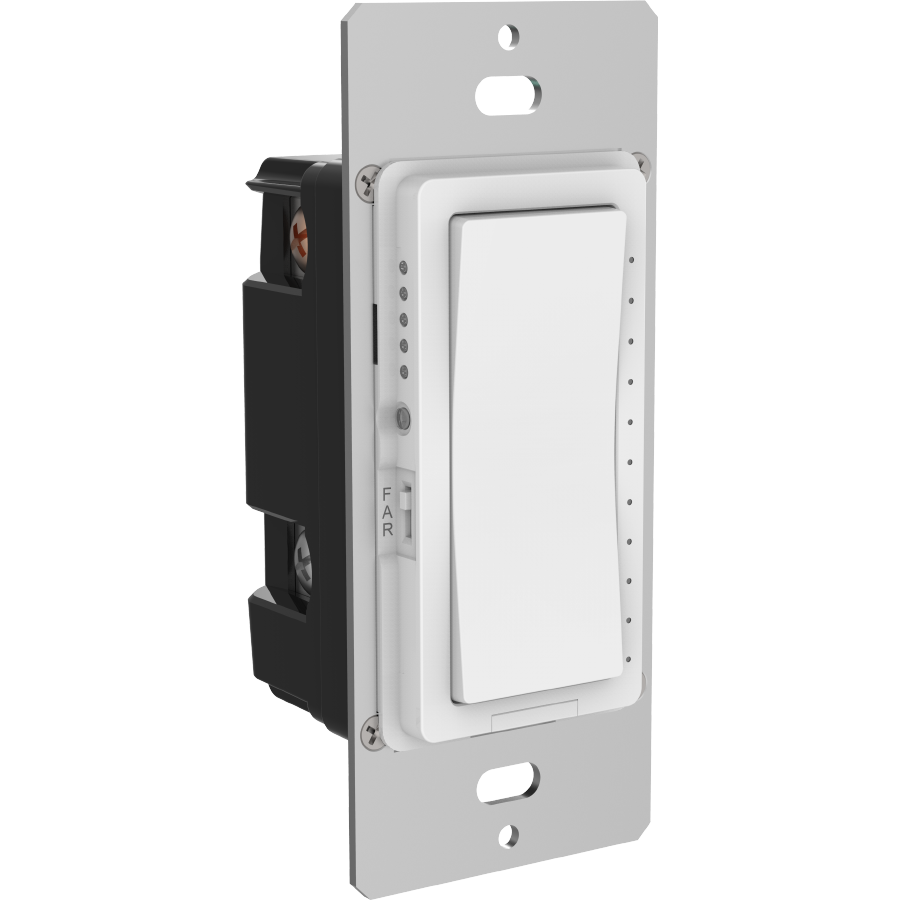

F - Forward Phase
A - Auto Detect Forward/Reverse Phase
R - Reverse Phase
Note: after dip switch adjustment, power device off and then power on again.
F - Forward Phase
A - Auto Detect Forward/Reverse Phase
R - Reverse Phase
Note: after dip switch adjustment, power device off and then power on again.
Power Cut Off Switch
Push in to connect to line voltage.
Pull out to disconnect to line voltage.
Note: after dip switch adjustment, power device off and then power on again.
Pull out to disconnect to line voltage.
Note: after dip switch adjustment, power device off and then power on again.
Input Voltage
120-277V
Operating Frequency
60 Hz
Operating Temperature
32°F to 104°F (0°C to 40°C)
Installation
Mounting
Requires a U.S. wallbox with 2 inch depth (recommended) and a minimum depth of 1.46 inches
Neutral Wire Required
Optional.
Power usage can only be reported when neutral-wire is connected.
Power usage can only be reported when neutral-wire is connected.
Construction
Shape
Rectangle
Finish
Matte White
Enclosure Material
Plastic
Compliance
Listings
UL 1472
Environment
Suitable for use indoors in dry and damp environments.
DLC NLC Listed
This product is on the Design Lights Consortium (DLC) Network Lighting Controls (NLC) Qualified Products List and is eligible for rebates from DLC Member Utilities.
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
DLC system - N1XMLOEATBA (Interior); NHCZ2BIA17L (Exterior)
Certification Model Number
XDIM/BRIDGE/LCB
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Other
3-Year Limited Warranty
The RAB 3-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty
