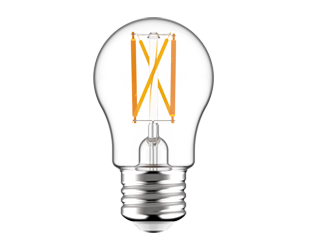

A15-5-E26-922/30-F-C-WGD
A15-5-E26-922/30-F-C-WGD
- Replacement for conventional decorative lamps
- Filament LED construction gives a unique traditional look and feel for decorative and ambient applications
- Produces rich and vibrant colors, >90CRI
- Rated for use in enclosed and open fixtures in dry and damp locations
- Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs
- Title 20 Compliant, ENERGY STAR Compliant, UL Listed
- Smooth warm to dim transition between 2200K to 3000K color temperatures
- Uniform dimming down to 10% (See Dimmer Compatibility List)
Performance
| Watts | 5W |
| Color Temp | |
| Lumens | 450 lm |
| Efficacy | 90 |
| Color Accuracy | 2200/3000K CRI |
| L70 Lifespan |
| Input Voltage | 120V |
| Power Factor | >0.7 |
| Flicker | <30% |
| THDi | N/A |
Dimensions
Weight: 0.1 lbs
Technical Specifications
Performance
Product Type
Decorative
Input Wattage
5W
Lumens
450lm
Efficacy
90lm/W
L70 Lifespan
15,000-Hour LED lifespan based on IES LM-70 results
Wattage Equivalency
40W Incandescent
Compliance
Enclosed Fixtures
Suitable for use in enclosed fixtures
LED Characteristics
Color Temperature
2200/3000K
Color Accuracy (CRI)
>90 CRI
Beam Angle
360°
Electrical
Power Factor
>0.7
Dimmable
Yes
Flicker
<30%
Operating Temperature
-20°C to 45°C (-4°F to 113°F)
Input Voltage
120V
Operating Frequency
50/60Hz
Construction
Shape
A15
Endcap Material
Nickel-Aluminum
Enclosure Material
Glass
Installation
Base Type
E26 Edison
Other
3-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Recently Viewed Products
VANLED75FFR/PCS2
Canopy Lights 9519 Lumens Vanled 75W Flat Frosted Lens 277V Swivel Photocell Bronze
RWLED3T125Y/PCT
Roadway Lights 14119 Lumens Type Iii 125W 3000K 120V-277V With Adaptor Twistlock Photocell Bronze
HALVS18L935-CS-K/BL
Architectural 496 Lumens Halvs Forward & Up/Down Light 25W 90Cri 3500K Crushed Sedona Lens Black Finish Bi-Level Control

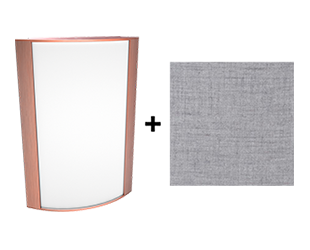

HALVS18L940-LH-CU/LC
