• Energy-efficient replacement for incandescent and halogen lamps
  • Durable plastic construction reduces risk of breakage
  • Rated for use in enclosed and open fixtures in dry or damp locations
  • Frosted lens delivers smooth, diffuse light
  • Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs
View Technical Specs
Performance
Watts 9W
Color Temp 2700K
Lumens 800 lm
Efficacy 89
Color Accuracy 80 CRI
L70 Lifespan 15,000 Hours
Type
120V
208V
240V
277V
Input Watts 9W
Dimensions
Link to Dimension Drawing
Technical Specifications
Performance
Product Type
A-line, 80 CRI Non-Dimmable
Description
The classic bulb shape you know, reimagined with efficient LED technology for consistent, dependable lighting.
Wattage Equivalency
60W Incandescent
Input Wattage
9W
Lumens (Nominal)
800lm
Efficacy
89lm/W
L70 Lifespan
15,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current 120V 50/60 Hz; 120V: 80mA
THD
<120%
Power Factor
0.7
Dimmable
No
Input Voltage
120V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
80mA
Flicker
_85%
Construction
Operating Temperature Range
-4°F - 104°F (-20°C - 40°C)
Shape
A19
Finish
White
Endcap Material
Nickel-plated aluminum
Lens Finish
Frosted
LED Characteristics
Beam Angle
160°
Color Temperature
2700K
Color Accuracy (CRI)
≥80 CRI
R9 Value
High color performance with R9 greater than 0
Color Consistency
<7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Installation
Base Type
E26 Edison
Compliance
ETL Listed
This product has been tested by Intertek and found in compliance with accepted national standards.
Environment
Suitable for use indoors in dry and damp environments.
Fixture Rating
Suitable for use in enclosed fixtures
Energy Star Approved
No
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Certification Model Number
A30005(A19-9-E26-827-ND)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
3-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Recently Viewed Products

 This is a link to the product HALV18L927-CW-W/LC/E2 HALV18L927-CW-W/LC/E2
Architectural 622 Lumens Halv Forward Light 25W 90Cri 2700K Crushed Polar White White Finish Lightcloud Controller Battery Backup
 This is a link to the product A19-9-E26-827-ND A19-9-E26-827-ND
Led Bulb A19 9W 60Eq 800Lm E26 Cri80 2700K Nd
 This is a link to the product NDTRIM3R80-B-TL NDTRIM3R80-B-TL
Led Trim Mod 3"Rnd 80Deg Black Gloss Trimless
 This is a link to the product ALED4T78SFNRG/480/7PR ALED4T78SFNRG/480/7PR
Arealights 10126 Lumens Aled Type Iv Slipfitter 4000K 78W 480V 7-Pin Receptacle Roadway Gray
 This is a link to the product ALED5S78Y/D10/LC ALED5S78Y/D10/LC
Area Lights 9437 Lumens Aled 78W 3000K 0-10V Dimming 120V-277V Pole Mount Lightcloud Controller Bronze
 This is a link to the product ALED4T78K/480/D10 ALED4T78K/480/D10
Arealights 10491 Lumens Aled Type Iv 8In Pole Arm 5000K 78W 480V 0-10V Dimming Black
 This is a link to the product HALV18L927-CW-W/LC/E2 HALV18L927-CW-W/LC/E2
Architectural 622 Lumens Halv Forward Light 25W 90Cri 2700K Crushed Polar White White Finish Lightcloud Controller Battery Backup
 This is a link to the product A19-9-E26-827-ND A19-9-E26-827-ND
Led Bulb A19 9W 60Eq 800Lm E26 Cri80 2700K Nd

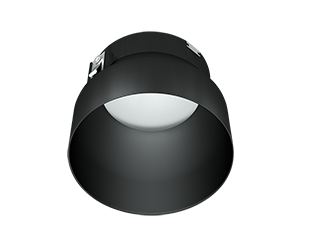

 This is a link to the product NDTRIM3R80-B-TL NDTRIM3R80-B-TL
