A22-4T70W/480
A22-4T70W/480
70W
- DLC Premium listed
- Adjustable Universal Pole Mount
- 7-Pin Receptacle with Shorting Cap
- IP66 Rated
- 100,000-Hour LED lifespan
- 5-Year, limited warranty
Performance
| Watts | 70/60/50W |
| Color Temp | |
| Lumens | 7,306-10,597 lm |
| Efficacy | 136-158.8 lm/W |
| Color Accuracy | 81-84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 49.5-71.2W |
Dimensions
Weight: 11.2 lbs
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
70W/60W/50W (factory default: 70W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default:4000K)
70W/60W/50W (factory default: 70W)
Color Temperature Selectable:
3000K, 4000K and 5000K (factory default:4000K)
Compliance
UL Listed
Suitable for wet locations. Suitable for mounting within 4 ft (1.2m) of the ground.
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP66 for dust and water
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities.
DLC Product Code: S-WF6XXC
DLC Product Code: S-WF6XXC
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
70W: Replaces up to 350W Metal Halide (MH) or 200W High Pressure Sodium (HPS)
60W: Replaces up to 250W Metal Halide (MH) or 200W High Pressure Sodium (HPS)
50W: Replaces up to 200W Metal Halide (MH) or 150W High Pressure Sodium (HPS)
60W: Replaces up to 250W Metal Halide (MH) or 200W High Pressure Sodium (HPS)
50W: Replaces up to 200W Metal Halide (MH) or 150W High Pressure Sodium (HPS)
Electrical
Driver
Constant Current, Class 1, 480V, 50/60 Hz:
70W: 480V: 0.15A
60W: 480V: 0.13A
50W: 480V: 0.10A
70W: 480V: 0.15A
60W: 480V: 0.13A
50W: 480V: 0.10A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
13.92% at 480V
Power Factor
91.8% at 480V
7-Pin Receptacle with Shorting Cap
ANSI C136.41 7-pin receptacle, compatible with wireless control systems
Surge Protection
6 kV
Optical
IES Classification
The Type IV distribution (also known as a Forward Throw) is especially suited for mounting on the sides of buildings and walls, and for illuminating the perimeter of parking areas. It produces a semicircular distribution with essentially the same candlepower at lateral angles from 90° to 270°.
BUG Rating
Type 4
70W: B2 U0 G2
60W: B2 U0 G2
50W: B2 U0 G2
70W: B2 U0 G2
60W: B2 U0 G2
50W: B2 U0 G2
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Lens
Polycarbonate lens
Housing
Die-cast aluminum
Effective Projected Area
1 Fixture: 0.3
2 Fixtures: 0.7
3 Fixtures: 1.2
4 Fixtures: 1.2
2 Fixtures: 0.7
3 Fixtures: 1.2
4 Fixtures: 1.2
Finish
Formulated for high durability and long-lasting color
Gaskets
High-temperature silicone gaskets
Green Technology
Mercury and UV free. RoHS-compliant components.
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Recently Viewed Products
IVAT3-100LPA750ZU/WS2/LC
Area Lights 11359 Lumens Ivat3 Type Iii 94W Universal Pole Mount 70Cri 5000K Bronze 120V-277V 0-10V Dimming 20 Feet Lens Wattstopper Sensor Lightcloud Controller
ALED2T50SFW/WS2
Arealights 7070 Lumens Aled Type Ii Slipfitter 5K 50W 120V-277V Multi-Level Sensor With 20 Feet Lens White

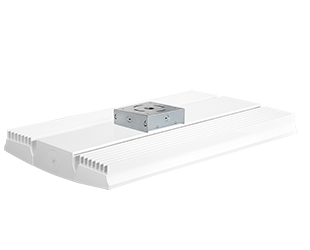

RAILP185NW/D10
