A34T4MWM
150W 3000/4000/5000K
- 100,000-hour LED Life
- 0-10V dimming standard
- IP65 rating protects against dust and water
- 5-Year, limited warranty
Performance
| Watts | 150/125/100W |
| Color Temp | 3000/4000/5000K |
| Lumens | 15,927-24,630 lm |
| Efficacy | 142.7-179.9 lm/W |
| Color Accuracy | 82-84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 1.26A/1.00A/0.83A |
| 208V | 0.80A/0.60A/0.60A |
| 240V | 0.70A/0.53A/0.50A |
| 277V | 0.59A/0.46A/0.39A |
| Input Watts | 94.8-151.1W |
Dimensions
Technical Specifications
Field Adjustability
Field Adjustable
Field Adjustable Light Output:
150W/125W/100W (factory default 125W)
Color temperature selectable by 3000K, 4000K and 5000K (factory default 4000K)
150W/125W/100W (factory default 125W)
Color temperature selectable by 3000K, 4000K and 5000K (factory default 4000K)
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP65 for dust and water
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities.
DLC Product Code: S-L5W7KR
DLC Product Code: S-L5W7KR
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
150W: Replaces up to 750W Metal Halide (MH) or 400W High Pressure Sodium (HPS)
125W: Replaces up to 400W Metal Halide (MH) or 400W High Pressure Sodium (HPS)
100W: Replaces up to 400W Metal Halide (MH) or 310W High Pressure Sodium (HPS)
125W: Replaces up to 400W Metal Halide (MH) or 400W High Pressure Sodium (HPS)
100W: Replaces up to 400W Metal Halide (MH) or 310W High Pressure Sodium (HPS)
Electrical
Driver
150W: Constant Current, Class 1, Class P, 120-277V, 50/60 Hz,120V: 1.26A, 208V: 0.80A, 240V: 0.70A, 277V: 0.59A
125W: Constant Current, Class 1, Class P, 120-277V, 50/60 Hz,120V: 1.00A, 208V: 0.60A, 240V: 0.53A, 277V: 0.46A
100W: Constant Current, Class 1, Class P, 120-277V, 50/60 Hz,120V: 0.83A, 208V: 0.60A, 240V: 0.50A, 277V: 0.39A
125W: Constant Current, Class 1, Class P, 120-277V, 50/60 Hz,120V: 1.00A, 208V: 0.60A, 240V: 0.53A, 277V: 0.46A
100W: Constant Current, Class 1, Class P, 120-277V, 50/60 Hz,120V: 0.83A, 208V: 0.60A, 240V: 0.50A, 277V: 0.39A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
Surge Protection
L-L: 6 kV; L/N-G: 6 kV
Photocell
Integrated photocell included with on/off switch
Optical
IES Classification
The Type IV distribution (also known as a Forward Throw) is especially suited for mounting on the sides of buildings and walls, and for illuminating the perimeter of parking areas. It produces a semicircular distribution with essentially the same candlepower at lateral angles from 90° to 270°.
BUG Rating
150W: B3 U0 G3
125W: B3 U0 G3
100W: B3 U0 G2
125W: B3 U0 G3
100W: B3 U0 G2
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Lens
Clear polycarbonate lens
Housing
Die-cast aluminum housing, lens frame and mounting arm
Effective Projected Area
EPA = 0.3
Vibration Rating
3G
Finish
Formulated for high durability and long-lasting color
Green Technology
Includes recycled plastic and RoHS-compliant components.
Installation
Mounting
Wall mount
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Recently Viewed Products
RWLED3T150SFYRG/D10
Roadway Lights 15966 Lumens Type Iii 150W 3000K 120V-277V Slipfitter Mount 0-10V Dimming Roadway Gray
ALED2T125RG/WS4
Arealights 15882 Lumens Aled Type Ii 8In Pole Arm 5K 125W 120V-277V Multi-Level Sensor With 40 Feet Lens Roadway Gray
GN4LED13YRSTG
Decorative 514 Lumens Gooseneck 13W 3000K 20 Inches High & 19 Inches From The Wall Straight Shade Rectangular 15 Inches Green
IVAFT-75LSF730GU/WS
Area Lights 7460 Lumens Ivaft Forward Throw 67W Slipfitter Mount 70Cri 3000K Roadway Gray 120V-277V 0-10V Dimming 8 Feet Lens Wattstopper Sensor
RWLED3T150SFYRG/D10
Roadway Lights 15966 Lumens Type Iii 150W 3000K 120V-277V Slipfitter Mount 0-10V Dimming Roadway Gray
ALED2T125RG/WS4
Arealights 15882 Lumens Aled Type Ii 8In Pole Arm 5K 125W 120V-277V Multi-Level Sensor With 40 Feet Lens Roadway Gray

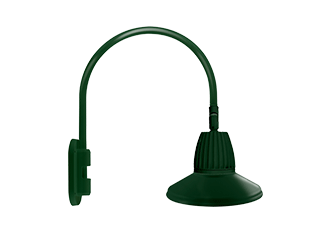

GN4LED13YRSTG
