ALED3T50SF/480/D10/LC
ALED3T50SF/480/D10/LC
- 66% energy cost savings vs. HID
- 100,000-hour LED lifespan
- 5-Year, No-Compromise Warranty
Performance
| Watts | 50W |
| Color Temp | 5000K (Cool) |
| Lumens | 6,675 lm |
| Efficacy | 123.7 lm/W |
| Color Accuracy | 71 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 54W |
Dimensions
Weight: 32.0 lbs
Technical Specifications
Installed with Lightcloud
Lightcloud is a commercial wireless lighting control system fully developed and supported by RAB. It's powerful and flexible, yet easy to use and install.
Learn MoreLightcloud
Lightcloud Controller Installed
Integrated/embedded networked lighting control, luminaire-level lighting control. Fixture, Zone, and plug-load control from one powerful device. LLLC - capable of switching, 0-10Vdimming, power/energy monitoring. Can also be used to extend the range of the Lightcloud mesh network communication protocols. Offers the capability to set the maximum light output to a less-than-maximum state of an individual luminaire at the time of installation or commissioning. The High-End trim functionality is field reconfigurable via the Lightcloud mesh network communication protocols. The Lightcloud controller can be attached to the fixture, junction box, or electrical panel.
DLC system - NHCZ2BIA17L
Learn more at www.lightcloud.com
DLC system - NHCZ2BIA17L
Learn more at www.lightcloud.com
Compliance
UL Listed
Suitable for wet locations as a downlight
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities.DLC Product Code: PM1Z349P
IP Rating
Ingress protection rating of IP66 for dust and water
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 200W Metal Halide
Optical
IES Classification
The Type III distribution is ideal for roadway, general parking and other area lighting applications where a larger pool of lighting is required. It is intended to be located near the side of the area, allowing the light to project outward and fill the area.
BUG Rating
B1 U0 G2
LED Characteristics
LEDs
Multi-chip, high-output, long-life LEDs
Color Consistency
7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Electrical
Driver
Constant Current, Class 2, 1400mA, 347-480V, 50-60Hz, 0.13A, Power Factor 99%
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%. See dimmer compatibility guide here.
THD
14.4% at 480V
Power Factor
90.1% at 480V
Ballast Volts
480V
Surge Protection
6 kV surge suppression protection tested in accordance with IEEE/ANSI C62.41.2.
Construction
Ambient Temperature
Suitable for use in up to 104°F (40°C)
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Thermal Management
Superior thermal management design with external Air-Flow fins provides maximum operational life, even in high ambient temperature environments
Housing
Die-cast aluminum housing, lens frame and mounting arm
Reflector
Specular vacuum-metallized polycarbonate
Gaskets
High-temperature silicone gaskets
Bracket EPA
2.0.
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Slipfitter 180° pivot available for mounting on 2 3/8" tenon
Other
Patents
The ALED™ design is protected by patents pending in the U.S., Canada, China, Taiwan and Mexico.
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Recently Viewed Products
RWLED3T78SF/D10
Roadway Lights 9263 Lumens Type Iii 78W 5000K 120V-277V Slipfitter Mount 0-10V Dimming Bronze
GN1LED26NACI
Decorative 1487 Lumens Gooseneck 26W 4000K 24 Inches Arm Angled Cone Flood 15 Inches Ivory
ALED2T125SFK/480/D10/7PR
Arealights 15882 Lumens Aled Type Ii Slipfitter 5000K 125W 480V 0-10V Dimming 7-Pin Receptacle Black
FFLED26TN/480/PCS4
Flood 3574 Lumens Ffled 26W 7Hx6V 480W Swivel Photocell 4000K Neutral Led Trunnion Bronze

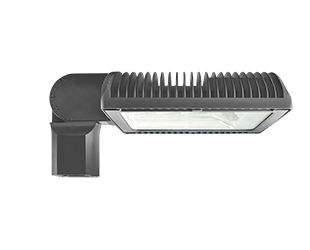

RWLED3T78SF/D10
Roadway Lights 9263 Lumens Type Iii 78W 5000K 120V-277V Slipfitter Mount 0-10V Dimming Bronze

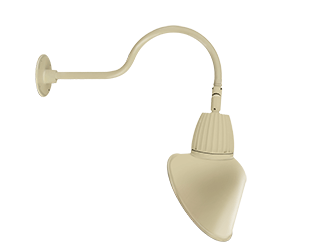

GN1LED26NACI
