ARBAY2-120N/LCS/8CP2
ARBAY2-120N/LCS/8CP2 large main
  • High efficiency. Low price.
  • Ideal for industrial warehouse spaces
  • 100,000 hour LED lifespan
  • 5-Year, limited warranty
 View Technical Specs
View Price & Availability
Performance
Watts 120W
Color Temp 4000K (Neutral)
Lumens 16,298 lm
Efficacy 144.4
Color Accuracy 84 CRI
L70 Lifespan 100,000 Hours
Type Constant Current
120V
208V 0.57A
240V 0.49A
277V 0.42A
Input Watts 112.9W
Dimensions
Link to Dimension Drawing

Weight: 13.3 lbs

Technical Specifications
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: PMQ3SJXB
Construction
Operating Temperature
-4°F(-20°C) to 122°F ( 50°C)
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
LEDs
Multi-chip, high-output, long-life LEDs
Electrical
Driver
Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 0.97A, 208V: 0.57A, 240V: 0.49A, 277V: 0.42A
THD
7.31% at 480V
Power Factor
98.1% at 480V

Recently Viewed Products

This is a link to the product ARBAY2-120N/LCS/8CP2 ARBAY2-120N/LCS/8CP2
Aerobay 2Ft 120W 4000K 277V Dimmable Lightcloud Sensor 8Ft Cord & Plug White
This is a link to the product MASI16-80YW/D10 MASI16-80YW/D10
Canopy Lights 11533 Lumens Masi16 Gas Station 16 Inch 80W 3000K 0-10V Dimming 120V-277V Dimming
This is a link to the product EZLED78SF/PCS EZLED78SF/PCS
Floodlights 8859 Lumens Ezled 78W Slipfitter Mount 5000K Nema 3Hx3V 120V-277V 120V Swivel Pgotocell Bronze
This is a link to the product ALED2T78SFY/480/D10/7PR ALED2T78SFY/480/D10/7PR
Arealights 9336 Lumens Aled Type Ii Slipfitter 3000K 78W 480V 0-10V Dimming 7-Pin Receptacle Bronze

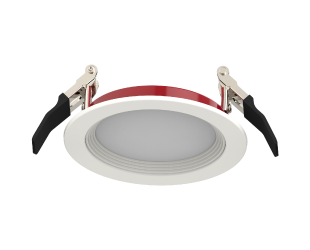

This is a link to the product FWAFER4B FWAFER4B
