ARBAY2-160N/PIR/SP10
ARBAY2-160N/PIR/SP10
- High efficiency. Low price.
- Ideal for industrial warehouse spaces
- 100,000 hour LED lifespan
- 5-Year, limited warranty
Performance
| Watts | 160W |
| Color Temp | 4000K (Neutral) |
| Lumens | 22,872 lm |
| Efficacy | 143.8 |
| Color Accuracy | 84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 1.32A |
| 208V | 0.77A |
| 240V | 0.67A |
| 277V | 0.58A |
| Input Watts | 159.1W |

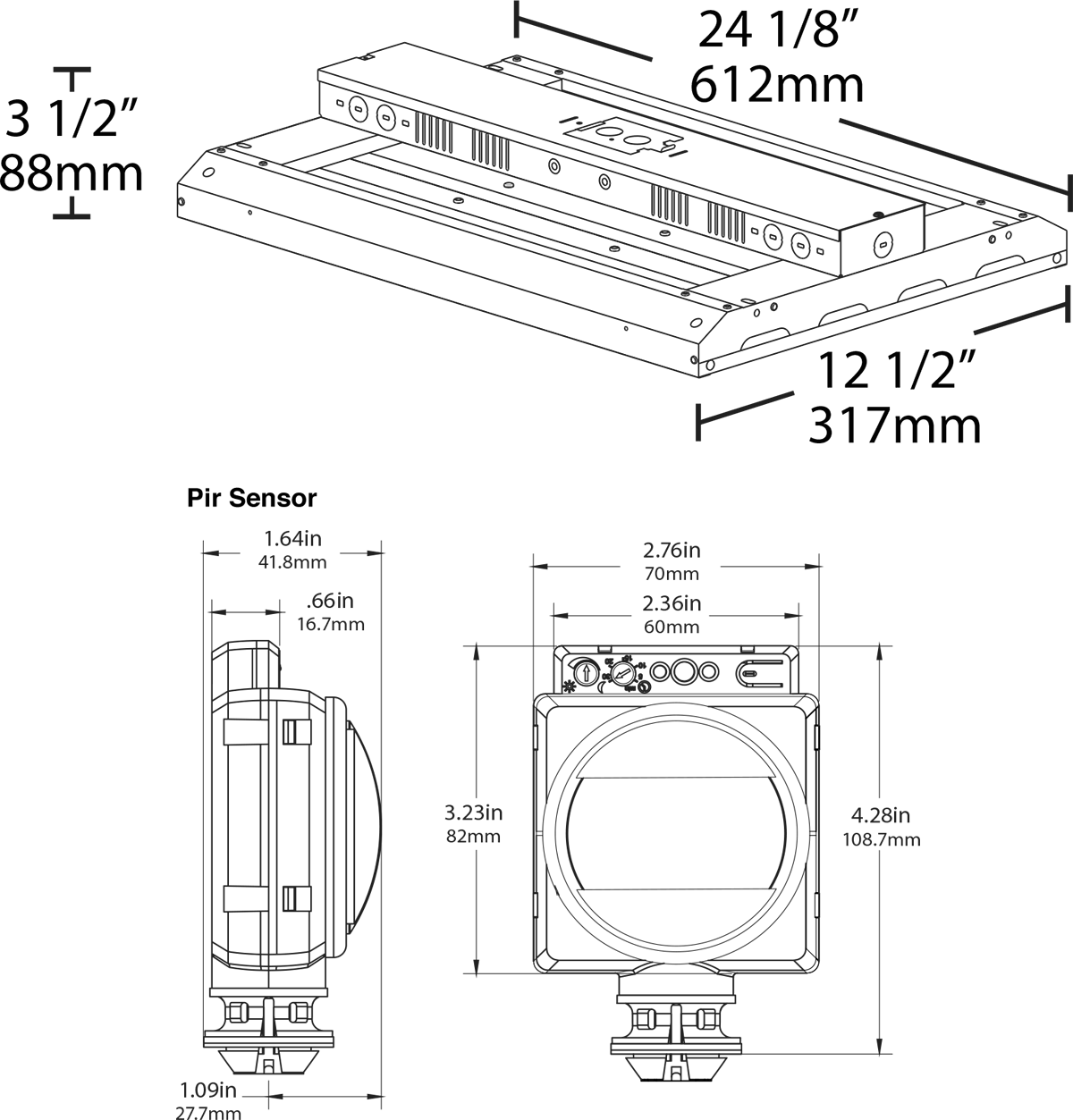

Dimensions
Weight: 13.8 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: P9D1NV0P
DLC Product Code: P9D1NV0P
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
LEDs
Multi-chip, high-output, long-life LEDs
Construction
Operating Temperature
-4°F(-20°C) to 122°F ( 50°C)
Electrical
Driver
Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 1.32A, 208V: 0.77A, 240V: 0.67A, 277V: 0.58A
THD
4.83% at 120V, 6.87% at 277V
Power Factor
99.8% at 120V, 97.2% at 277V
