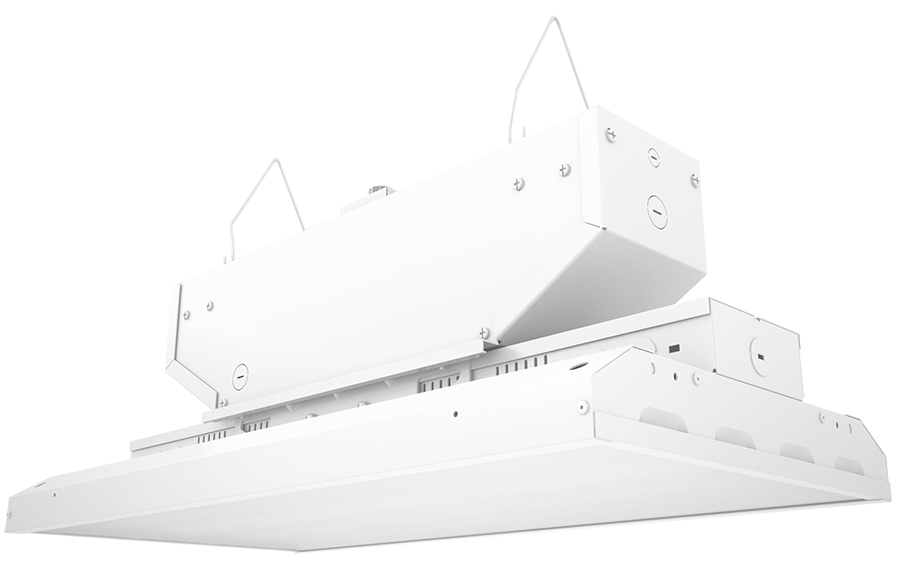

ARBAY2-90/E2
ARBAY2-90/E2 large main
  • High efficiency. Low price.
  • Available with factory-installed Lightcloud controls
  • Ideal for industrial warehouse spaces
  • 50,000 hour LED lifespan
  • 5-Year, limited warranty
 View Technical Specs
View Price & Availability
Performance
Watts 90W
Color Temp 5000K (Cool)
Lumens 11,812 lm
Efficacy 134.2 lm/W
Color Accuracy 84 CRI
L70 Lifespan 50,000 Hours
Type Constant Current
120V 0.75A
208V 0.45A
240V 0.39A
277V 0.32A
Input Watts 88W
Dimensions

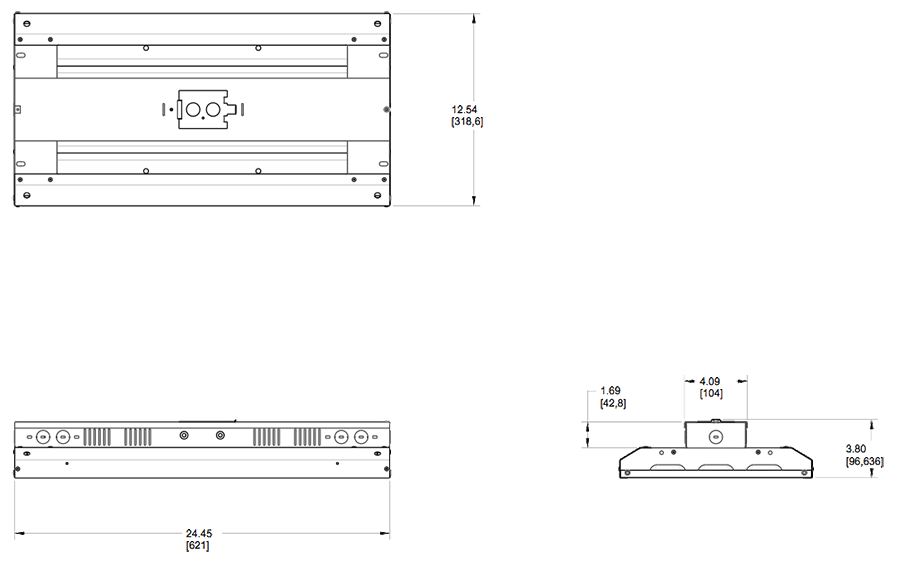

Link to Dimension Drawing

Weight: 24.2 lbs

Technical Specifications
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Performance
Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Construction
Operating Temperature
-4°F(-20°C) to 122°F ( 50°C)
Housing
Die formed painted steel
Lens
Diffused Polymethyl Methacrylate (PMMA)
Finish
Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
V hooks and optional pendant mounting. AEROBAY® comes with two 42" chains.
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.75A, 208V: 0.45A, 240V: 0.39A, 277V 0.32A
THD
6.8% at 120V, 8.3% at 277V
Power Factor
99.6% at 120V, 96.9% at 277V
Battery Backup
Battery backup will operate the LED Lamp for 90 minutes if power fails. Wired for 120V-277V.
Battery Backup Light Loss Factor
0.27
Surge Protection
4 kV
Other
Replacement
90W replaces up to (4) F32T8, (3) F54T5 or 250W HID
