ARBAY4-260/LCS/E2
ARBAY4-260/LCS/E2
- High efficiency. Low price.
- Available with factory-installed Lightcloud controls
- Ideal for industrial warehouse spaces
- 50,000 hour LED lifespan
- 5-Year, limited warranty and 10-Year, No-Compromise Lightcloud Warranty
Performance
| Watts | 260W |
| Color Temp | 5000K (Cool) |
| Lumens | 36,224 lm |
| Efficacy | 136.8 lm/W |
| Color Accuracy | 84 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 2.17A |
| 208V | 1.29A |
| 240V | 1.12A |
| 277V | 0.93A |
| Input Watts | 264.8W |

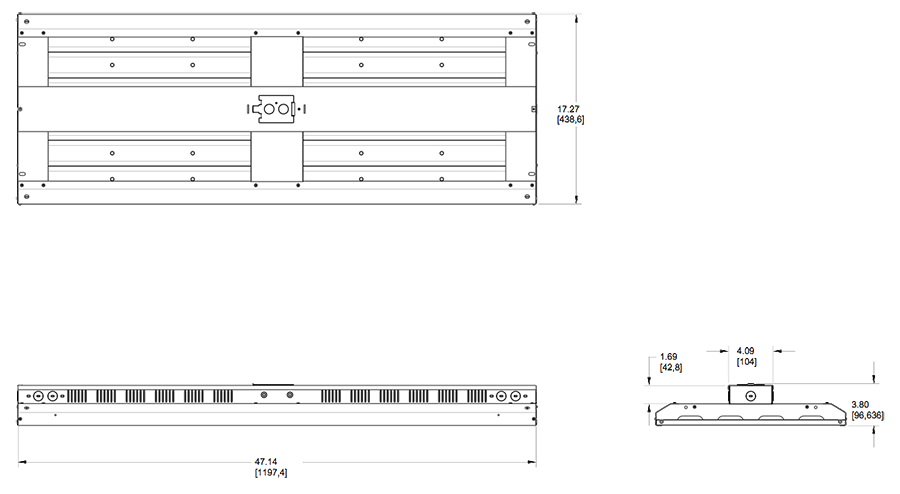

Dimensions
Weight: 38.7 lbs
Technical Specifications
Lightcloud
Lightcloud Sensor Installed
Occupancy, vacancy, and closed-loop daylight harvesting in one versatile sensor. Control any fixture in your Lightcloud system. Learn more at www.lightcloud.com
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Performance
Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 2.17A, 208V: 1.29A, 240V: 1.12A, 277V 0.93A
THD
7.2% at 120V, 8.6% at 277V
Power Factor
99.5% at 120V, 96.9% at 277V
