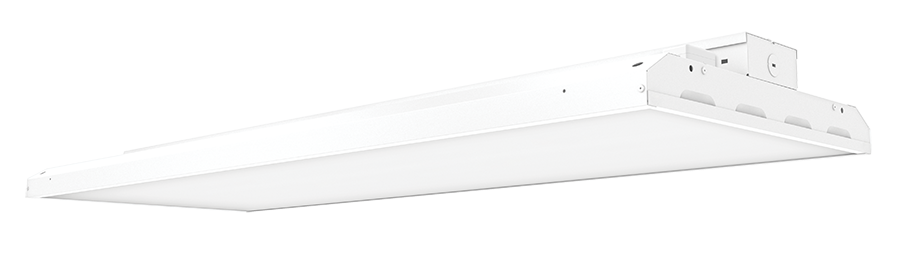

ARBAY4-260N/LC/E2
ARBAY4-260N/LC/E2
- High efficiency. Low price.
- Available with factory-installed Lightcloud controls
- Ideal for industrial warehouse spaces
- 50,000 hour LED lifespan
- 5-Year, limited warranty and 10-Year, No-Compromise Lightcloud Warranty
Performance
| Watts | 260W |
| Color Temp | 4000K (Neutral) |
| Lumens | 36,181 lm |
| Efficacy | 136 lm/W |
| Color Accuracy | 84 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 2.17A |
| 208V | 1.29A |
| 240V | 1.12A |
| 277V | 0.93A |
| Input Watts | 266.1W |
Dimensions
Weight: 38.7 lbs
Technical Specifications
Lightcloud
Lightcloud Controller Installed
Fixture, Zone, and plug-load control from one powerful device. Capable of switching, 0-10V dimming, power monitoring. Can also be used to extend the range of the Lightcloud mesh network. Attach to fixture, junction box, or electrical panel. Learn more at www.lightcloud.com
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
Performance
Lifespan
50,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
LEDs
Long-life, high-efficiency, surface-mount LEDs
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 2.17A, 208V: 1.29A, 240V: 1.12A, 277V 0.93A
THD
7.1% at 120V, 8.4% at 277V
Power Factor
99.5% at 120V, 96.9% at 277V
