ARBAY4-315N/8CP
ARBAY4-315N/8CP
- High efficiency. Low price.
- Ideal for industrial warehouse spaces
- 100,000 hour LED lifespan
- 5-Year, limited warranty
Performance
| Watts | 315W |
| Color Temp | 4000K (Neutral) |
| Lumens | 44,886 lm |
| Efficacy | 142.2 |
| Color Accuracy | 84 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 2.56A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 315.7W |
Dimensions
Weight: 22.4 lbs
Technical Specifications
Compliance
UL Listed
Suitable for damp locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
DLC Listed
This product is listed by Design Lights Consortium (DLC) as an ultra-efficient premium product that qualifies for the highest tier of rebates from DLC Member Utilities. Designed to meet DLC 5.1 requirements.
DLC Product Code: P9DF8VZQ
DLC Product Code: P9DF8VZQ
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
LED Characteristics
LEDs
Multi-chip, high-output, long-life LEDs
Construction
Operating Temperature
-4°F(-20°C) to 122°F ( 50°C)
Electrical
Driver
Class 2, Constant Current, 120-277V, 50/60 Hz, 120V: 2.56A, 208V: 1.50A, 240V: 1.30A, 277V: 1.13A
THD
3.34% at 120V, 6.82% at 277V
Power Factor
99.9% at 120V, 96% at 277V
Recently Viewed Products
RDDLED2R-10D-WY-W-WTL
Recessed Downlights 729 Lumens Rddled 2 Inches Round 10W Dimmable Wall Wash 3000K 80Cri White Trim Cone White Trim Ring Trimless
IVAT5S-75LSF750KH
Area Lights 9066 Lumens Ivat5S Type V Square 67W Slipfitter Mount 70Cri 5000K Black 347-480V 0-10V Dimming

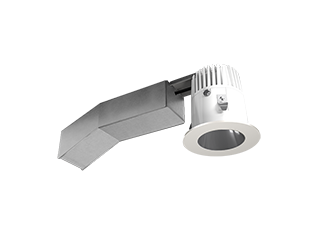

RDDLED2R-10D-40YHC-S-SAT
Recessed Downlights 759 Lumens Rddled 2 Inches Round 10W Dimmable 40 Degree 3000K 90Cri Specular Trim Cone Satin Nickel Trim Ring 1/2 Inch Trim
ALED2T50SFY/480/D10/WS4
Arealights 6717 Lumens Aled Type Ii Slipfitter 3000K 50W 480V 0-10V Dimming Multi-Level Sensor With 40 Feet Lens Bronze

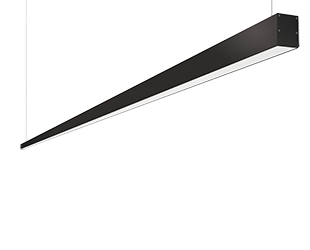

BOA12P-60D10-40Y-B/LC
