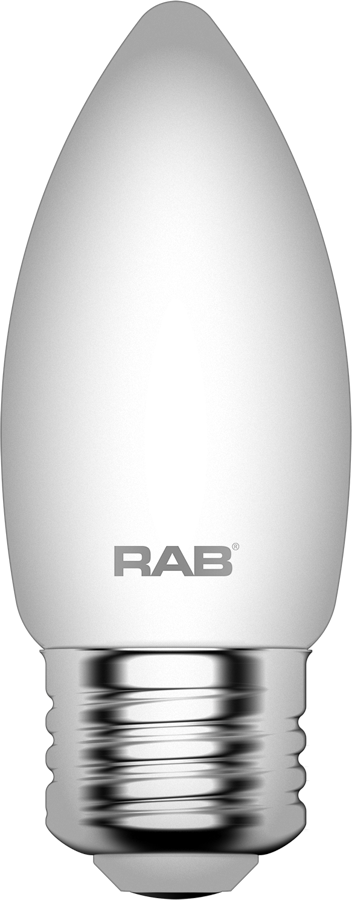

B11-5-E26-927-F-F

Spec Sheet Dimmer Compatibility List Photometrics Report FCC Caution Spec Sheet

B11-5-E26-927-F-F

Replacement for conventional decorative lamps

Filament LED construction gives a unique traditional look and feel for decorative and ambient applications

Produces rich and vibrant colors, >90CRI

Rated for use in enclosed and open fixtures in dry and damp locations

Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs

Title 20 Compliant, ENERGY STAR Compliant, UL Listed

Smooth uniform dimming down to 10% (check dimmer compatibility list)

View Technical Specs

View Price & Availability

Performance

Watts	5W
Color Temp
Lumens	500 lm
Efficacy	90.9 lm/W
Color Accuracy	2700K (Soft White) CRI
L70 Lifespan

Type
120V
208V
240V
277V
Input Watts	5.5W

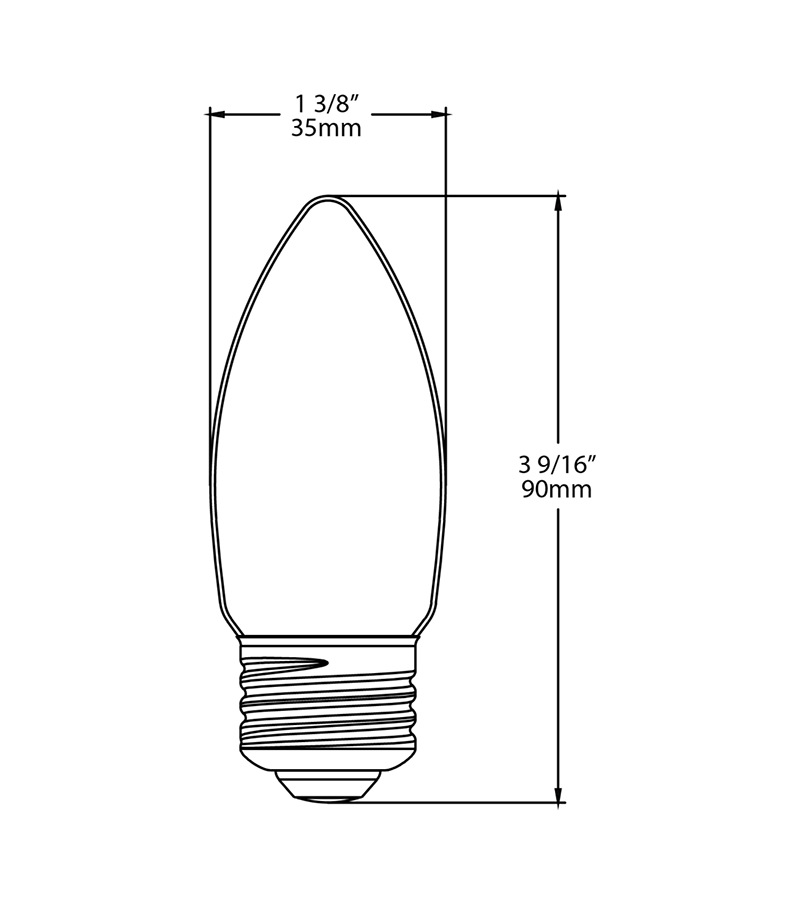

Dimensions

Technical Specifications

Performance

Product Type

Decorative

Input Wattage

Wattage Equivalency

60W Incandescent

Lumens

500lm

Efficacy

91lm/W

L70 Lifespan

15,000 Hours

Construction

Shape

B11

Finish

Frosted

For Use Outdoors in Open Fixtures

LED Characteristics

Color Temperature

2700K So ft White

Color Accuracy (CRI)

90 CRI

Beam Angle

360°

Installation

Base Type

E26 Edison

Electrical

Power Factor

0.7

Operating Temperature

-20°C to 45°C (-4°F to 113°F)

Dimmable

Yes, down to 10%

Input Voltage

120V

Flicker

<30%

Other

3-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.

Compliance

ETL Qualified

Yes

California Energy Commission (CEC) Status

Lawful for Sales in California
