BD5-3/4
BD5-3/4 large main
  • Die cast aluminum
  • Two unique "Flexi-lugs" for wall or pole mounting
  • Ground screw and close-up plugs provided
 View Technical Specs
View Price & Availability
Dimensions

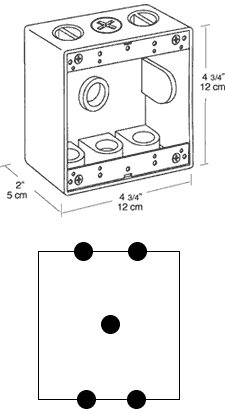

Link to Dimension Drawing

Weight: 1.1 lbs

Technical Specifications
Compliance
UL Listed
Suitable for wet locations
Other
Outlet Box Construction
Precision die cast aluminum
Tap Size
3/4"
Installation
Outlet Box Mounting Lugs
16 gauge corrosion protected steel with Phillips Flat head mounting screws
Construction
Ground Screw
#10-24 Green corrosion protected steel slotted hex washer head screw provided in pre-tapped hole
Hole Count
5 Hole
