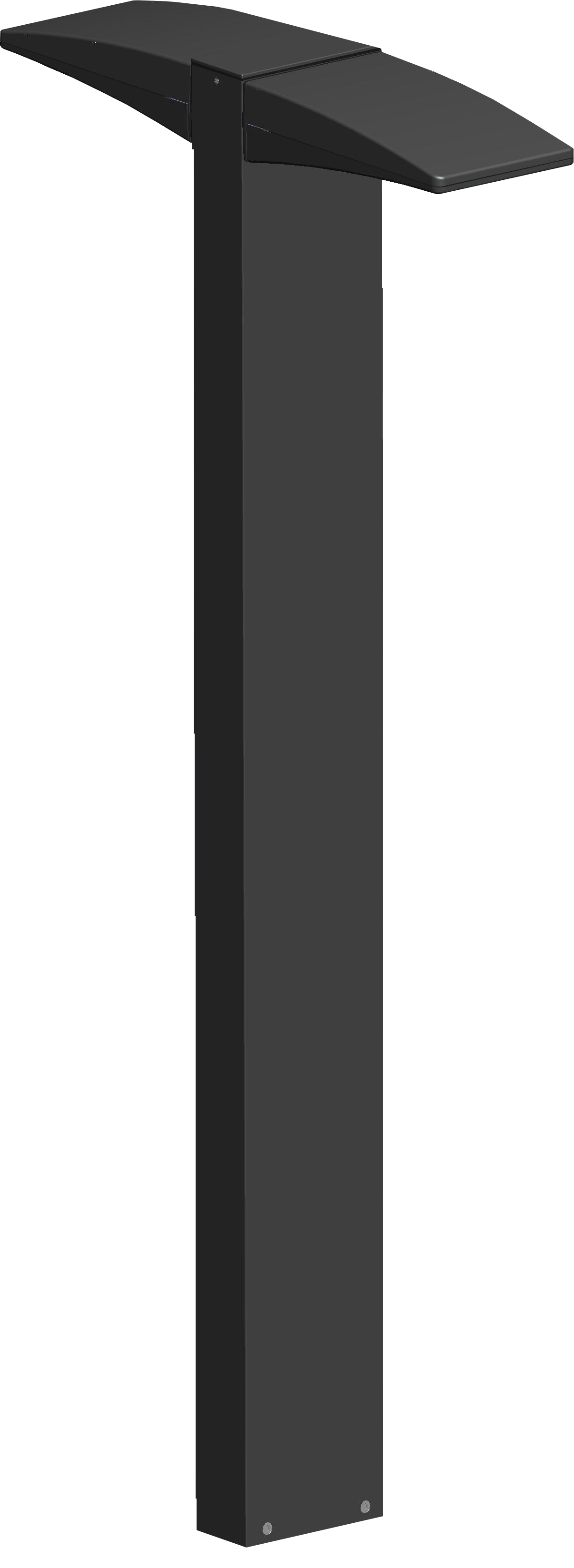

BLED2X10N
BLED2X10N
- High output LED
- 100,000-hour life
- Superior heat sinking with die cast aluminum housing
- Meets ADA requirements
- Cutting-edge, heat-dissipating design
- 5-Year, No-Compromise Warranty
Performance
| Watts | 20W |
| Color Temp | 4000K (Neutral) |
| Lumens | 2,574 lm |
| Efficacy | 106.4 lm/W |
| Color Accuracy | 70 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.18A |
| 208V | 0.10A |
| 240V | 0.10A |
| 277V | 0.08A |
| Input Watts | 24.2W |

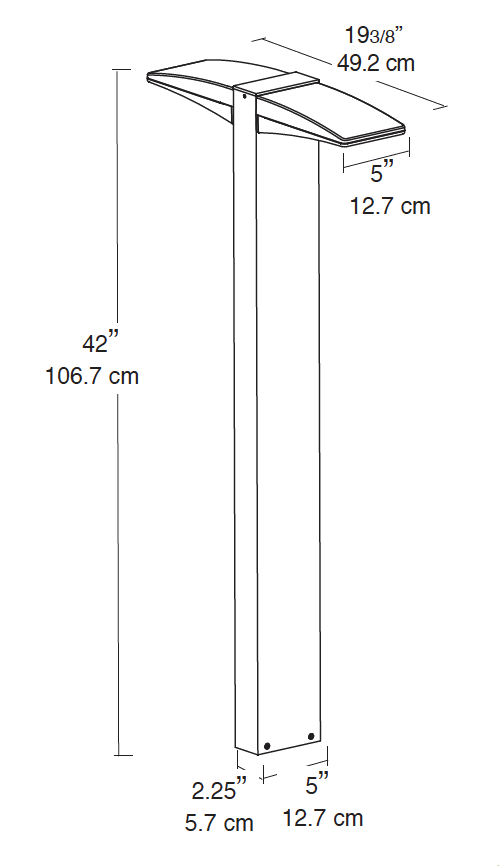

Dimensions
Weight: 17.2 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Electrical
Driver
Constant Current, Class 2, 120-277V, 50/60Hz, 120V: 0.09A, 208V: 0.05A, 240V: 0.05A, 277V 0.04A
Dimming Driver
Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.
THD
6.51% at 120V, 13.57% at 277V
Power Factor
99% at 120V, 90.6% at 277V
Construction
Junction Box
Junction Box Not Included
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Maximum Ambient Temperature
Suitable for use in up to 131°F (55°C)
