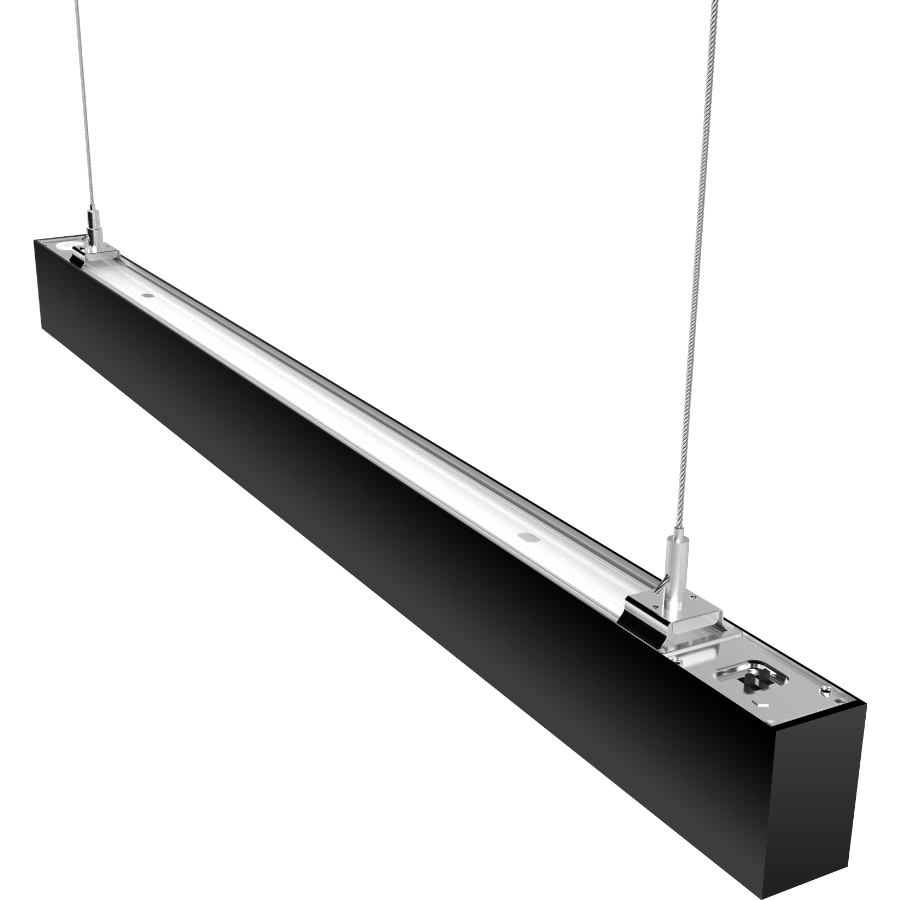

BOA3PUB

30W 3000/3500/4000K

100,000-Hour LED lifespan

0-10V dimming

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	30W
Color Temp	3000/3500/4000K
Lumens	2,263-4,523 lm
Efficacy	130.1-148.8 lm/W
Color Accuracy	92-94 CRI
L70 Lifespan	100,000 Hours

Type	Constant Current
120V	0.25A
208V	0.15A
240V	0.13A
277V	0.12A
Input Watts	17.1-31.7W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 4.0 lbs

Technical Specifications

Field Adjustability

Field Adjustable

Field Adjustable Light Output:
30W/15W (factory default 30W)
5 Power Preset:
100%/0% (Downlight Only)
70%/30%
60%/40%
50%/50%
0%/100% (Uplight Only)
Color Temperature Selectable:
3000K, 3500K and 4000K (factory default 4000K)

Compliance

UL Listed

Suitable for damp locations

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

DLC Listed

This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.

Electrical

Driver

Constant Current, Class 2, 120-277V, 50/60 Hz:
30W: 120V: 0.25A, 208V: 0.15A, 240V: 0.13A, 277V: 0.12A
15W: 120V: 0.13A, 208V: 0.08A, 240V: 0.07A, 277V: 0.07A

Dimming Driver

Driver includes dimming control wiring for 0-10V dimming systems. Requires separate 0-10V DC dimming circuit. Dims down to 10%.

THD

3.72% at 120V, 6.79% at 277V

Power Factor

99.7% at 120V, 94.4% at 277V

Surge Protection

2 kV

Continuous Runs

Maximum wattage for a continuous run should not exceed 600W

LED Characteristics

LEDs

Long-life, high-efficacy, surface-mount LEDs

Color Uniformity

RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.

Performance

Lifespan

100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations

Performance Data

Click here for the BOA3 performance data

Construction

Cold Weather Starting

The minimum starting temperature is -4°F (-20°C)

Maximum Ambient Temperature

Suitable for use in up to 104°F (40°C)

Housing

Aluminum

Lens

Polycarbonate frosted flat lens

Reflector

Polyethylene Terephthalate (PET)

Finish

Formulated for high durability and long-lasting color

Green Technology

Mercury and UV free. RoHS-compliant components.

Installation

Mounting

94" of aircraft cable provided with cable grippers for easy adjustment after installation

Other

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
