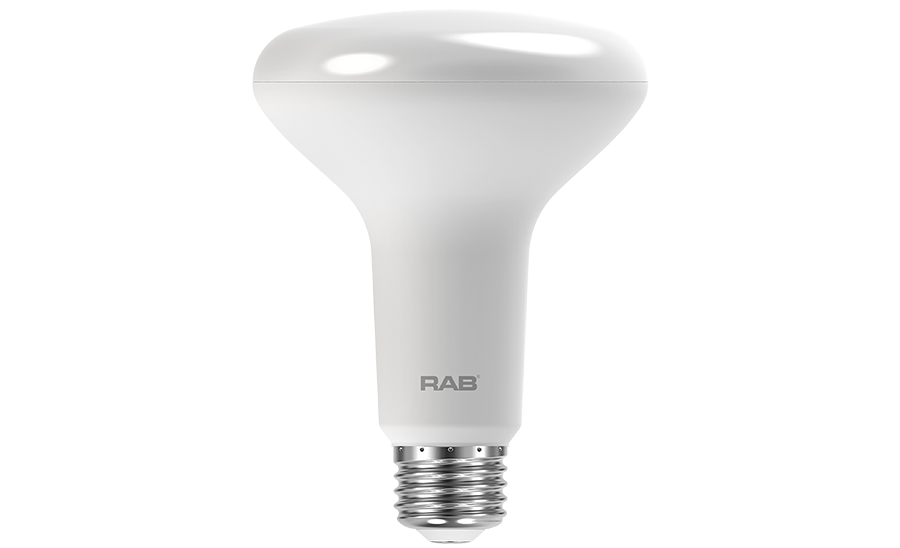

BR30-10-930-DIM
BR30-10-930-DIM
- Energy efficient replacement for incandescent and halogen reflector lamps
- Constructed from durable plastic which lowers risk of breakage
- Rated for use in enclosed and open fixtures in dry or damp locations
- Frosted lens delivers smooth, diffuse light
- Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs
Performance
| Watts | 9W |
| Color Temp | |
| Lumens | 800 lm |
| Efficacy | 84 |
| Color Accuracy | 3000K (Warm White) CRI |
| L70 Lifespan |
| Input Voltage | 120V |
| Power Factor | 0.9 |
| Flicker | <30% |
| THDi | N/A |
| R9 | Nickel-plated aluminum |

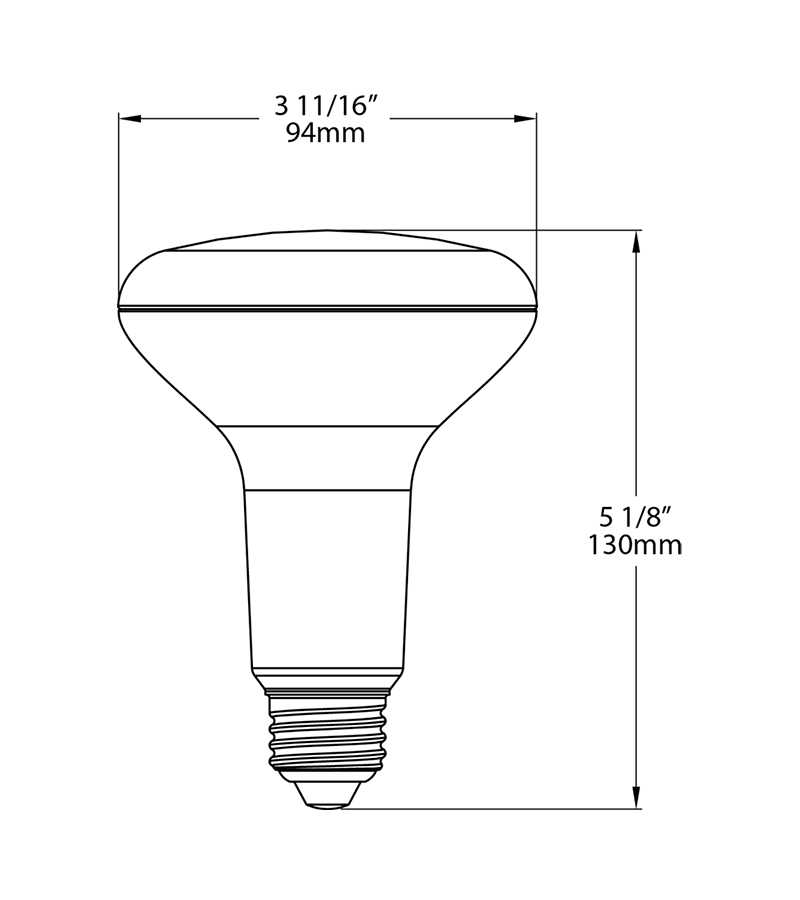

Dimensions
Weight: 0.1 lbs
Technical Specifications
Performance
Product Type
Reflector, 90CRI Dimmable
Description
Replace conventional reflector lamps. Dimmable, 90CRI and 15,000 hour lifespan.
Wattage Equivalency
65W Halogen
Input Wattage
9.5W
Lumens (Nominal)
800lm
Efficacy
84lm/W
L70 Lifespan
15,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current 120V 50/60 Hz; 120V: 85mA
THD
<75%
Power Factor
0.9
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120V
Flicker
<30%
Construction
Operating Temperature Range
-4°F - 104°F (-20°C - 40°C)
Shape
BR30
Finish
White
Endcap Material
Nickel-plated aluminum
Enclosure Material
Polycarbonate
Lens Finish
Frosted
LED Characteristics
Beam Angle
120°
Color Temperature
3000K
Color Accuracy (CRI)
≥90
R9 Value
High color performance with R9 greater than 50
Color Consistency
<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Installation
Base Type
E26 Edison
Compliance
ETL Listed
This product has been tested by Intertek and found in compliance with accepted national standards.
Environment
Suitable for use indoors in dry and damp environments.
Fixture Rating
Suitable for use in enclosed fixtures
Energy Star Approved
No
DLC Listed
No
Certification Model Number
P30006(BR30-10-930-DIM)
California Title 20 Compliant
Can be used to conform with the requirements of California Title 20
California Title 24 JA8 Compliant
Can be used to conform with the requirements of California Title 24 Part 6.
California Energy Commission (CEC) Status
Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
3-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
