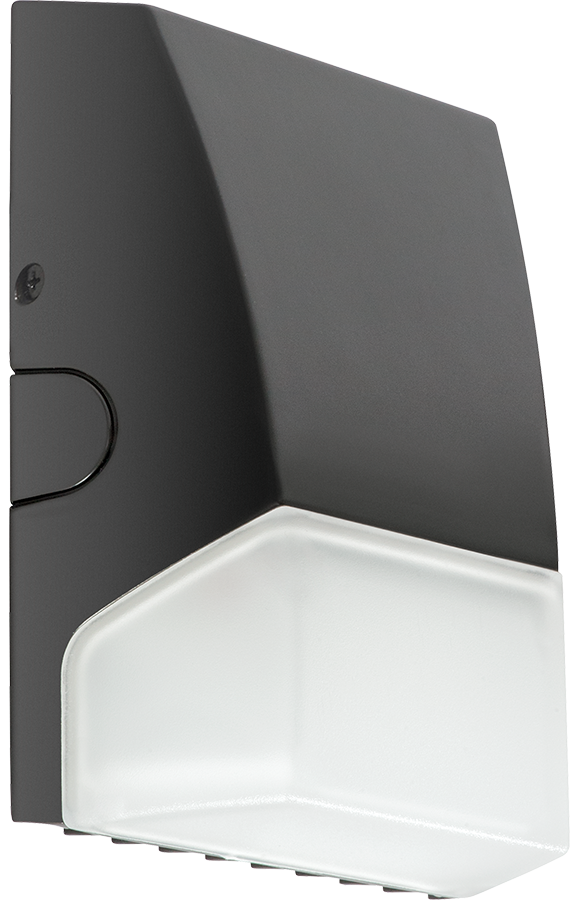

BRISKS17L-740
BRISKS17L-740
- Economical
- Traditional non-cutoff design
- 60,000-hour LED lifespan
- 5-Year, limited warranty
Performance
| Watts | 14W |
| Color Temp | 4000K (Neutral) |
| Lumens | 1,839 lm |
| Efficacy | 148.7 lm/W |
| Color Accuracy | 72 CRI |
| L70 Lifespan | 60,000 Hours |
| Type | Constant Current |
| 120V | 0.11A |
| 208V | 0.07A |
| 240V | 0.06A |
| 277V | 0.06A |
| Input Watts | 12.4W |
Dimensions
Weight: 2.0 lbs
Technical Specifications
Compliance
UL Listed
Suitable for wet locations
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
IP Rating
Ingress protection rating of IP66 for dust and water
Performance
Lifespan
60,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Wattage Equivalency
Equivalent to 70W Metal Halide/50W HPS
LED Characteristics
LEDs
Long-life, high-efficacy, surface-mount LEDs
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Electrical
Driver
Constant Current, Class 2, 50/60Hz, 120V: 0.11A, 208V: 0.07A, 240V: 0.06A, 277V: 0.06A
THD
9.52% at 120V, 13.91% at 277V
Power Factor
98.4% at 120V, 90.1% at 277V
Surge Protection
2.5 kV
Optical
BUG Rating
B0 U3 G2
Construction
Maximum Ambient Temperature
Suitable for use in up to 104°F (40°C)
Cold Weather Starting
The minimum starting temperature is -22°F (-30°C)
Housing
Precision die-cast aluminum
Reflector
Specular
Lens
Diffused acrylic
Gaskets
Silicone foam
Finish
Formulated for high durability and long-lasting color
Green Technology
Mercury and UV free. RoHS-compliant components.
Installation
Mounting
Heavy duty, die-cast junction box with four (4) conduit entries (one top, two side, one back)
Other
5-Year Limited Warranty
The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
Replacement
Replaces 100A/IF incandescent Inside Frost, 100W T5 Halogen incandescent or 26W CFL
