CLED2X10MSW/BL
CLED2X10MSW/BL
- Reduce energy usage with motion sensor technology you can rely on
- LED combined with mini sensor for an all-in-one lighting solution
- Great for small spaces like utility closets and storage rooms
- 5-Year, No-Compromise Warranty
Performance
| Watts | 20W |
| Color Temp | 5000K (Cool) |
| Lumens | 2,344 lm |
| Efficacy | 90.2 lm/W |
| Color Accuracy | 68 CRI |
| L70 Lifespan | 100,000 Hours |
| Type | Constant Current |
| 120V | 0.2A |
| 208V | |
| 240V | |
| 277V | |
| Input Watts | 26W |

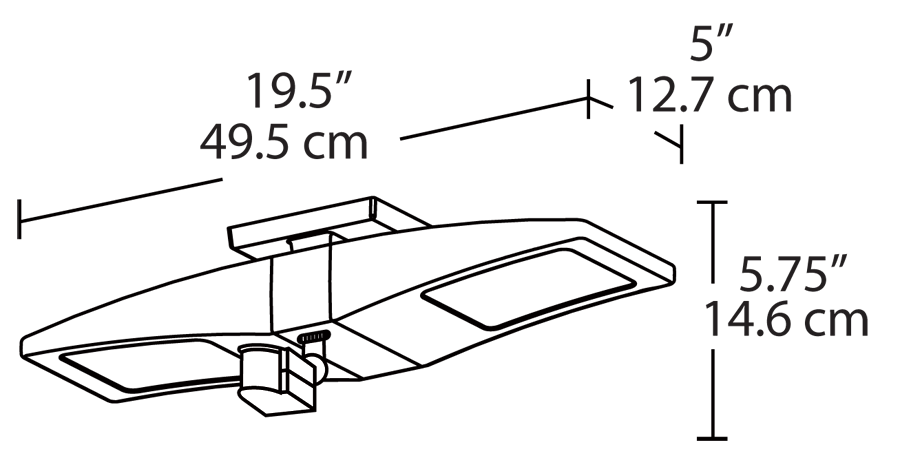

Dimensions
Weight: 6.6 lbs
Technical Specifications
Other
Bi-Level Operation
Bi-Level option supplies a fixture with the sensor(s) wired to control only one fixture leaving the other fixture always on or available for timer or photo sensor control by customer. Two sets of labeled leads will be provided.
Compliance
UL Listed
Suitable for damp locations
Performance
Lifespan
100,000-Hour LED lifespan based on IESlm-80 results and TM-21 calculations
Installation
Recommended Mounting Height
8-10'
LED Characteristics
LEDs
(2) 10W Multi-chip high-output, long-life LED
Construction
Cold Weather Starting
The minimum starting temperature is -40°F (-40°C)
Electrical
Drivers (2)
Constant Current, Class 2, 100V-240V, 50/60 Hz, 1kv Surge Protection, 350mA, 0.6Amps, Power Factor 57.1%.
