Performance
| Watts | 11W |
| Color Temp | 2700/3000/3500/4000/5000K |
| Lumens | 1,000 lm |
| Efficacy | 90.9 |
| Color Accuracy | >90 CRI |
| L70 Lifespan | 50,000 Hours |
| Type | Constant Current |
| 120V | 0.12A |
| 208V | 0.11A |
| 240V | 0.10A |
| 277V | 0.10A |
| Input Watts | 11W |
Dimensions
Weight: 0.8 lbs
Technical Specifications
Performance
Product Type

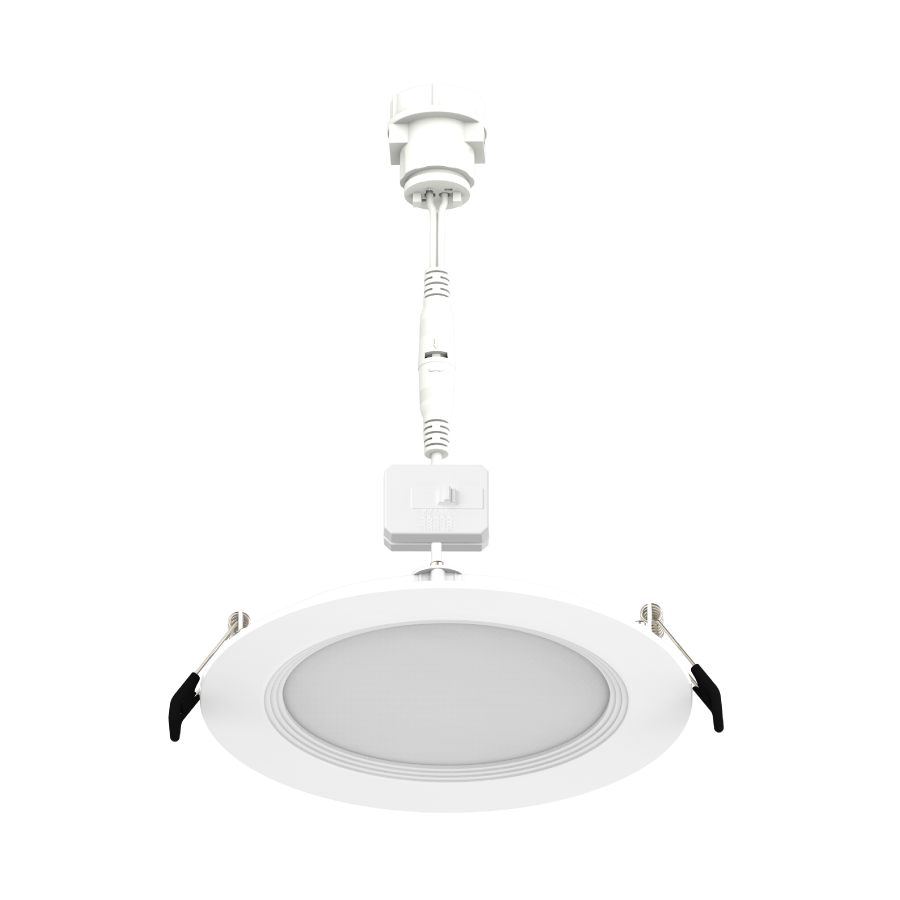

Daisy Wafer
Description
Daisy chain wafer is available as a kit that includes a single driver and six wafers with the ability to add additional Daisy wafers. Available in 4" and 6" sizes with a smooth or baffle trim and 120-277V driver.
Wattage Equivalency
75W Incandescent
Input Wattage
11W
Lumens (Nominal)
1,000lm
Actual Lumens
1,019lm @ 2700K;
1,056lm @ 3000K;
1,101lm @ 3500K;
1,115lm @ 4000K;
1,094lm @ 5000K
1,056lm @ 3000K;
1,101lm @ 3500K;
1,115lm @ 4000K;
1,094lm @ 5000K
Efficacy
83lm/W @ 2700K;
86lm/W @ 3000K;
90lm/W @ 3500K;
91lm/W @ 4000K;
89lm/W @ 5000K
86lm/W @ 3000K;
90lm/W @ 3500K;
91lm/W @ 4000K;
89lm/W @ 5000K
L70 Lifespan
50,000-Hour LED lifespan based on IES LM-70 results
Electrical
Power Factor
0.9
Dimmable
Yes, dimmable down to 5% on compatible 0-10V dimming systems. See Dimmer Compatibility List. Requires separate 0-10V DC dimming circuit.
Input Voltage
120-277V
Operating Frequency
60 Hz
Input Current @ 120V (mA)
116mA
Input Current @ 208V (mA)
110mA
Input Current @ 240V (mA)
102mA
Input Current @ 277V (mA)
100mA
Operating Temperature
-13°F to 104°F (-25°C to 40°C)
Flicker
≤30%
LED Characteristics
Beam Angle
110°±10°
Color Temperature
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Color Accuracy (CRI)
90 CRI
R9 Value
High color performance with R9 greater than 50
Color Consistency
<4-step (2700K & 5000K) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Color Stability
LED color temperature is warrantied to Shift no more than 200K in color temperature over a 5-year period
Color Uniformity
RAB's range of Correlated Color Temperature follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2017.
Installation
Mounting
Recessed
Construction
Size
6"
Shape
Round
Finish
White
Enclosure Material
Constructed from frosted, shatter-resistant polycarbonate
Trim Style
Baffle
Lens Finish
Frosted
Lens
Polycarbonate light diffuser distributes light evenly and smoothly for general lighting applications
Compliance
Trade Agreements Act Compliant
This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act
Listings
UL Listed
Environment
Suitable for use indoors and outdoors in dry, damp, or wet environments.
IC Rated
Suitable for direct contact with insulation. Type IC inherently protected, suitable for direct contact to air permeable insulation and cULus listed for damp locations. Not for use in direct contact with spray foam insulation, consult NEMA LSD57-2013.
Air Tight
Housing certified Air Tight as per ASTM-E283
Energy Star Approved
No
DLC Listed
This product family is listed with the DesignLights Consortium (DLC). Individual SKUs within this family may carry either a DLC Standard or DLC Premium qualification. Please refer to the individual product specification sheet or the DLC Qualified Products List (QPL) at designlights.org to confirm the qualification status of a specific SKU prior to specification or purchase.
Certification Model Number
DAS0008(DAISY6B)
California Title 20 Compliant
No
California Energy Commission (CEC) Status
Not Lawful for Sales in California
NEC Compliant
Suitable for use in closets. Compliant with NEC Sec. 410.16 (A)(1) and 410.16 (C3).
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
