DISK17-6

10W 2700/3000/3500/4000/5000K

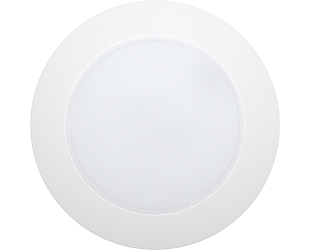

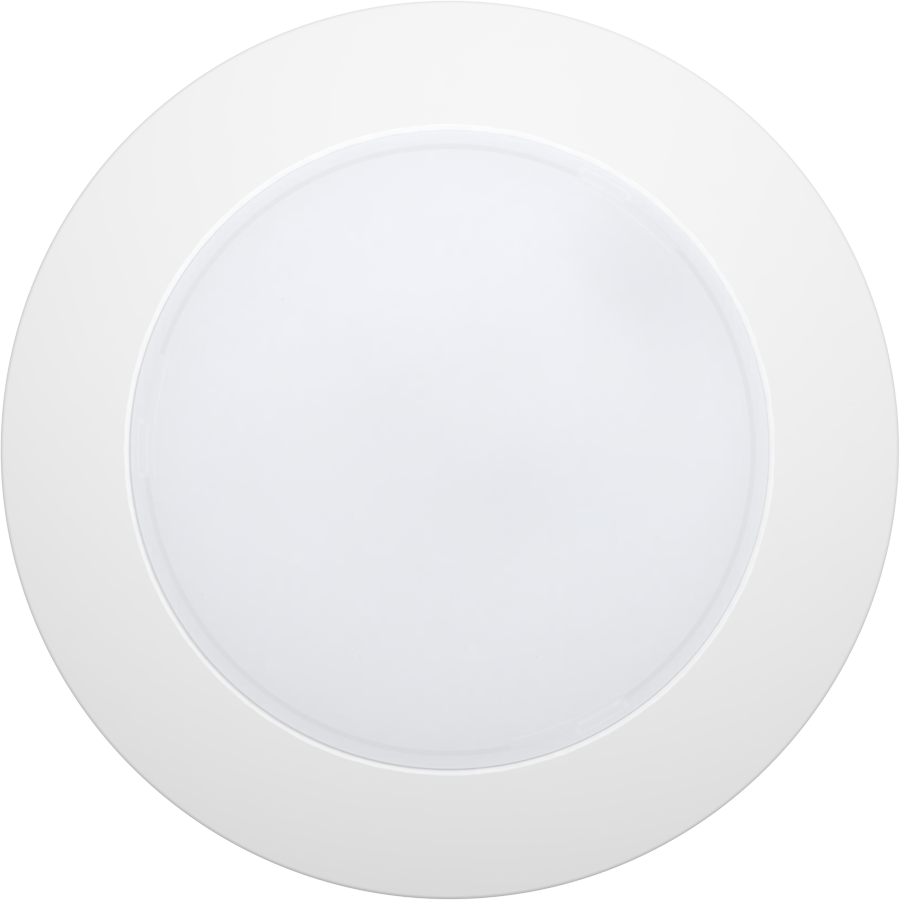

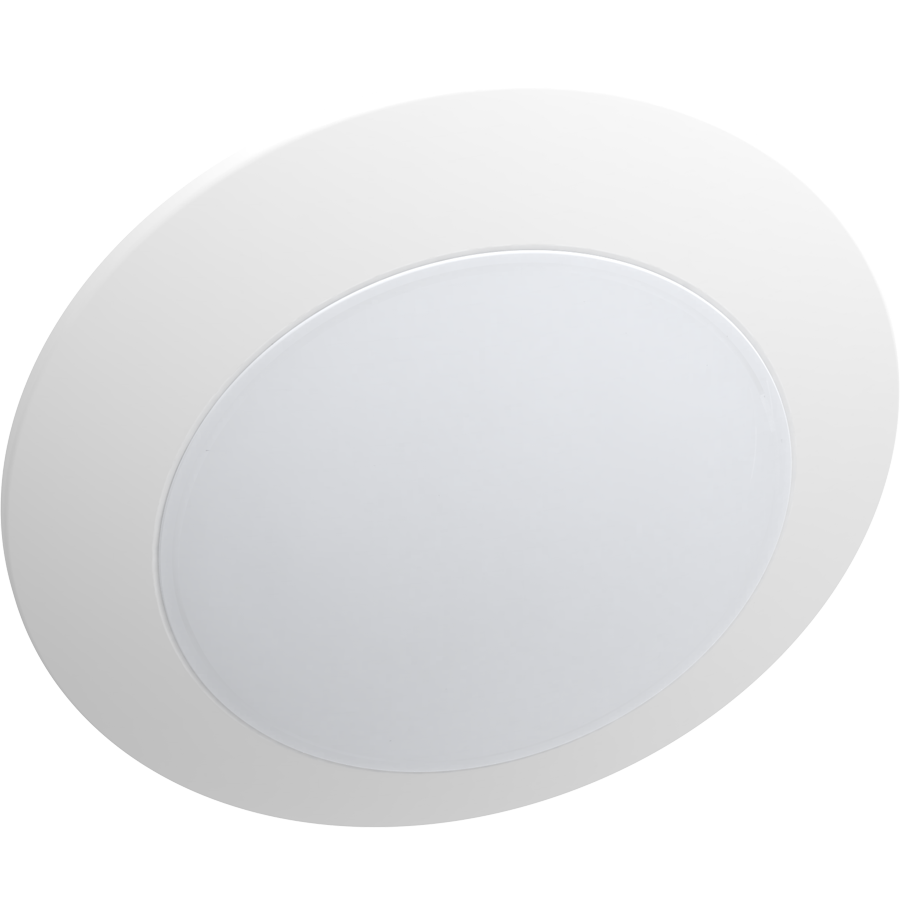

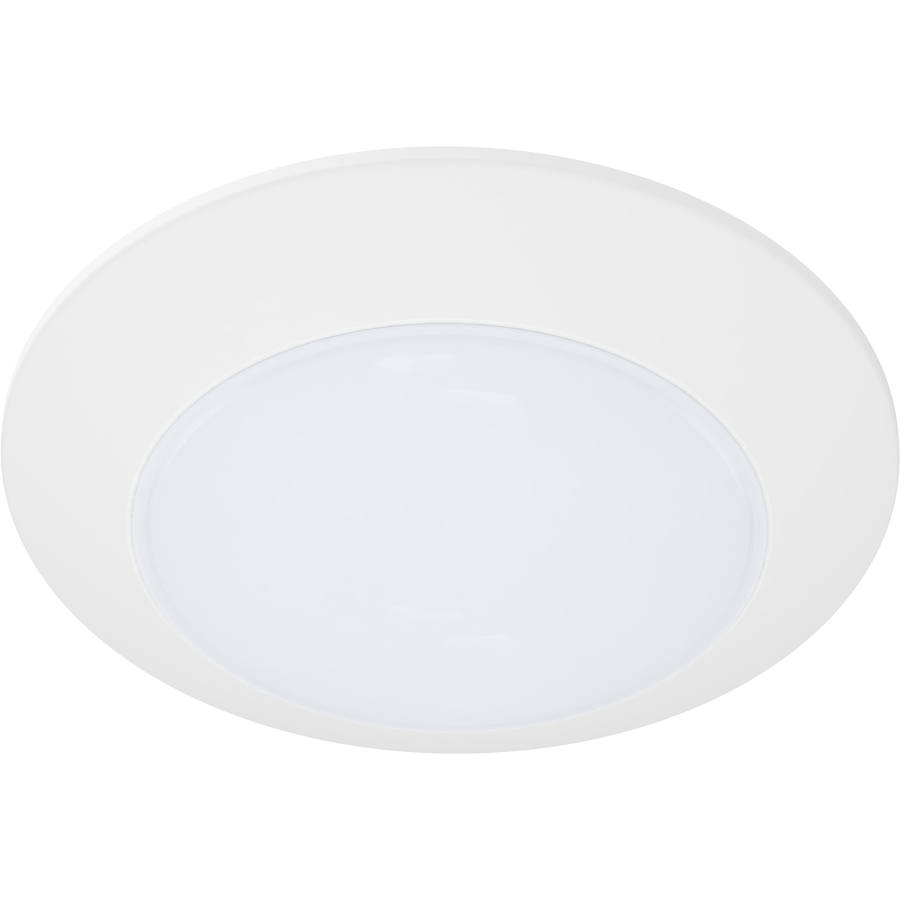

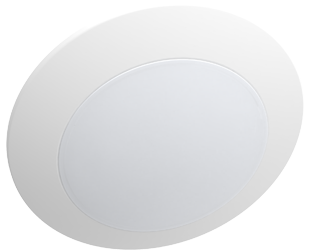

Ultra low-profile, back-lit design made of durable thermoplastic with frosted lens

Five selectable color temperatures in each fixture. (2700-3000-3500-4000-5000K)

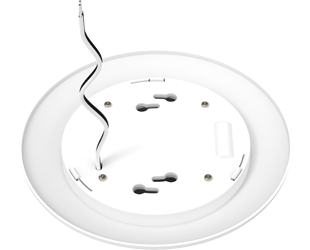

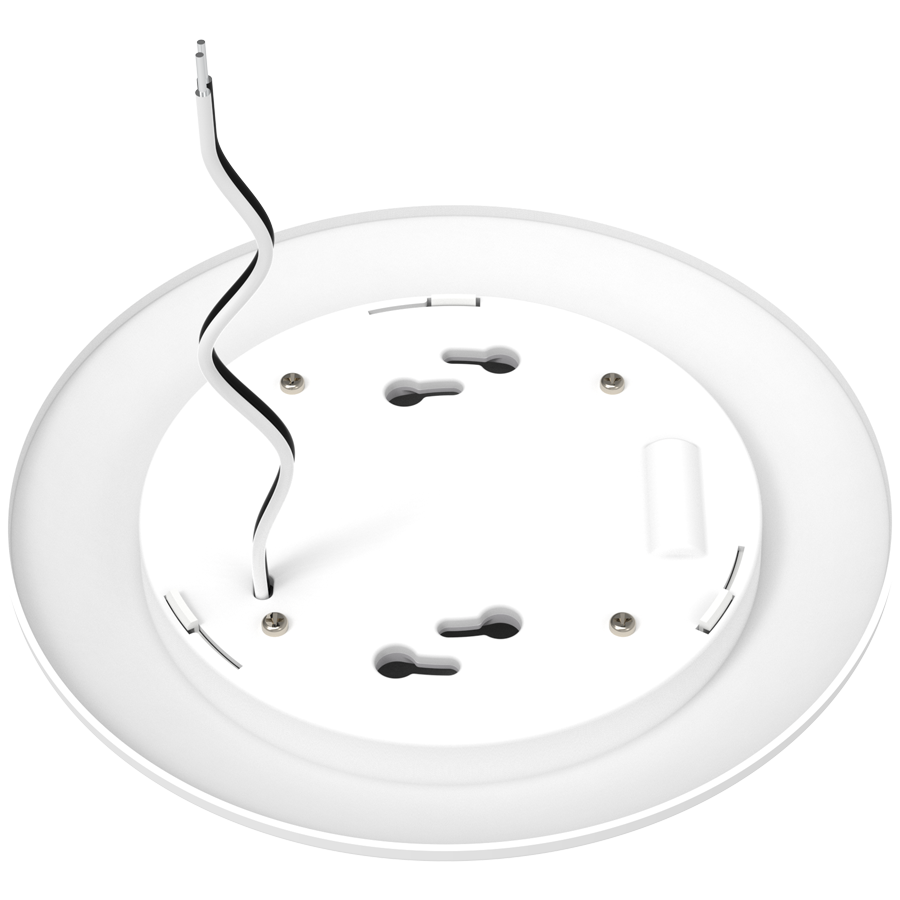

Easy surface mount installation with included keyholes and compatible with 3/0 & 4/0 junction boxes

Designed and Certified to Comply with NEC Code 410.16(A)(1) and NEC Code 410.16(C)(1) for Installation in Closet Storage Space

Wet Location, Title 24, & Energy Star rated. 5-year warranty

Packaged in bulk case quantities of 12

View Technical Specs

View Price & Availability

Performance

Watts	10W
Color Temp	2700/3000/3500/4000/5000K
Lumens	891-958 lm
Efficacy	93.2-98.5 lm/W
Color Accuracy	90 CRI
L70 Lifespan	50,000 Hours

Type	Constant Current
120V	0.09A
208V
240V
277V
Input Watts	9.6-9.7W

EZ-Layout

Create Custom Lighting Layout

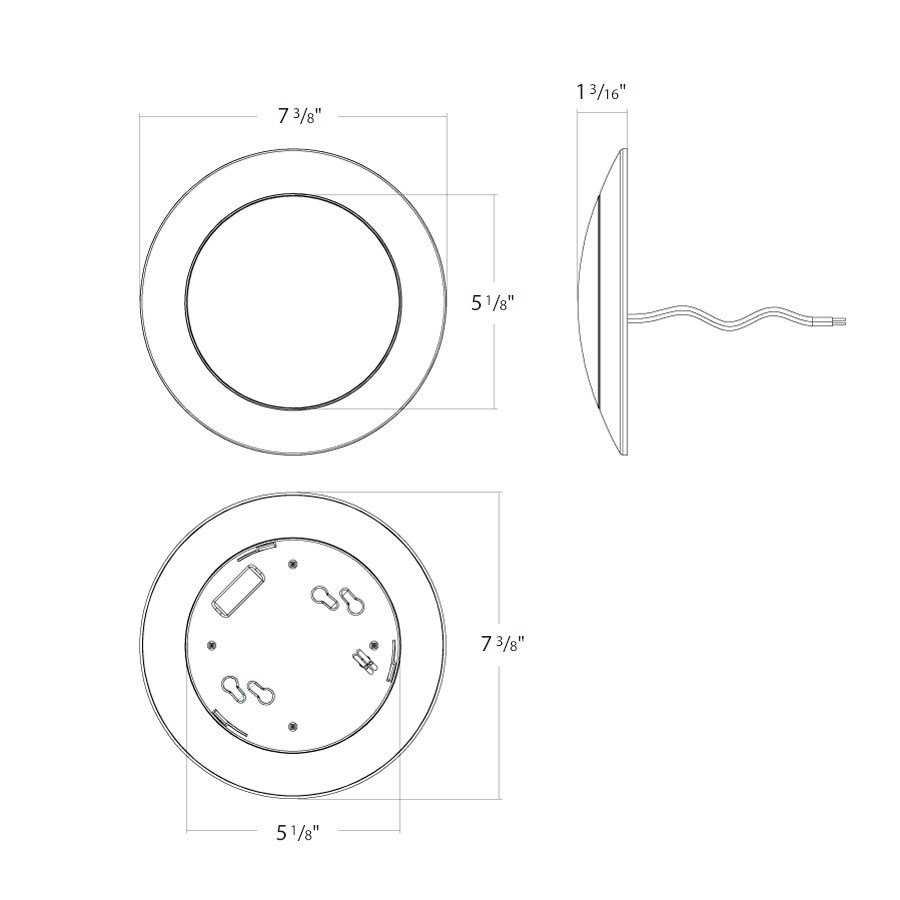

Dimensions

Weight: 0.4 lbs

Technical Specifications

Performance

Product Type

Surface Mount

Description

Contractor bulk pac, ultra-economy, CCT-adjustable surface mount disk lights

Wattage Equivalency

75W Incandescent

Input Wattage

10W

Lumens

900lm

Efficacy

90lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Electrical

Driver

Constant Current, 120V, 60 Hz; @ 120V: 100mA

Power Factor

≥0.9

Dimmable

Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.

Input Voltage

120V

Operating Frequency

60 Hz

Operating Temperature

-4°F to 104°F (-20°C to 40°C)

Flicker

<30%

LED Characteristics

Beam Angle

90°

Color Temperature

Field adjustable via dip switch 2700/3000/3500/4000/5000K

Color Accuracy (CRI)

90 CRI

Natural Spectrum

R9 Value

High color performance with R9 greater than 50

Color Consistency

<4-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color

Installation

Mounting

Surface Mount

Construction

Size

Shape

Round

Finish

White

Enclosure Material

Plastic

Trim Style

Smooth

Lens Finish

Frosted

Lens

Twist-lock lens makes it easy to remove and attach during installation with UV resistant polycarbonate diffuser

Compliance

Listings

UL Listed

Environment

Suitable for use indoors and outdoors in dry, damp, or wet environments.

IC Rated

Air Tight

Energy Star Approved

This product is ENERGY STAR® Certified.

Certification Model Number

DLS0191(DISK17-6/BP)

California Title 20 Compliant

California Title 24 JA8 Compliant

Can be used to conform with the requirements of California Title 24 Part 6.

California Energy Commission (CEC) Status

Lawful for Sales in California

IESNA LM-79 & LM-80 Testing

RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.

RoHS

Mercury and UV free. RoHS-compliant components.

FCC

Complies with Part 15 of the FCC Rules

Trade Agreements Act Compliant

This product is a product of Cambodia and a "designated country" end product that complies with the Trade Agreements Act

Other

Compatible Products

DISK36-TRIM-6-BLK
6" Color trim for DISK round black

DISK36-TRIM-6-BN
6" Color trim for DISK round brushed nickel

DISK36-TRIM-6-BRZ
6" Color trim for DISK round bronze

5-Year Limited Warranty

The RAB 5-year, limited warranty covers light output, driver performance and paint finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
