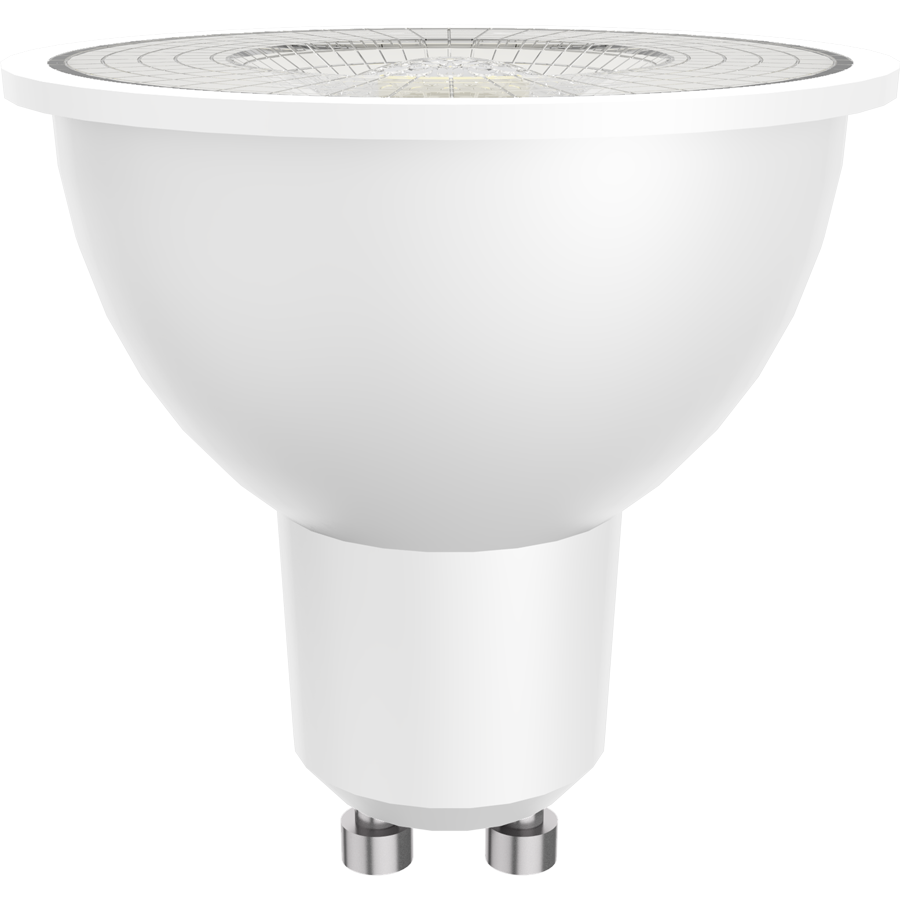

GU10-4.5-850-35D-DIM
GU10-4.5-850-35D-DIM
- Energy efficient replacement for incandescent and halogen Small diameter reflectors
- Constructed from durable materials which lowers risk of breakage
- Rated for use in enclosed and open fixtures in dry or damp locations
- Single optic and full face lens for precise beam angle control
- Longer lifespan compared to legacy equivalents minimizes replacement and maintenance costs
Performance
| Watts | 4W |
| Color Temp | 5000K |
| Lumens | 350 lm |
| Efficacy | 78 |
| Color Accuracy | 80 CRI |
| L70 Lifespan | 15,000 Hours |
| Input Voltage | 120V |
| Power Factor | >0.7 |
| Flicker | N/A |
| THDi | N/A |
Dimensions
Weight: 0.1 lbs
Technical Specifications
Performance
Wattage Equivalency
35W Halogen
Input Wattage
4.5W
Lumens (Nominal)
350lm
Efficacy
78lm/W
L70 Lifespan
15,000-Hour LED lifespan based on IES LM-70 results
Electrical
Driver
Constant Current 120V 50/60 Hz; 120V: 45mA
THD
<85%
Power Factor
0.7
Dimmable
Yes, dimmable down to 10% on compatible TRIAC/ELV dimming systems. See Dimmer Compatibility List.
Input Voltage
120V
Construction
Operating Temperature Range
-4°F - 104°F (-20°C - 40°C)
Shape
GU10
Finish
White
Enclosure Material
Polycarbonate
Lens Finish
Frosted
LED Characteristics
Color Temperature
5000K
Color Accuracy (CRI)
≥80 CRI
R9 Value
High color performance with R9 greater than 0
Color Consistency
<7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
Installation
Base Type
GU10 Bi-pin
Compliance
ETL Listed
This product has been tested by Intertek and found in compliance with accepted national standards.
Environment
Suitable for use indoors in dry and damp environments.
Fixture Rating
Suitable for use in enclosed fixtures
Energy Star Approved
No
DLC Listed
No
Certification Model Number
P30035(GU10-4.5-850-35D-DIM)
California Title 20 Compliant
No
California Title 24 JA8 Compliant
No
California Energy Commission (CEC) Status
Not Lawful for Sales in California
IESNA LM-79 & LM-80 Testing
RAB LED luminaires and LED components have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
3-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of three (3) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
