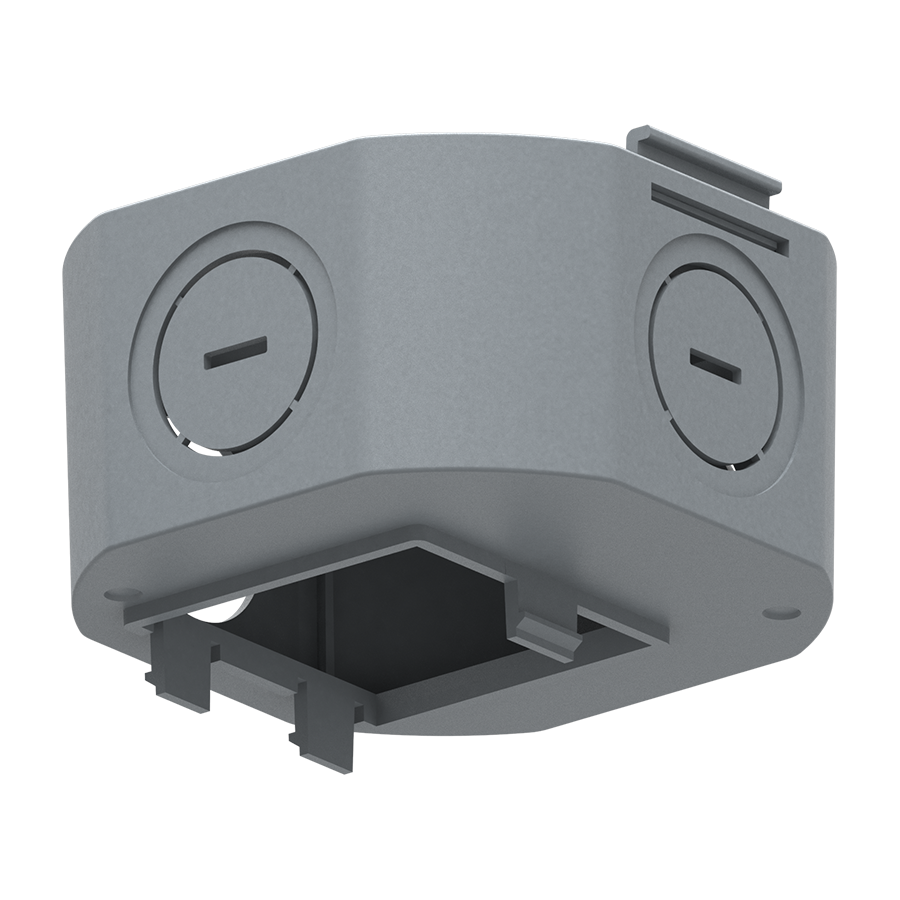

DLJBOX/P/E2
DLJBOX/P/E2 large main
  • For use with select RAB Commercial Downlights
  • Meets UL924 Requirements
 View Technical Specs
View Price & Availability
Dimensions
Link to Dimension Drawing

Weight: 0.1 lbs

Technical Specifications
Performance
Product Type
J-Box for EM Downlights
Other
Compatible Downlights
C6R119FAUNVW
C6R189FAUNVW
C6R229FAUNVW
C8R229FAUNVW
C8R339FAUNVW
C8R559FAUNVW
Compatible Emergency Battery
Catalog Number: 71070
Description: Ballast 12W Emergency Battery 0.75A 12V-48VDC
Construction
Construction
Molded plastic junction box with (3) 1/2" knockouts for through-wiring.
Installation
Installation
Allows for EM Battery Backup to be directly wired to the LED module
