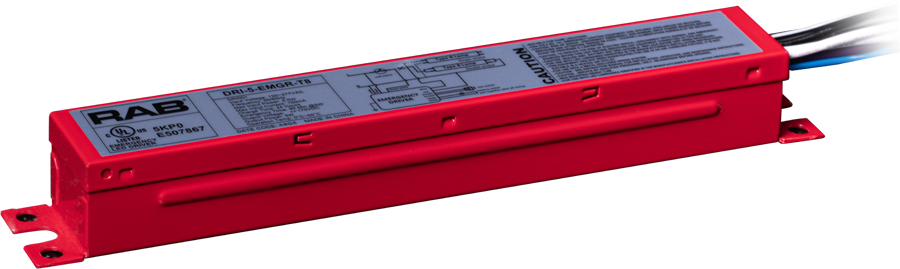

DRI-5-EMGR-T8
DRI-5-EMGR-T8
- Illuminates entire LED load at reduced output under emergency mode
- One Piece Design with Metal Housing
- 2-in-1 LED test switch and indicator light included
- Evaluated to UL 924 requirements
- Not for use with dimmers
- 90 Minute operation in Emergency Mode
- UL Listed
- Operating Temperature: 32°F/0°C to 122°F/50°C

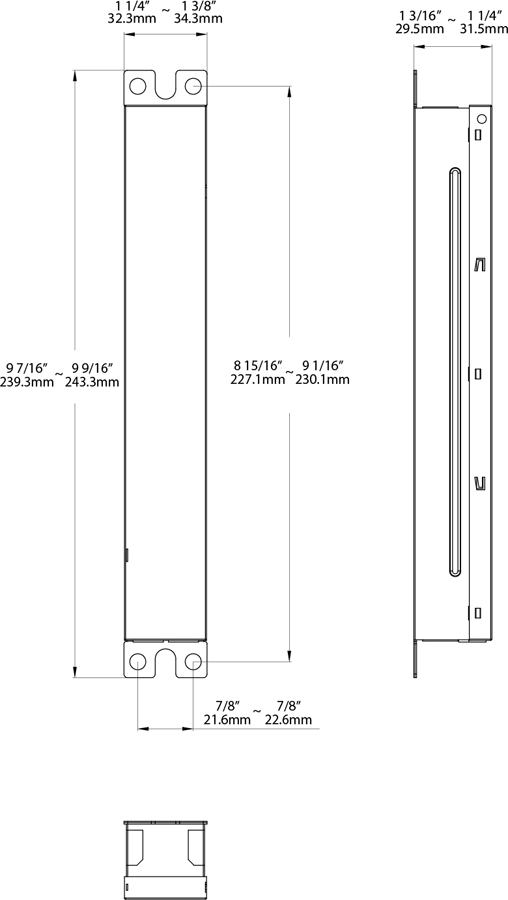

Dimensions
Weight: 0.9 lbs
Technical Specifications
Performance
Product Type
Driver
Input Wattage
5W
Construction
Material
Metal Casing
Electrical
Power Factor
>0.4 @ 120V
Input Voltage
120-277V AC
Operating Frequency
50/60Hz
Input Current @ 120V
100mA
Rated Output Current
Load Dependent
Max Output Voltage
300VDC
Installation
Installation Type
Emergeny Back up for Double Ended or Single + Double ended tubes
Compliance
UL Listed
Yes
NSF Listed
Meets NSF/ANSI standards for use in Food Zone (non-contact), Splash, and Non-Food Zones. Tube guard required in open fixtures.
California Energy Commission (CEC) Status
Lawful for Sales in California
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
