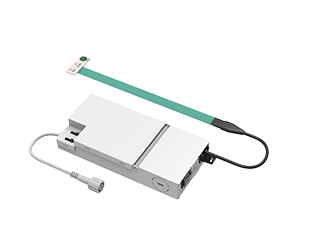

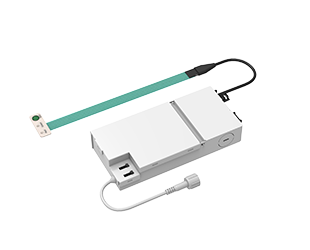

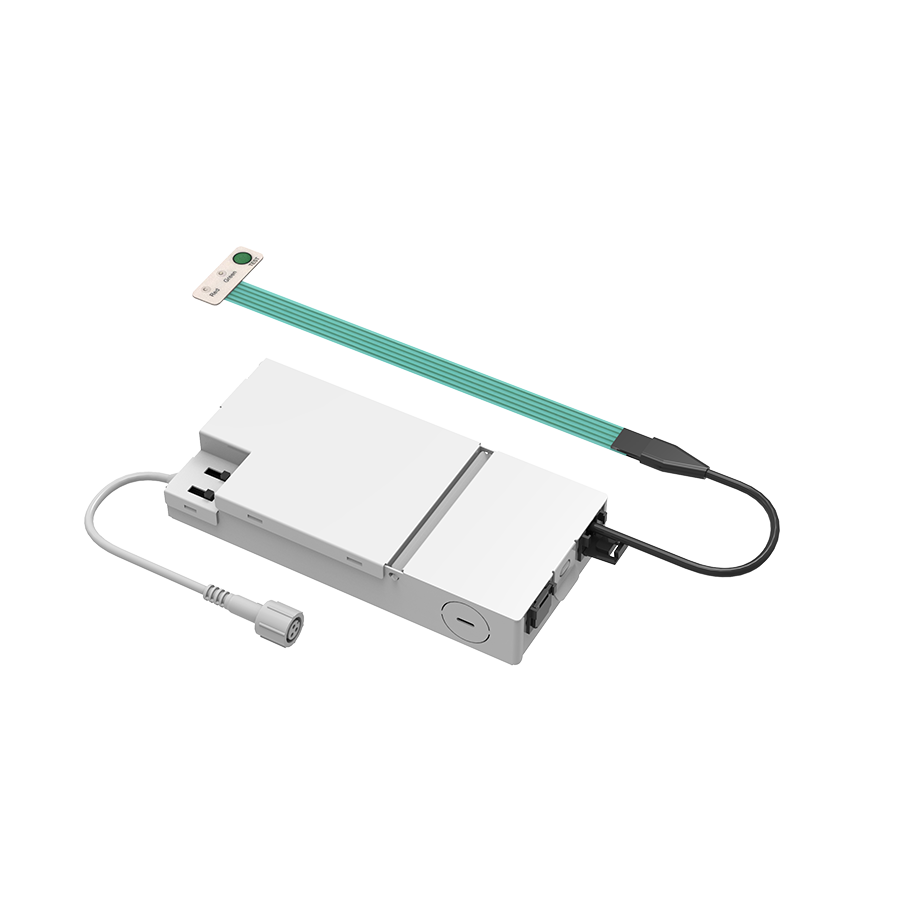

DRI-EMB-15S-LV
DRI-EMB-15S-LV
- 2-in-1, compatible with both conventional power supply function and emergency power supply function.
- Ideal design for LED downlights, built-in junction box.
- 3Power selectable and 5CCT selectable
- Emergency power is 4.2W for 90 minutes, lithium battery.
- Battery protections: over charge protection, over discharge protection, short circuit protection.
Dimensions
Technical Specifications
Performance
Product Type
Low Voltage Emergency LED Driver
Description
2-in-1, compatible with both conventional power supply function and emergency power supply function.
Operation
Normal Mode: AC power is present. The AC driver operates the LED load as designed. The emergency driver is charging in a standby mode. The charging indicator light is red, showing that the battery is charging.
Emergency Mode: When the AC power goes out, the emergency driver detects the AC power outage and automatically switch to emergency mode. The LED luminaire is illuminated for a minimum of 90 minutes. When the AC power is restored, the emergency driver switches the system back to the Normal Mode and resumes battery charging.
Emergency Mode: When the AC power goes out, the emergency driver detects the AC power outage and automatically switch to emergency mode. The LED luminaire is illuminated for a minimum of 90 minutes. When the AC power is restored, the emergency driver switches the system back to the Normal Mode and resumes battery charging.
Input Wattage
21W Max
Input Power (W)
9/12/15W
Output Voltage
DC30-36V
Electrical
Input Voltage
120V
Operating Frequency
50/60Hz
Input Current @ 120V (mA)
200mA Max
Output Current
≤390mA
Emergency Operation
90 minutes
Emergency Power
4.2W
Battery Type
Li-ion Battery
Protections
Over charge, over discharge and short circuit protection
Self Testing
Yes
Lightcloud
Operating Temperature
41°F to 122°F (5°C to 500°C)
LED Characteristics
Color Temperature
Field adjustable via dip switch 2700/3000/3500/4000/5000K
Installation
Remote Driver/Junction Box
2-in-1, compatible with both conventional power supply function and emergency power supply function.
Mounting
Recessed
Construction
Shape
Rectangle
Finish
White
Compliance
Listings
UL8750, UL924, CSA C22.2 NO.141
Environment
Suitable for use indoors in dry and damp environments.
RoHS
Mercury and UV free. RoHS-compliant components.
FCC
Complies with Part 15 of the FCC Rules
Other
5-Year, No-Compromise Warranty
RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
