DSK34-4R12940120BNS

Spec Sheet IES File LM79 Instructions Spec Sheet EZ Layout

DSK34-4R12940120BNS

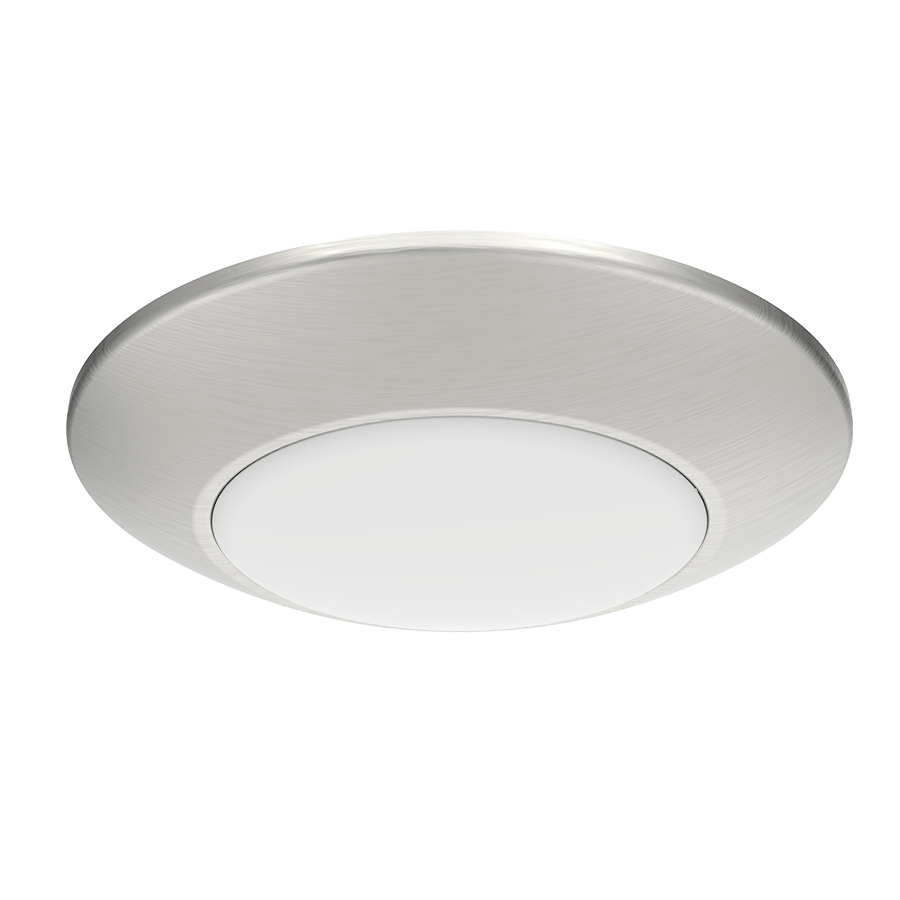

Super low profile backlit LED with driverless design

Stamped aluminum housing

New construction or retrofit applications

Simple and quick installation from below the ceiling

Installs on standard 4" and 6" junction boxes

Can be retrofitted to existing downlight housings with option accessory

Suitable for Damp locations

Dimmable down to 5% on compatible dimmers

5-Year, limited warranty

View Technical Specs

View Price & Availability

Performance

Watts	12W
Color Temp
Lumens	867 lm
Efficacy
Color Accuracy	4000K CRI
L70 Lifespan

Type	Constant Current
120V	0.11A
208V
240V
277V
Input Watts	12W

EZ-Layout

Create Custom Lighting Layout

Dimensions

Weight: 0.4 lbs

Technical Specifications

Performance

Description

The DISK34 is an ultra low profile surface-mount, ideal solution for new construction and retrofit applications. IC rated for direct contact with insulation, air tight, suitable for indoor applications in dry and damp environments. Mounting kit for recessed housing sold separately.

Product Type

Surface & Flush Mounts

Input Wattage

12W

Lumens

750lm

Efficacy

62.5lm/W

L70 Lifespan

50,000-Hour LED lifespan based on IES LM-70 results

Compliance

UL Listed

Suitable for damp locations

UL Classified

Yes

Fixture Rating

Open

IC Rated

Suitable for direct contact with insulation

Electrical

Dimming Driver

TRIAC compatible dimmer with dimming as low as 5%

Power Factor

0.9

Flicker

<30%

Input Voltage

120V

Operating Frequency

60Hz

Construction

Material

Aluminum

Trim Style

Smooth Trim

Shape

Round

Operating Temperature

-22°F (-30°C) to 104°F (40°C )

LED Characteristics

Beam Angle

110°

R9 Value

High color performance with R9 greater than 50

Installation

Mounting

Surface mount

Other

5-Year, No-Compromise Warranty

RAB warrants that our LED products will be free from defects in materials and workmanship for a period of five (5) years from the date of delivery to the end user, including coverage of light output, color stability, driver performance and fixture finish. RAB's warranty is subject to all terms and conditions found at rablighting.com/warranty.
